Resistors / Fixed Resistors / WSL25125L000FEA18
Datasheets
WSL25125L000FEA18 by:

Fixed Resistor, Metal Strip, 2W, 0.005ohm, 0.1V, 1% +/-Tol, 110ppm/Cel, Surface Mount, 2512, CHIP

Part Details for WSL25125L000FEA18 by Vishay Intertechnologies

Results Overview of WSL25125L000FEA18 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

WSL25125L000FEA18 Information

WSL25125L000FEA18 by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for WSL25125L000FEA18

Part # Distributor Description Stock Price Buy
DISTI # 08AJ1778
Newark Res, 0R005, 2W, 2512, Metal Strip, Resistance:0.005Ohm, Product Range:Wsl_18 Series, Resistor Case/Package:2512 [6432 Metric], Power Rating:2W, Resistance Tolerance:± 1%, Resistor Technology:Metal Strip, Product Length:6.35Mm Rohs Compliant: Yes |Vishay WSL25125L000FEA18 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 291
  • 1 $0.6500
$0.6500 Buy Now
DISTI # 11R8201
Newark Res, 0R005, 2W, 2512, Metal Strip, Resistance:0.005Ohm, Product Range:Wsl_18 Series, Resistor Case/Package:2512 [6432 Metric], Power Rating:2W, Resistance Tolerance:± 1%, Resistor Technology:Metal Strip, Product Length:6.35Mm Rohs Compliant: Yes |Vishay WSL25125L000FEA18 RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $0.8450
  • 4,000 $0.7620
  • 6,000 $0.7350
  • 10,000 $0.7070
$0.7070 / $0.8450 Buy Now
DISTI # WSL25125L000FEA18
Avnet Americas SMD Current Sense Resistor, 0.005 ohm, WSL_18 Series, 2512 [6432 Metric], 2 W, ? 1%, Metal Strip - Tape and Reel (Alt: WSL25125L000FEA18) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Reel 32000
  • 2,000 $0.6293
  • 4,000 $0.6175
  • 8,000 $0.6099
  • 12,000 $0.5988
  • 16,000 $0.5812
$0.5812 / $0.6293 Buy Now
DISTI # 08AJ1778
Avnet Americas SMD Current Sense Resistor, 0.005 ohm, WSL_18 Series, 2512 [6432 Metric], 2 W, ? 1%, Metal Strip - Product that comes on tape, but is not reeled (Alt: 08AJ1778) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 1 Days Container: Ammo Pack 291 Partner Stock
  • 1 $0.9720
  • 10 $1.3400
  • 25 $1.2600
  • 50 $1.1800
  • 100 $1.1000
$0.9720 / $1.3400 Buy Now
DISTI # 71-WSL25125L000FEA18
Mouser Electronics Current Sense Resistors - SMD 2watts .005ohms 1% RoHS: Compliant 8822
  • 1 $2.4100
  • 10 $1.5200
  • 25 $1.3500
  • 50 $1.2800
  • 100 $1.1600
  • 250 $1.0000
  • 500 $0.8860
  • 1,000 $0.8190
  • 2,000 $0.6650
$0.6650 / $2.4100 Buy Now
DISTI # V72:2272_07434050
Arrow Electronics Res Metal Strip 2512 0.005 Ohm 1% 2W ±110ppm/°C Sulfur Resistant Pad SMD T/R Automotive RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2224 Container: Cut Strips Americas - 1118
  • 1 $1.1487
  • 10 $0.9639
  • 25 $0.8472
  • 100 $0.8018
  • 250 $0.7472
  • 500 $0.7078
  • 1,000 $0.6494
$0.6494 / $1.1487 Buy Now
Future Electronics WSL-HP Series 2512 1 W 0.005 Ohm ±1% ±110 ppm/°C SMT Power Metal Strip® Resistor RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks Container: Reel 10000
Reel
  • 2,000 $0.1870
  • 4,000 $0.1850
  • 6,000 $0.1840
  • 8,000 $0.1830
  • 10,000 $0.1800
$0.1800 / $0.1870 Buy Now
DISTI # 70815456
Verical Res Metal Strip 2512 0.005 Ohm 1% 2W ±110ppm/°C Sulfur Resistant Pad SMD T/R Automotive RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2224 Americas - 1118
  • 7 $1.1487
$1.1487 Buy Now
DISTI # 66386889
Verical Res Metal Strip 2512 0.005 Ohm 1% 2W ±110ppm/°C Sulfur Resistant Pad SMD T/R Automotive RoHS: Compliant Min Qty: 178 Package Multiple: 1 Date Code: 2226 Americas - 1045
  • 178 $1.2600
$1.2600 Buy Now
Bristol Electronics   2826
RFQ
Quest Components RESISTOR, CURRENT SENSE, METAL STRIP, 2W, 1%, 110PPM, 0.005OHM, SURFACE MOUNT, 2512 1224
  • 1 $1.0000
  • 121 $0.3000
  • 668 $0.2600
$0.2600 / $1.0000 Buy Now
Quest Components RESISTOR, CURRENT SENSE, METAL STRIP, 2W, 1%, 110PPM, 0.005OHM, SURFACE MOUNT, 2512 612
  • 1 $1.9500
  • 52 $0.9750
  • 206 $0.7800
$0.7800 / $1.9500 Buy Now
DISTI # WSL25125L000FEA18
TTI Current Sense Resistors - SMD 2watts .005ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 18000
In Stock
  • 2,000 $0.2900
$0.2900 Buy Now
DISTI # WSL25125L000FEA18.
TTI Current Sense Resistors - SMD 2watts .005ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 10 Package Multiple: 10 Container: Cut Tape Americas - 220
Limited Supply - Call TTI
  • 10 $2.4100
$2.4100 Buy Now
Future Electronics WSL-HP Series 2512 1 W 0.005 Ohm �1% �110 ppm/�C SMT Power Metal Strip� Resistor Min Qty: 2000 Package Multiple: 2000 10000
null
  • 2,000 $0.2900
$0.2900 Buy Now
DISTI # SMC-WSL25125L000FEA18
Sensible Micro Corporation Res 0.005 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1628+ Container: Tape & Reel 3188
  • 100 $0.1462
  • 500 $0.1425
  • 1,000 $0.1350
$0.1350 / $0.1462 RFQ
DISTI # WSL25125L000FEA18
Avnet Abacus SMD Current Sense Resistor 0005 ohm WSL18 Series 2512 6432 Metric 2 W 1 Metal Strip (Alt: WSL25125L000FEA18) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # WSL25125L000FEA18
Avnet Asia SMD Current Sense Resistor, 0.005 ohm, WSL_18 Series, 2512 [6432 Metric], 2 W, ? 1%, Metal Strip (Alt: WSL25125L000FEA18) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days 0
RFQ
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 2000
  • 2,000 $0.2800
  • 4,000 $0.2600
  • 6,000 $0.2300
$0.2300 / $0.2800 Buy Now
Vyrian Resistors 17387
RFQ

Part Details for WSL25125L000FEA18

WSL25125L000FEA18 CAD Models

  • Part Symbol

    Part Symbol

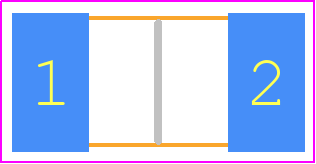

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

WSL25125L000FEA18 Part Data Attributes

Parametric Data
WSL25125L000FEA18 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
WSL25125L000FEA18 Vishay Intertechnologies Fixed Resistor, Metal Strip, 2W, 0.005ohm, 0.1V, 1% +/-Tol, 110ppm/Cel, Surface Mount, 2512, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 12 Weeks, 1 Day
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR
Construction Rectangular
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 170 °C
Operating Temperature-Min -65 °C
Package Height 0.635 mm
Package Length 6.35 mm
Package Style SMT
Package Width 3.18 mm
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Rated Power Dissipation (P) 2 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 0.005 Ω
Resistor Type FIXED RESISTOR
Size Code 2512
Surface Mount YES
Technology METAL STRIP
Temperature Coefficient 110 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 0.1 V

WSL25125L000FEA18 Related Parts

WSL25125L000FEA18 Frequently Asked Questions (FAQ)

  • The recommended land pattern for WSL25125L000FEA18 can be found in the Vishay Intertechnologies' application note AN42172, which provides guidelines for PCB layout and assembly.

  • To ensure proper thermal management, it is recommended to provide a thermal pad on the PCB, and to use a thermal interface material (TIM) between the device and the heat sink. The thermal resistance of the device is specified in the datasheet.

  • The maximum operating temperature range for WSL25125L000FEA18 is -55°C to 150°C, as specified in the datasheet. However, it's recommended to derate the power dissipation accordingly to ensure reliable operation.

  • Yes, WSL25125L000FEA18 is suitable for high-frequency applications up to several hundred MHz. However, it's essential to consider the device's parasitic inductance and capacitance, and to use proper PCB layout and decoupling techniques to minimize signal degradation.

  • To ensure reliability in harsh environments, it's recommended to follow proper PCB design and assembly guidelines, and to consider the device's moisture sensitivity level (MSL) rating. Additionally, conformal coating and potting may be necessary to protect the device from environmental stresses.
