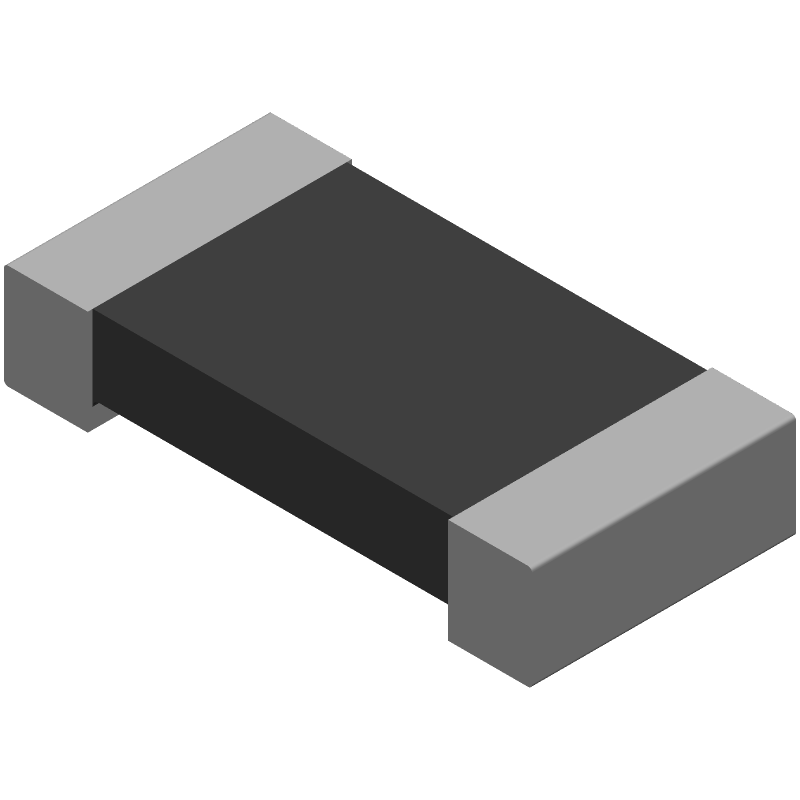

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WSL1206R0330FEB by Vishay Intertechnologies
Results Overview of WSL1206R0330FEB by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
WSL1206R0330FEB Information
WSL1206R0330FEB by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSL1206R0330FEB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSL1206R0330FEB
|
Avnet Americas | WSL-1206 .033 1% EB e3 - Tape and Reel (Alt: WSL1206R0330FEB) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.3533 / $0.4395 | Buy Now |
|
DISTI #
71-WSL1206-0.033-E3
|
Mouser Electronics | Current Sense Resistors - SMD 1/4watt .033ohms 1% RoHS: Compliant | 9167 |
|
$0.3680 / $1.5700 | Buy Now |
|
DISTI #
WSL1206R0330FEB
|
TTI | Current Sense Resistors - SMD 1/4watt .033ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel |
Americas - 2000 In Stock |
|
$0.3900 | Buy Now |
|
DISTI #
WSL1206R0330FEB
|
Avnet Abacus | WSL1206 033 1 EB e3 (Alt: WSL1206R0330FEB) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WSL1206R0330FEB
WSL1206R0330FEB CAD Models
WSL1206R0330FEB Part Data Attributes
|
|
WSL1206R0330FEB
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSL1206R0330FEB
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 0.25W, 0.033ohm, 0.0908V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 1206, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.635 mm | |
| Package Length | 3.2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.033 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 75 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.0908 V |
WSL1206R0330FEB Frequently Asked Questions (FAQ)
-
The recommended land pattern for WSL1206R0330FEB is a rectangular pad with a size of 1.3 mm x 0.8 mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.
-
Yes, WSL1206R0330FEB is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating and to follow the recommended storage and handling procedures.
-
WSL1206R0330FEB is a static-sensitive device, and proper handling and storage procedures must be followed to prevent damage. This includes using anti-static packaging, wrist straps, and mats, as well as avoiding direct contact with the component's pins.
-
The recommended soldering profile for WSL1206R0330FEB is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component and to ensure reliable operation.
-
WSL1206R0330FEB is rated for operation in a humid environment, but it's essential to follow the recommended storage and handling procedures to prevent moisture absorption. This includes storing the component in a dry, cool place, and using a desiccant package when necessary.
