Resistors / Fixed Resistors / WSL12064L000FEB
Datasheets
WSL12064L000FEB by:

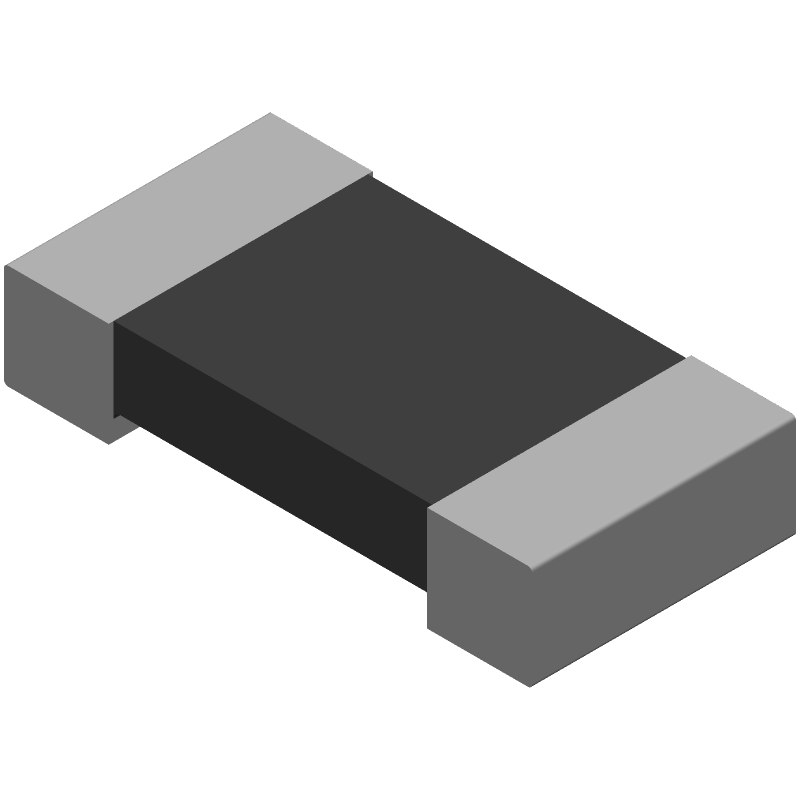

Fixed Resistor, Metal Strip, 0.25W, 0.004ohm, 0.0316V, 1% +/-Tol, 150ppm/Cel, Surface Mount, 1206, CHIP

Part Details for WSL12064L000FEB by Vishay Intertechnologies

Results Overview of WSL12064L000FEB by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

WSL12064L000FEB Information

WSL12064L000FEB by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for WSL12064L000FEB

Part # Distributor Description Stock Price Buy
DISTI # 72M6561
Newark Resistor, Cur Sense, 0.004 Ohm, 250Mw, 1%, Filter Terminals:Surface Mount, No. Of Pins:2, Operating Temperature Max:170°C, Operating Temperature Min:-65°C, Operating Temperature Range:-65°C To +170°C, Package/Case:1206, Series:Wsl Rohs Compliant: Yes |Vishay WSL12064L000FEB RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,000 $0.8160
  • 2,000 $0.7410
  • 4,000 $0.6650
  • 6,000 $0.6420
  • 10,000 $0.6270
$0.6270 / $0.8160 Buy Now
DISTI # 72M6560
Newark Current Sense Resistor, 0.004 Ohm, 250Mw, 1%, Resistance:0.004Ohm, Product Range:Wsl Series, Resistor Case/Package:1206 [3216 Metric], Power Rating:250Mw, Resistance Tolerance:± 1%, Resistor Technology:Metal Strip Rohs Compliant: Yes |Vishay WSL12064L000FEB RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 50 $0.9370
$0.9370 Buy Now
DISTI # WSL12064L000FEB
Avnet Americas WSL-1206 .004 1% EB e3 - Tape and Reel (Alt: WSL12064L000FEB) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.6006
  • 2,000 $0.4456
  • 4,000 $0.3938
  • 6,000 $0.3867
  • 8,000 $0.3753
$0.3753 / $0.6006 Buy Now
DISTI # 71-WSL12064L000FEB
Mouser Electronics Current Sense Resistors - SMD 1/4watt .004ohms 1% RoHS: Compliant 11639
  • 1 $1.7000
  • 10 $1.1500
  • 25 $1.0300
  • 50 $0.9370
  • 100 $0.8110
  • 250 $0.6840
  • 500 $0.5770
  • 1,000 $0.5510
  • 2,000 $0.5150
$0.5150 / $1.7000 Buy Now
Future Electronics Res Metal Strip 1206 0.004 Ohm 1% 1/4W 150ppm/C Molded SMD SMD T/R RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 7 Weeks Container: Reel 19000
Reel
  • 1,000 $0.6000
$0.6000 Buy Now
DISTI # WSL12064L000FEB
TTI Current Sense Resistors - SMD 1/4watt .004ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel Americas - 0
  • 1,000 $0.5450
  • 2,000 $0.4500
  • 3,000 $0.4410
  • 5,000 $0.4210
  • 8,000 $0.3860
$0.3860 / $0.5450 Buy Now
Future Electronics Res Metal Strip 1206 0.004 Ohm 1% 1/4W 150ppm/C Molded SMD SMD T/R Min Qty: 1000 Package Multiple: 1000 19000
null
  • 1,000 $0.6000
$0.6000 Buy Now

Part Details for WSL12064L000FEB

WSL12064L000FEB Part Data Attributes

Parametric Data
WSL12064L000FEB Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
WSL12064L000FEB Vishay Intertechnologies Fixed Resistor, Metal Strip, 0.25W, 0.004ohm, 0.0316V, 1% +/-Tol, 150ppm/Cel, Surface Mount, 1206, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 7 Weeks
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 170 °C
Operating Temperature-Min -65 °C
Package Height 0.635 mm
Package Length 3.2 mm
Package Style SMT
Package Width 1.6 mm
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 0.004 Ω
Resistor Type FIXED RESISTOR
Size Code 1206
Surface Mount YES
Technology METAL STRIP
Temperature Coefficient 150 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 0.0316 V

WSL12064L000FEB Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for WSL12064L000FEB is 260°C (500°F) for a maximum of 10 seconds.

  • Yes, WSL12064L000FEB is resistant to sulfur contamination due to its sulfur-resistant terminal material.

  • Yes, WSL12064L000FEB is suitable for high-frequency applications up to 1 GHz due to its low inductance and high-frequency stability.

  • The MSL of WSL12064L000FEB is 1, which means it can withstand normal humidity and temperature conditions without special handling or storage requirements.

  • Yes, WSL12064L000FEB is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
