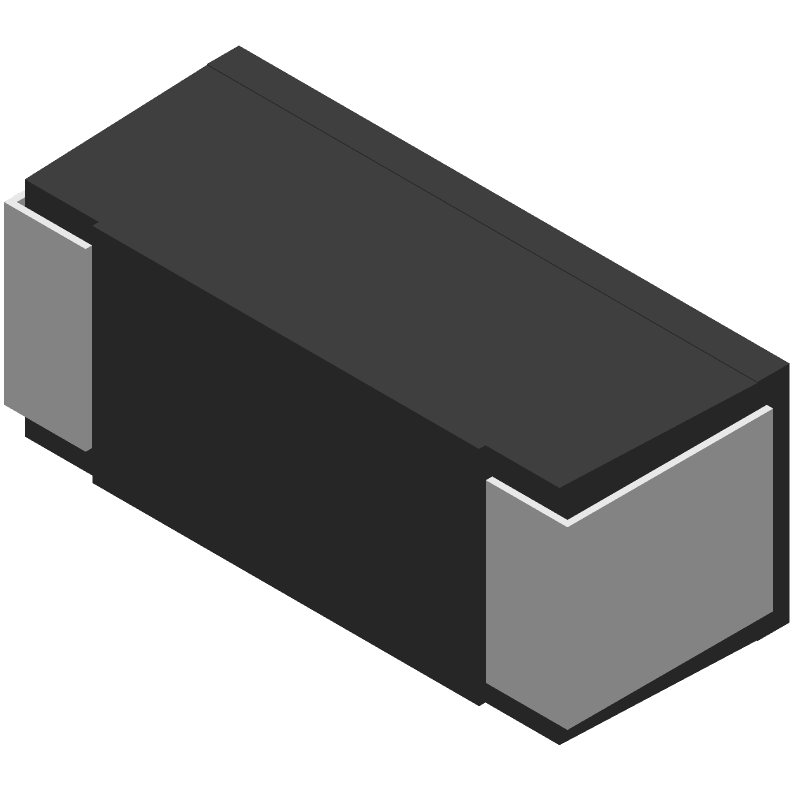

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WSC6927R4000FTA by Vishay Intertechnologies
Results Overview of WSC6927R4000FTA by Vishay Intertechnologies
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
WSC6927R4000FTA Information
WSC6927R4000FTA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSC6927R4000FTA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSC6927R4000FTA
|
Avnet Americas | WSC6927 .4 1% R86 - Tape and Reel (Alt: WSC6927R4000FTA) RoHS: Not Compliant Min Qty: 725 Package Multiple: 725 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$2.5920 / $3.0471 | Buy Now |
|
DISTI #
WSC6927R4000FTA
|
TTI | Wirewound Resistors - SMD .4 OHM 1% 3W 90PPM Min Qty: 725 Package Multiple: 725 Container: Reel | Americas - 0 |
|
$2.6800 / $3.0500 | Buy Now |
Part Details for WSC6927R4000FTA
WSC6927R4000FTA CAD Models
WSC6927R4000FTA Part Data Attributes
|
|
WSC6927R4000FTA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSC6927R4000FTA
Vishay Intertechnologies
Fixed Resistor, Wire Wound, 3W, 0.4ohm, 1.0954V, 1% +/-Tol, 90ppm/Cel, Surface Mount, 6927, CHIP
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e0 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 7.11 mm | |
| Package Length | 17.53 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 6.98 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 13 INCH | |
| Rated Power Dissipation (P) | 3 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.4 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 6927 | |
| Surface Mount | YES | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 90 ppm/°C | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 1.0954 V |
