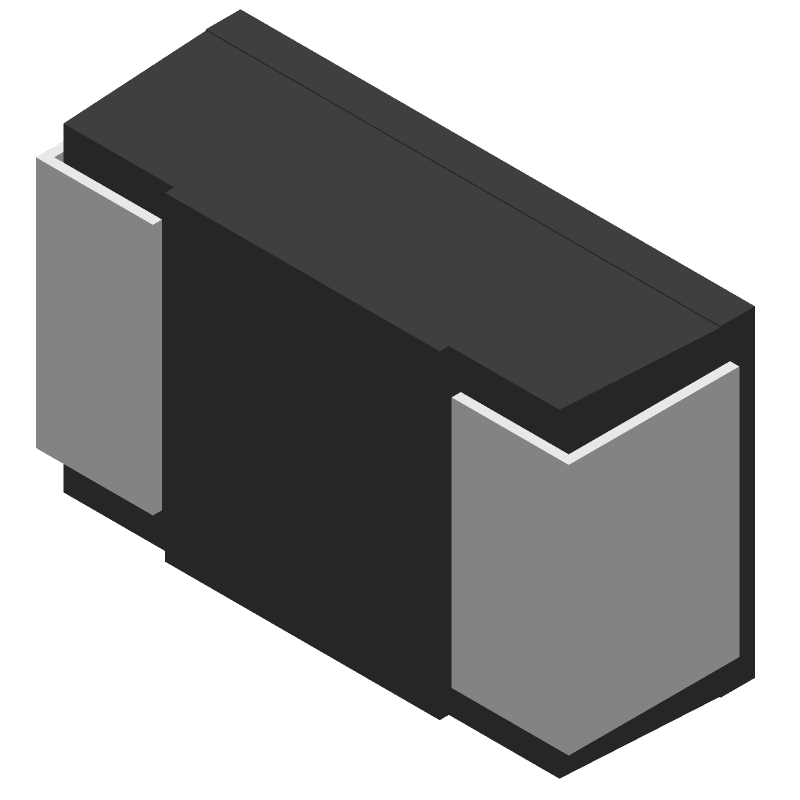

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WSC45278R200FEA by Vishay Intertechnologies
Results Overview of WSC45278R200FEA by Vishay Intertechnologies
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
WSC45278R200FEA Information
WSC45278R200FEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSC45278R200FEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSC45278R200FEA
|
Avnet Americas | SMD Chip Resistor, 8.2 Ohm, ? 1%, 2 W, 4527 [11470 Metric], Wirewound, Precision Power - Tape and Reel (Alt: WSC45278R200FEA) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 26 Weeks, 0 Days Container: Reel | 0 |
|
$0.6470 / $0.8079 | Buy Now |
|
DISTI #
71-WSC45278R200FEA
|
Mouser Electronics | Wirewound Resistors - SMD WSC4527 8.2 1% EA e3 RoHS: Compliant | 0 |
|
$0.5670 / $0.6060 | Order Now |
|
DISTI #
WSC45278R200FEA
|
Avnet Abacus | SMD Chip Resistor 82 Ohm 1 2 W 4527 11470 Metric Wirewound Precision Power (Alt: WSC45278R200FEA) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 29 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WSC45278R200FEA
WSC45278R200FEA CAD Models
WSC45278R200FEA Part Data Attributes
|
|
WSC45278R200FEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSC45278R200FEA
Vishay Intertechnologies
Fixed Resistor, Wire Wound, 2W, 8.2ohm, 4.0497V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 4527, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 4.24 mm | |
| Package Length | 11.56 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 6.98 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 13 INCH | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 8.2 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 4527 | |
| Surface Mount | YES | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 4.0497 V |
WSC45278R200FEA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for WSC45278R200FEA is 260°C (500°F) for 10 seconds, with a peak temperature of 240°C (464°F) for 5 seconds.
-
Yes, WSC45278R200FEA is resistant to sulfurization due to its passivation layer, which protects the resistor from sulfur-containing atmospheres.
-
Yes, WSC45278R200FEA is suitable for high-frequency applications up to 1 GHz due to its low inductance and capacitance values.
-
The MSL of WSC45278R200FEA is 1, which means it can withstand normal humidity levels and does not require special handling or storage.
-
Yes, WSC45278R200FEA is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
