WSC452768R00JEA Information
WSC452768R00JEA by Vishay Intertechnologies is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSC452768R00JEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSC452768R00JEA
|
Avnet Americas | SMD Chip Resistor, 68 Ohm, ? 5%, 2 W, 4527 [11470 Metric], Wirewound, Precision Power - Tape and Reel (Alt: WSC452768R00JEA) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 26 Weeks, 0 Days Container: Reel | 0 |
|
$1.2047 / $1.2298 | Buy Now |
|
DISTI #
71-WSC452768R00JEA
|
Mouser Electronics | Wirewound Resistors - SMD WSC4527 68 5% EA e3 RoHS: Compliant | 0 |
|
$1.0000 | Order Now |
|
DISTI #
WSC452768R00JEA
|
Avnet Abacus | SMD Chip Resistor 68 Ohm 5 2 W 4527 11470 Metric Wirewound Precision Power (Alt: WSC452768R00JEA) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 29 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WSC452768R00JEA

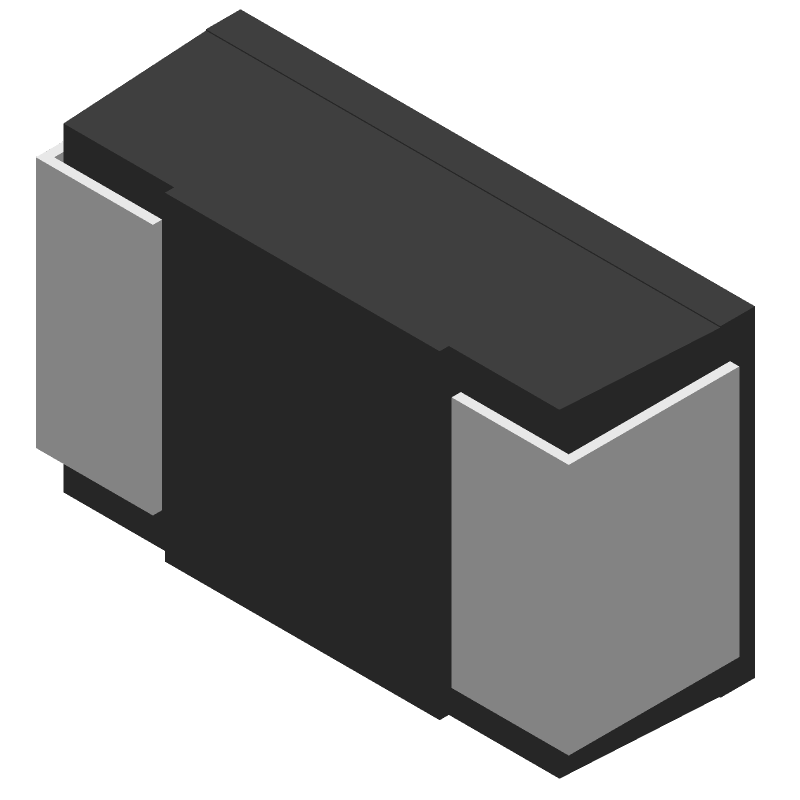

WSC452768R00JEA CAD Models
WSC452768R00JEA Part Data Attributes
|
|
WSC452768R00JEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSC452768R00JEA
Vishay Intertechnologies
Fixed Resistor, Wire Wound, 2W, 68ohm, 11.6619V, 5% +/-Tol, 20ppm/Cel, Surface Mount, 4527, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 4.24 mm | |
| Package Length | 11.56 mm | |
| Package Style | SMT | |
| Package Width | 6.98 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 13 INCH | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 68 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 4527 | |
| Surface Mount | YES | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 20 ppm/°C | |
| Terminal Finish | MATTE TIN | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 11.66 V |
