WSC45275R000FEB Information
WSC45275R000FEB by Vishay Intertechnologies is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSC45275R000FEB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSC45275R000FEB
|
Avnet Americas | - Tape and Reel (Alt: WSC45275R000FEB) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days Container: Reel | 0 |
|
$0.3984 / $0.5567 | Buy Now |
|
DISTI #
71-WSC4527-5-E3
|
Mouser Electronics | Wirewound Resistors - SMD 2watts 5ohms 1% RoHS: Compliant | 2413 |
|
$0.4290 / $1.1800 | Buy Now |
|
DISTI #
WSC45275R000FEB
|
TTI | Wirewound Resistors - SMD 2watts 5ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.4150 / $0.4430 | Buy Now |
Part Details for WSC45275R000FEB

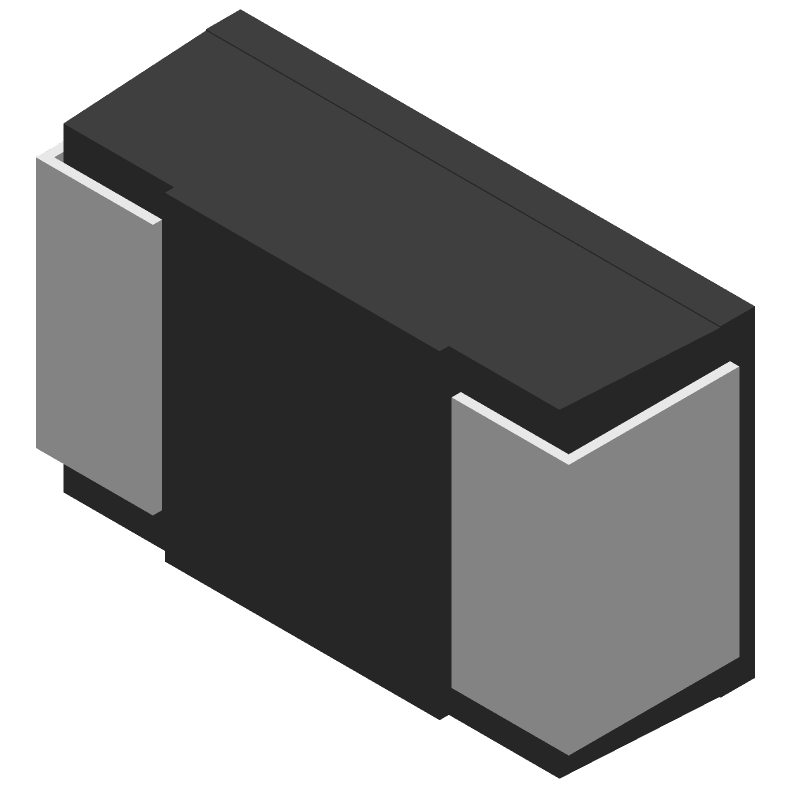

WSC45275R000FEB CAD Models
WSC45275R000FEB Part Data Attributes
|
|
WSC45275R000FEB
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSC45275R000FEB
Vishay Intertechnologies
Fixed Resistor, Wire Wound, 2W, 5ohm, 3.1623V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 4527, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 4.24 mm | |
| Package Length | 11.56 mm | |
| Package Style | SMT | |
| Package Width | 6.98 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 13 INCH | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 5 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 4527 | |
| Surface Mount | YES | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 3.1623 V |
WSC45275R000FEB Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for WSC45275R000FEB is 260°C (500°F) for 10 seconds, with a peak temperature of 280°C (536°F) for 5 seconds.
-
Yes, WSC45275R000FEB is resistant to sulfurization due to its passivation layer, which protects the resistor from sulfur-containing atmospheres.
-
Yes, WSC45275R000FEB is suitable for high-frequency applications up to 50 GHz due to its thin-film construction and low inductance.
-
The power rating of WSC45275R000FEB decreases with increasing temperature. At 125°C, the power rating is 75% of the rated power, and at 150°C, it is 50% of the rated power.
-
Yes, WSC45275R000FEB is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
