WSC4527560R0FEA Information
WSC4527560R0FEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSC4527560R0FEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSC4527560R0FEA
|
Avnet Americas | SMD Chip Resistor, 560 Ohm, ? 1%, 2 W, 4527 [11470 Metric], Wirewound, Precision Power - Tape and Reel (Alt: WSC4527560R0FEA) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 26 Weeks, 0 Days Container: Reel | 0 |
|
$0.8481 / $1.1668 | Buy Now |
|
DISTI #
71-WSC4527560R0FEA
|
Mouser Electronics | Wirewound Resistors - SMD WSC4527 560 1% EA e3 RoHS: Compliant | 0 |
|
$1.1800 | Order Now |
|
DISTI #
WSC4527560R0FEA
|
Avnet Abacus | SMD Chip Resistor 560 Ohm 1 2 W 4527 11470 Metric Wirewound Precision Power (Alt: WSC4527560R0FEA) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 29 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WSC4527560R0FEA

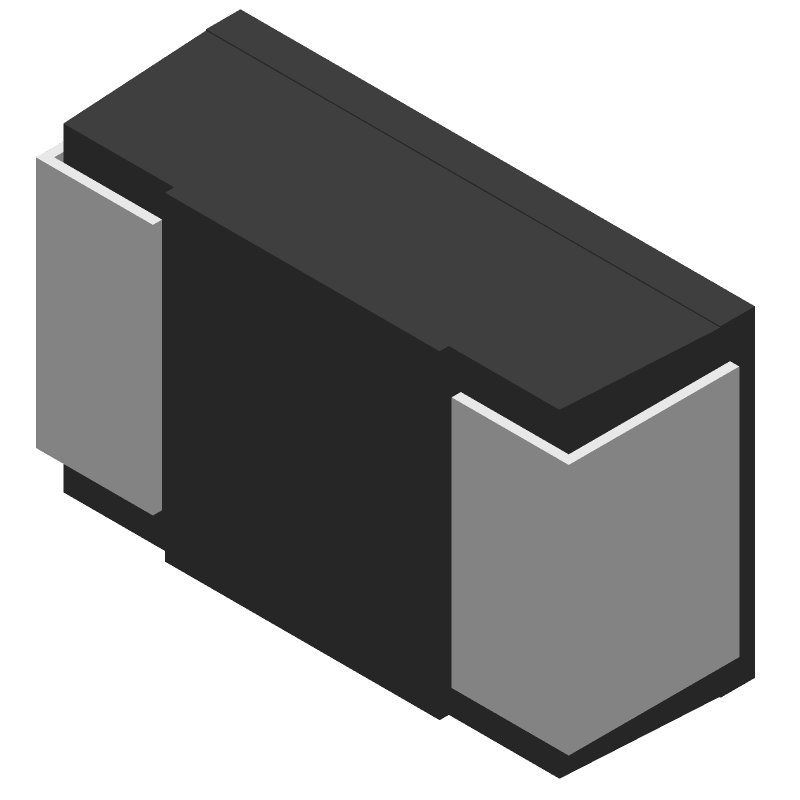

WSC4527560R0FEA CAD Models
WSC4527560R0FEA Part Data Attributes
|
|
WSC4527560R0FEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSC4527560R0FEA
Vishay Intertechnologies
Fixed Resistor, Wire Wound, 2W, 560ohm, 33.4664V, 1% +/-Tol, 20ppm/Cel, Surface Mount, 4527, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 4.24 mm | |
| Package Length | 11.56 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 6.98 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 13 INCH | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 560 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 4527 | |
| Surface Mount | YES | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 20 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 33.4664 V |
WSC4527560R0FEA Frequently Asked Questions (FAQ)
-
The thermal resistance of the WSC4527560R0FEA is typically around 250°C/W, but it's recommended to consult the manufacturer's documentation or contact Vishay Intertechnologies directly for the most up-to-date and accurate information.
-
The WSC4527560R0FEA is a thick-film resistor, which may not be the best choice for high-frequency applications due to its limited frequency response. For high-frequency applications, thin-film resistors or specialized high-frequency resistors may be more suitable.
-
The WSC4527560R0FEA has a maximum operating temperature of 155°C, but it's recommended to derate the power rating at higher temperatures to ensure reliability and prevent overheating. Consult the datasheet and manufacturer's guidelines for temperature derating.
-
The WSC4527560R0FEA has an MSL rating of 1, which means it can withstand normal humidity levels without special handling or storage precautions.
-
Yes, the WSC4527560R0FEA is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in most modern electronic devices.
