Part Details for WSC45274K700FEA by Vishay Intertechnologies
Results Overview of WSC45274K700FEA by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
WSC45274K700FEA Information
WSC45274K700FEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSC45274K700FEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41K9274
|
Newark | Resistor, Wirewound, 4.7 Kohm, 2 W, 1%, Full Reel, Resistance:4.7Kohm, Resistance Tolerance:± 1%, Power Rating:2W, Resistor Case/Package:4527 [11470 Metric], Resistor Technology:Wirewound, Resistor Type:High Power, Voltage Rating:-Rohs Compliant: Yes |Vishay WSC45274K700FEA RoHS: Compliant Min Qty: 1200 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.1200 / $1.4200 | Buy Now |
|
DISTI #
65K4030
|
Newark | Resistor, Ww, 4.7Kohm, 2W, Smd, 1%, Resistance:4.7Kohm, Resistance Tolerance:± 1%, Power Rating:2W, Resistor Case/Package:4527 [11470 Metric], Resistor Technology:Wirewound, Resistor Type:High Power, Product Range:Wsc Series Rohs Compliant: Yes |Vishay WSC45274K700FEA RoHS: Compliant Min Qty: 1200 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$1.6300 | Buy Now |
|
DISTI #
WSC45274K700FEA
|
Avnet Americas | SMD Chip Resistor, 4.7 kOhm, ? 1%, 2 W, 4527 [11470 Metric], Wirewound, Precision Power - Tape and Reel (Alt: WSC45274K700FEA) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$1.1232 / $1.1466 | Buy Now |
|
DISTI #
71-WSC45274K700FEA
|
Mouser Electronics | Wirewound Resistors - SMD WSC4527 4.7K 1% EA e3 RoHS: Compliant | 0 |
|
$1.1300 / $1.1800 | Order Now |
|
DISTI #
WSC45274K700FEA
|
Avnet Abacus | SMD Chip Resistor 47 kOhm 1 2 W 4527 11470 Metric Wirewound Precision Power (Alt: WSC45274K700FEA) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 14 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WSC45274K700FEA

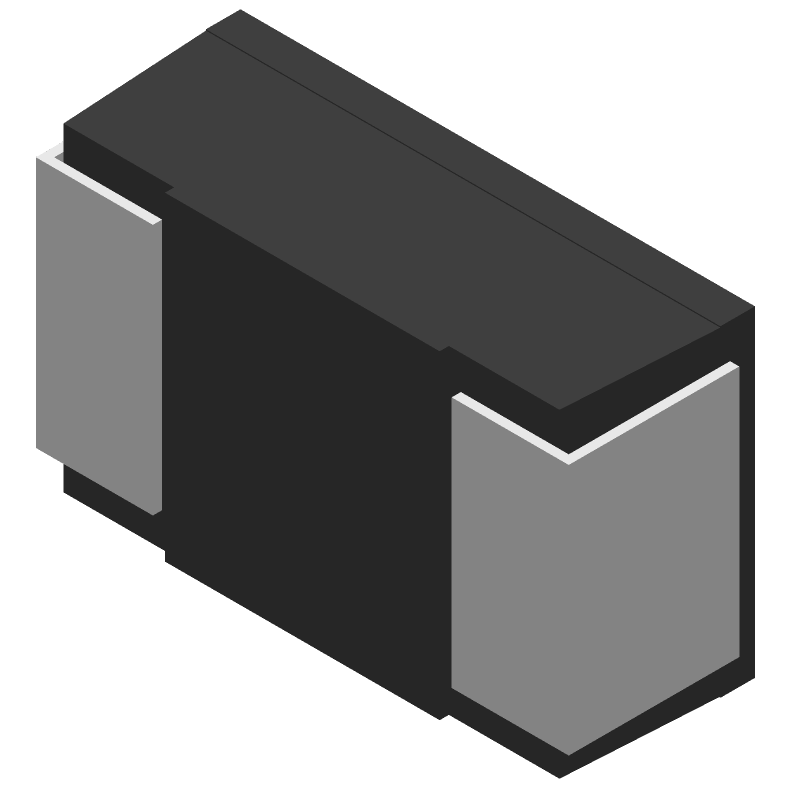

WSC45274K700FEA CAD Models
WSC45274K700FEA Part Data Attributes
|
|
WSC45274K700FEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSC45274K700FEA
Vishay Intertechnologies
Fixed Resistor, Wire Wound, 2W, 4700ohm, 96.9536V, 1% +/-Tol, 20ppm/Cel, Surface Mount, 4527, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 4.24 mm | |
| Package Length | 11.56 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 6.98 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 13 INCH | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 4700 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 4527 | |
| Surface Mount | YES | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 20 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 96.9536 V |
