WSC452747R00FEB Information
WSC452747R00FEB by Vishay Intertechnologies is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSC452747R00FEB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSC452747R00FEB
|
Avnet Americas | - Tape and Reel (Alt: WSC452747R00FEB) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days Container: Reel | 0 |
|
$0.3923 / $0.5567 | Buy Now |
|
DISTI #
71-WSC452747R00FEB
|
Mouser Electronics | Wirewound Resistors - SMD 47ohms 2watts 1% RoHS: Compliant | 707 |
|
$0.5250 / $2.2500 | Buy Now |
|
DISTI #
WSC452747R00FEB
|
TTI | Wirewound Resistors - SMD 47ohms 2watts 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel |
Americas - 1000 In Stock |
|
$0.1670 / $0.2020 | Buy Now |
|
DISTI #
WSC452747R00FEB
|
TTI | Wirewound Resistors - SMD 47ohms 2watts 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel |
Americas - 1000 In Stock |
|
$0.1670 / $0.2020 | Buy Now |
Part Details for WSC452747R00FEB

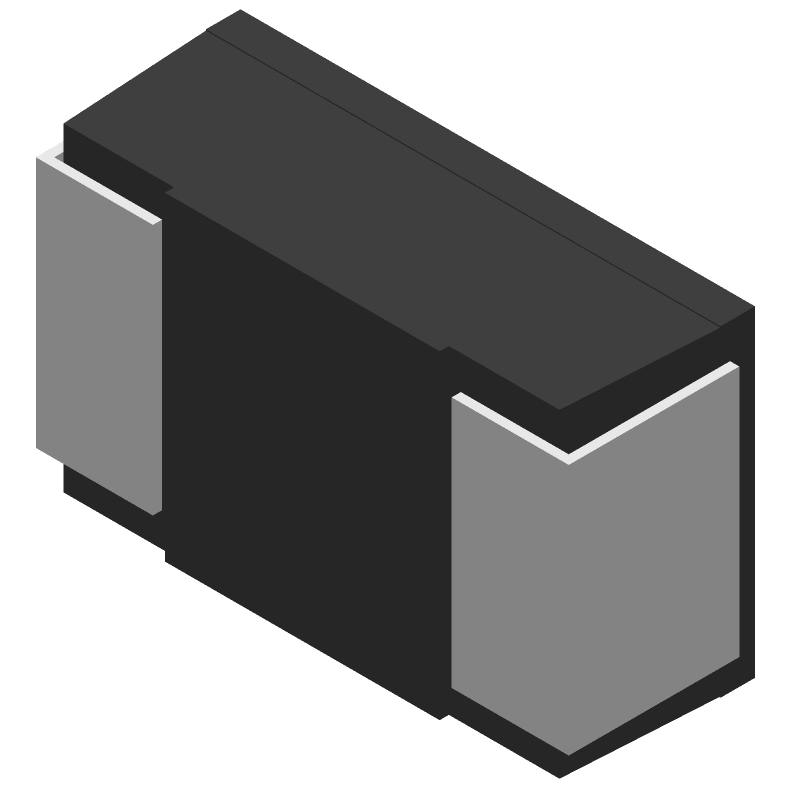

WSC452747R00FEB CAD Models
WSC452747R00FEB Part Data Attributes
|
|
WSC452747R00FEB
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSC452747R00FEB
Vishay Intertechnologies
Fixed Resistor, Wire Wound,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.80 | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 4.24 mm | |
| Package Length | 11.56 mm | |
| Package Style | SMT | |
| Package Width | 6.98 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 13 INCH | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 47 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 4527 | |
| Surface Mount | YES | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 20 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 9.6954 V |
WSC452747R00FEB Frequently Asked Questions (FAQ)
-
The thermal resistance (Rth) of the WSC452747R00FEB is 250°C/W, which is not explicitly stated in the datasheet but can be found in Vishay's application notes or by contacting their support team.
-
While the datasheet doesn't provide explicit information on high-frequency performance, the WSC452747R00FEB is a wirewound resistor, which generally has a self-resonant frequency in the range of 10-100 MHz. It may not be the best choice for very high-frequency applications (>100 MHz). For high-frequency applications, consider using a thin-film or thick-film resistor instead.
-
The WSC452747R00FEB has a maximum operating temperature of 250°C, but its power rating derates above 150°C. For high-temperature applications, consider using a resistor with a higher temperature rating, such as Vishay's WSL series.
-
Vishay recommends a soldering profile with a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s. This information can be found in Vishay's soldering guidelines document.
-
Yes, the WSC452747R00FEB is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive. This information can be found in the datasheet or on Vishay's website.
