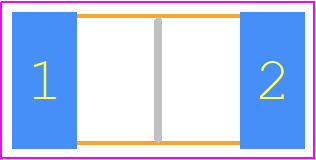

Footprint
-

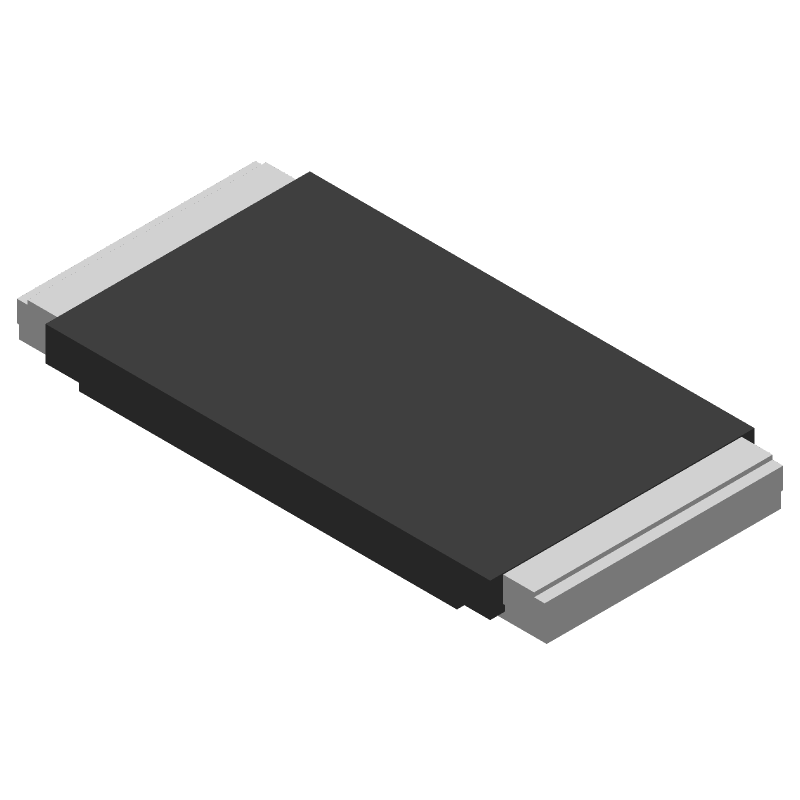

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WFMB2512R4000FEA by Vishay Intertechnologies
Results Overview of WFMB2512R4000FEA by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Financial Technology (Fintech)
Healthcare
WFMB2512R4000FEA Information
WFMB2512R4000FEA by Vishay Intertechnologies is a Metal Strip Resistor.
Metal Strip Resistor are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WFMB2512R4000FEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98AC4580
|
Newark | Res, 0R4, 3W, 2512, Metal Plate, Resistance:0.4Ohm, Product Range:Wfm Series, Resistor Case/Package:2512 [6432 Metric], Power Rating:3W, Resistance Tolerance:± 1%, Resistor Technology:Metal Plate, Temperature Coefficient:± 50Ppm/°Crohs Compliant: Yes |Vishay WFMB2512R4000FEA RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4800 / $0.5740 | Buy Now |
|
DISTI #
01AH9858
|
Newark | Res, 0R4, 3W, 2512, Metal Plate, Resistance:0.4Ohm, Product Range:Wfm Series, Resistor Case/Package:2512 [6432 Metric], Power Rating:3W, Resistance Tolerance:± 1%, Resistor Technology:Metal Plate, Temperature Coefficient:± 50Ppm/°Crohs Compliant: Yes |Vishay WFMB2512R4000FEA RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.6980 | Buy Now |
|
DISTI #
WFMB2512R4000FEA
|
Avnet Americas | WFMB2512 .4 1% NICR EA e3 - Tape and Reel (Alt: WFMB2512R4000FEA) RoHS: Not Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 35 Weeks, 6 Days Container: Reel | 6000 |
|
$0.4608 / $0.7549 | Buy Now |
|
DISTI #
71-WFMB2512R4000FEA
|
Mouser Electronics | Current Sense Resistors - SMD 3watts .4ohms 1% B =NiCrAl High Power RoHS: Compliant | 0 |
|
$0.7500 / $2.0500 | Order Now |
|
DISTI #
WFMB2512R4000FEA
|
TTI | Current Sense Resistors - SMD 3watts .4ohms 1% B =NiCrAl High Power RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.8400 / $0.8900 | Buy Now |
|
DISTI #
SMC-WFMB2512R4000FEA
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 149622 |
|
RFQ | |
|
DISTI #
WFMB2512R4000FEA
|
Avnet Abacus | WFMB2512 4 1 NICR EA e3 - Tape and Reel (Alt: WFMB2512R4000FEA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 83 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for WFMB2512R4000FEA
WFMB2512R4000FEA CAD Models
WFMB2512R4000FEA Part Data Attributes
|
|
WFMB2512R4000FEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WFMB2512R4000FEA
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 4W, 0.4ohm, 1.2649V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2512, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 35 Weeks, 6 Days | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.5 mm | |
| Package Length | 6.35 mm | |
| Package Style | SMT | |
| Package Width | 3.18 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Rated Power Dissipation (P) | 4 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.4 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 1.2649 V |
WFMB2512R4000FEA Frequently Asked Questions (FAQ)
-
The recommended land pattern for WFMB2512R4000FEA is a rectangular pad with a size of 2.5 mm x 1.25 mm, with a non-solder mask defined (NSMD) pad shape.
-
To handle thermal management, ensure good thermal conductivity between the device and the PCB by using a thermal interface material (TIM) and a heat sink if necessary. Also, ensure good airflow around the device.
-
The maximum operating temperature range for WFMB2512R4000FEA is -55°C to 150°C, with a storage temperature range of -55°C to 180°C.
-
Yes, WFMB2512R4000FEA is suitable for high-reliability applications due to its high-quality materials and manufacturing process, which ensure a low failure rate and high performance over time.
-
To ensure reliability in a humid environment, apply a conformal coating to the device and PCB, and ensure good sealing of the device package. Also, follow proper handling and storage procedures to prevent moisture absorption.
