WFMB2512R0330FEA Information
WFMB2512R0330FEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WFMB2512R0330FEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
32AH7134
|
Newark | Res, 0R033, 3W, 2512, Metal Plate, Resistance:0.033Ohm, Product Range:Wfm Series, Resistor Case Style:2512 [6432 Metric], Power Rating:3W, Resistance Tolerance:± 1%, Resistor Element Material:Metal Plate, Temperature Coefficient:± Rohs Compliant: Yes |Vishay WFMB2512R0330FEA RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.6080 / $1.8600 | Buy Now |
|
DISTI #
98AC3998
|
Newark | Res, 0R033, 3W, 2512, Metal Plate, Resistance:0.033Ohm, Product Range:Wfm Series, Resistor Case/Package:2512 [6432 Metric], Power Rating:3W, Resistance Tolerance:± 1%, Resistor Technology:Metal Plate, Product Length:6.35Mm Rohs Compliant: Yes |Vishay WFMB2512R0330FEA RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
WFMB2512R0330FEA
|
Avnet Americas | WFMB2512 .033 1% NICR EA e3 - Tape and Reel (Alt: WFMB2512R0330FEA) RoHS: Not Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.4769 / $0.7549 | Buy Now |
|
DISTI #
71-WFMB2512R0330FEA
|
Mouser Electronics | Current Sense Resistors - SMD 3watts .033ohms 1% B =NiCrAl High Power RoHS: Compliant | 3450 |
|
$0.5800 / $1.8600 | Buy Now |
|
DISTI #
88075557
|
Verical | Combine High Power and Wide Resistance Range for Better Accuracy. Devices Feature High 3 W and 4 W Power Ratings and Resistance Range from 10 mΩ to 500 mΩ RoHS: Compliant Min Qty: 40 Package Multiple: 1 | Americas - 2000 |
|
$0.8550 / $2.8500 | Buy Now |
|
DISTI #
WFMB2512R0330FEA
|
TTI | Current Sense Resistors - SMD 3watts .033ohms 1% B =NiCrAl High Power RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.8900 | Buy Now |
|
DISTI #
WFMB2512R0330FEA
|
Avnet Abacus | WFMB2512 033 1 NICR EA e3 - Tape and Reel (Alt: WFMB2512R0330FEA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 83 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
DISTI #
WFMB2512R0330FEA
|
Chip One Stop | Passives RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2000 |
|
$0.8340 / $2.8500 | Buy Now |
|
|
Vyrian | Resistors | 44 |
|
RFQ |
Part Details for WFMB2512R0330FEA

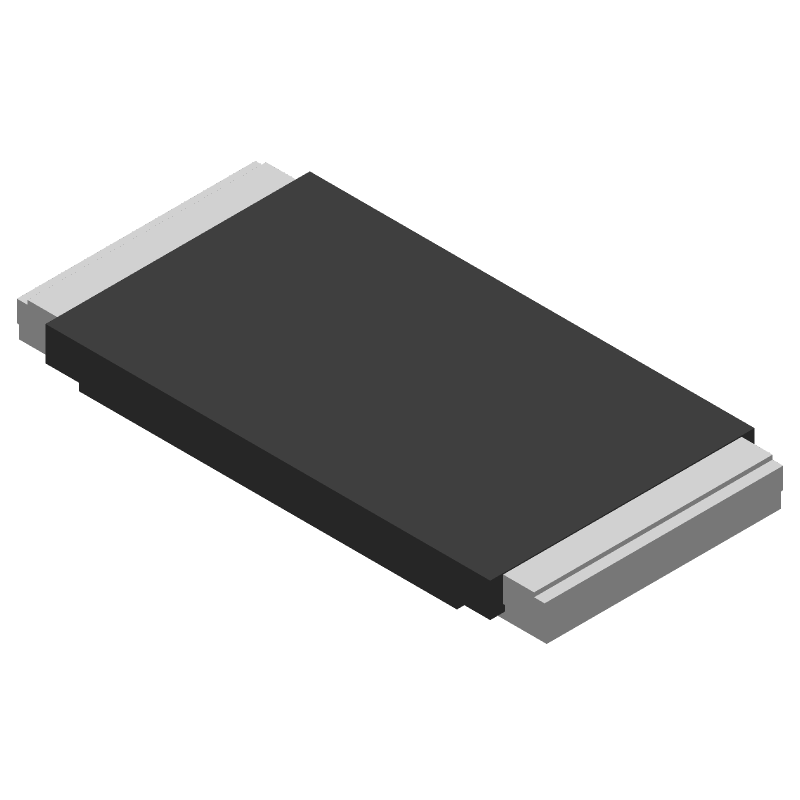

WFMB2512R0330FEA CAD Models
WFMB2512R0330FEA Part Data Attributes
|
|
WFMB2512R0330FEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WFMB2512R0330FEA
Vishay Intertechnologies
Fixed Resistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.5 mm | |
| Package Length | 6.35 mm | |
| Package Style | SMT | |
| Package Width | 3.18 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Rated Power Dissipation (P) | 4 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.033 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.3633 V |
