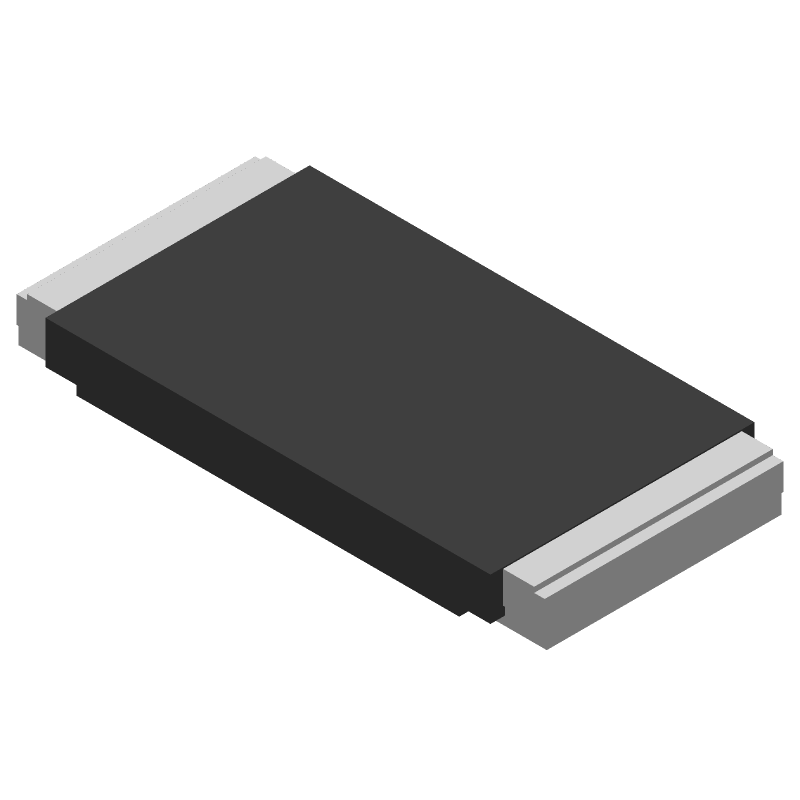

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WFMB2010R0330FEA by Vishay Intertechnologies
Results Overview of WFMB2010R0330FEA by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Financial Technology (Fintech)
Healthcare
WFMB2010R0330FEA Information
WFMB2010R0330FEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WFMB2010R0330FEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WFMB2010R0330FEA
|
Avnet Americas | WFMB2010 .033 1% NICR EA e3 - Tape and Reel (Alt: WFMB2010R0330FEA) RoHS: Not Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.7200 / $0.7350 | Buy Now |
|
DISTI #
71-WFMB2010R0330FEA
|
Mouser Electronics | Current Sense Resistors - SMD 2watts .033ohms 1% B=NiCrAl High Power RoHS: Compliant | 0 |
|
$0.5150 | Order Now |
|
DISTI #
V79:2366_26615950
|
Arrow Electronics | Combine High Power and Wide Resistance Range for Better Accuracy. Devices Feature High 3 W and 4 W Power Ratings and Resistance Range from 10 mΩ to 500 mΩ Min Qty: 1 Package Multiple: 1 Date Code: 2002 | Americas - 7745 |
|
$0.5325 | Buy Now |
|
DISTI #
61569773
|
Verical | Combine High Power and Wide Resistance Range for Better Accuracy. Devices Feature High 3 W and 4 W Power Ratings and Resistance Range from 10 mΩ to 500 mΩ Min Qty: 13 Package Multiple: 1 Date Code: 2002 | Americas - 7745 |
|
$0.4375 | Buy Now |
|
|
Bristol Electronics | 3789 |
|
RFQ | ||
|
|
Quest Components | 3031 |
|
$0.6540 / $2.1800 | Buy Now | |
|
DISTI #
WFMB2010R0330FEA
|
Avnet Abacus | WFMB2010 033 1 NICR EA e3 (Alt: WFMB2010R0330FEA) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 83 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WFMB2010R0330FEA
WFMB2010R0330FEA CAD Models
WFMB2010R0330FEA Part Data Attributes
|
|
WFMB2010R0330FEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WFMB2010R0330FEA
Vishay Intertechnologies
Fixed Resistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.5 mm | |
| Package Length | 5.08 mm | |
| Package Style | SMT | |
| Package Width | 2.54 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Rated Power Dissipation (P) | 3 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.033 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2010 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.3146 V |
