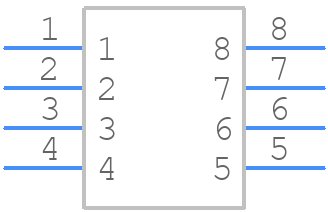

Part Symbol
-
Footprint
-

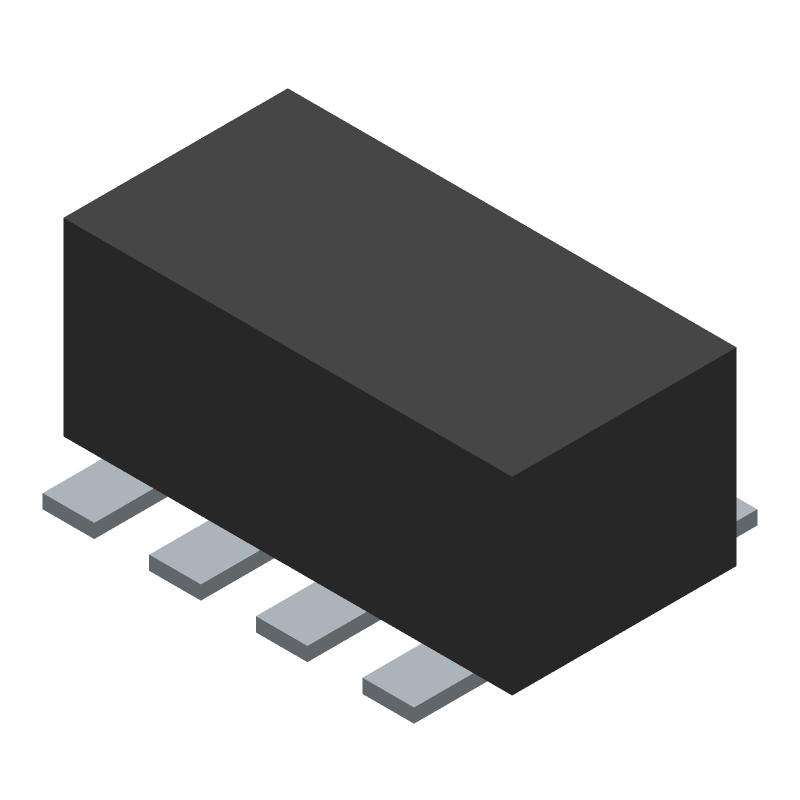

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for W3A45A101KAT2A by Kyocera AVX Components
Results Overview of W3A45A101KAT2A by Kyocera AVX Components
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
W3A45A101KAT2A Information
W3A45A101KAT2A by Kyocera AVX Components is an Array/Network Capacitor.
Array/Network Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for W3A45A101KAT2A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55J0148
|
Newark | Capacitor Array, 100Pf 50V, C0G, 10%, 0612, Full Reel, Capacitance:100Pf, Capacitor Case/Package:0612 [1632 Metric], Voltage(Dc):50V, No. Of Capacitors:4Capacitors, Capacitor Terminals:Wraparound, Capacitance Tolerance:± 10% Rohs Compliant: Yes |Kyocera Avx W3A45A101KAT2A RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1100 / $0.1790 | Buy Now |
|
DISTI #
478-W3A45A101KAT2ACT-ND
|
DigiKey | CAP ARRAY 100PF 50V NP0 0612 Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0824 / $0.4100 | Buy Now |
|
DISTI #
W3A45A101KAT2A
|
Avnet Americas | Capacitor Array, 100 pF, 50 V, ? 10%, 4 Element, SMD, 0612 [1632 Metric] - Tape and Reel (Alt: W3A45A101KAT2A) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0798 / $0.0814 | Buy Now |
|
DISTI #
581-W3A45A101K
|
Mouser Electronics | Capacitor Arrays & Networks 50V 100pF NPO 10% A 581-W3A45A101KAT4A RoHS: Compliant | 7491 |
|
$0.0800 / $0.4100 | Buy Now |
|
DISTI #
E02:0323_01919999
|
Arrow Electronics | Cap Ceramic Array 100pF 50V C0G 10% 0612 Pad SMD 4 Capacitor 125°C T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks Date Code: 2442 | Europe - 12000 |
|
$0.1233 | Buy Now |
|
|
Bristol Electronics | 1226 |
|
RFQ | ||
|
|
Quest Components | ISOLATED C NETWORK, 50V, C0G, 0.0001UF, SURFACE MOUNT, CHIP-8 | 3200 |
|
$0.1170 / $0.5850 | Buy Now |
|
|
Quest Components | ISOLATED C NETWORK, 50V, C0G, 0.0001UF, SURFACE MOUNT, CHIP-8 | 3200 |
|
$0.1608 / $0.8040 | Buy Now |
|
|
Quest Components | ISOLATED C NETWORK, 50V, C0G, 0.0001UF, SURFACE MOUNT, CHIP-8 | 170 |
|
$0.1170 / $0.1755 | Buy Now |
|
DISTI #
W3A45A101KAT2A
|
TME | Capacitor: ceramic, MLCC, 100pF, 50V, C0G (NP0), ±10%, SMD, 0612 Min Qty: 4000 | 0 |
|
$0.0650 / $0.0750 | RFQ |
Part Details for W3A45A101KAT2A
W3A45A101KAT2A CAD Models
W3A45A101KAT2A Part Data Attributes
|
|
W3A45A101KAT2A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
W3A45A101KAT2A
Kyocera AVX Components
Array/Network Capacitor, 50V, C0G, 0.0001uF, Surface Mount, CHIP-8, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.45 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Capacitance | 0.0001 µF | |
| Capacitor Type | ARRAY/NETWORK CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 1.35 mm | |
| JESD-609 Code | e3 | |
| Length | 1.6 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 10% | |
| Network Type | ISOLATED C NETWORK | |
| Number of Elements | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Code | DIP | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | DIP | |
| Packing Method | TR, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Seated Height-Max | 1.35 mm | |
| Size Code | 0612 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | C0G | |
| Temperature Coefficient | 30ppm/Cel ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Pitch | 0.76 mm | |
| Terminal Shape | WRAPAROUND | |
| Width | 3.2 mm |
W3A45A101KAT2A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the W3A45A101KAT2A capacitor is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the W3A45A101KAT2A capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
The W3A45A101KAT2A capacitor is rated for operation up to 125°C, but it's recommended to derate the voltage and current ratings at higher temperatures to ensure reliability.
-
The recommended land pattern for the W3A45A101KAT2A capacitor is a rectangular pad with a minimum size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape.
-
Yes, the W3A45A101KAT2A capacitor is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
