W31-X2M1G-20 Information
W31-X2M1G-20 by TE Connectivity is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for W31-X2M1G-20
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18M9758
|
Newark | Circuit Breaker, Thermal, 1P, 250V, 20A, Product Range:W31 Series, Current Rating:20A, No. Of Poles:1 Pole, Voltage Rating Vdc:50Vdc, Voltage Rating Vac:250Vac, Circuit Breaker Mounting:Panel, Operating Voltage:250V Rohs Compliant: Yes |Potter&brumfield Te Connectivity W31-X2M1G-20 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 74 |
|
$32.7800 / $51.8300 | Buy Now |
|
DISTI #
PB419-ND
|
DigiKey | CIR BRKR THRM 20A 240VAC 50VDC Min Qty: 1 Lead time: 18 Weeks Container: Bulk |
59 In Stock |
|
$26.8947 / $51.4100 | Buy Now |
|
DISTI #
3-1393247-5
|
Avnet Americas | Circuit Breaker, Thermal, Toggle, Panel, Series Trip, 20 A, 1 Pole, 240 VAC, 50 VDC - Bulk (Alt: 3-1393247-5) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 54 Weeks, 2 Days Container: Bulk | 0 |
|
$24.6144 / $27.2987 | Buy Now |
|
DISTI #
18M9758
|
Avnet Americas | Circuit Breaker, Thermal, Toggle, Panel, Series Trip, 20 A, 1 Pole, 240 VAC, 50 VDC - Bulk (Alt: 18M9758) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Bulk | 0 |
|
$38.2400 / $51.2200 | Buy Now |
|
DISTI #
655-W31-X2M1G-20
|
Mouser Electronics | Circuit Breakers 20A TOGGLE ACTUATOR RoHS: Compliant | 83 |
|
$26.8900 / $45.9400 | Buy Now |
|
|
Onlinecomponents.com | Circuit Breaker Thermal 1Pole 20A 250VAC/50VDC RoHS: Compliant |
984 In Stock |
|
$25.6400 / $46.5000 | Buy Now |
|
|
Quest Components | TOGGLE SWITCH, SPST, LATCHED, 20A, 50VDC, PANEL MOUNT-THREADED | 10 |
|
$26.1885 | Buy Now |
|
DISTI #
3-1393247-5
|
TTI | Circuit Breakers W31-X2M1G-20 CIRCUIT BREAKERS Min Qty: 1 Package Multiple: 1 Container: Tray |
Americas - 143 In Stock |
|
Buy Now | |
|
DISTI #
W31-X2M1G-20
|
IBS Electronics | CIRCUIT BREAKER SUPPLEMENTARY THERMAL 250V AC 50V DC 20A Min Qty: 4 Package Multiple: 1 | 984 |
|
$33.3320 / $60.4500 | Buy Now |
|
DISTI #
000000000000049253
|
Sager | Circuit Breakers 20A TOGGLE ACTUATOR Min Qty: 1 | 73 |
|
$26.2800 / $30.0300 | Buy Now |
Part Details for W31-X2M1G-20

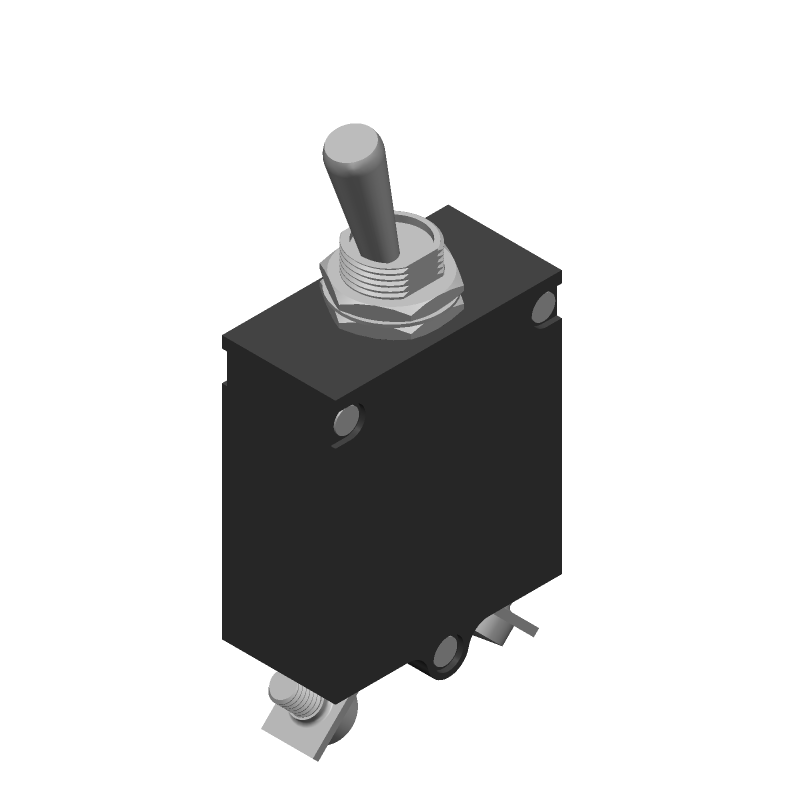

W31-X2M1G-20 CAD Models
