W28-XT1A-7 Information
W28-XT1A-7 by TE Connectivity is a Circuit Breaker.
Circuit Breaker are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for W28-XT1A-7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08H7081
|
Newark | W28-Xt1A-7=W28 Rohs Compliant: Yes |Potter&brumfield Te Connectivity W28-XT1A-7 RoHS: Compliant Min Qty: 600 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.2100 / $4.7900 | Buy Now |
|
DISTI #
35AC5494
|
Newark | W28-Xt1A-7=W28 |Potter&brumfield Te Connectivity W28-XT1A-7 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.1000 / $7.0400 | Buy Now |
|
DISTI #
PB2785-ND
|
DigiKey | CIR BRKR THRM 7A 250VAC 32VDC Min Qty: 1 Lead time: 19 Weeks Container: Bulk |
600 In Stock |
|
$3.7801 / $8.4800 | Buy Now |
|
DISTI #
7-1393250-2
|
Avnet Americas | - Bulk (Alt: 7-1393250-2) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 111 Weeks, 0 Days Container: Bulk | 0 |
|
$3.6627 / $4.0194 | Buy Now |
|
DISTI #
655-W28-XT1A-7
|
Mouser Electronics | Circuit Breakers CIRCUIT BREAKER THERMAL 7A BLK RoHS: Compliant | 486 |
|
$3.9500 / $8.4200 | Buy Now |
|
|
TE Connectivity | W28-XT1A-7=W28 Circuit Breaker Type: Thermal Circuit Function: Series Trip Illuminated: Without Actuator Color: Black Operating Voltage: 250 VAC Thermal Series Trip Without Black | Circuit Breaker | Part Number: W28-XT1A-7 | Internal Number: 7-1393250-2 | TE Connectivity RoHS: Compliant Min Qty: 1 | 600 |
|
$9.7200 / $11.7300 | Buy Now |
|
|
Onlinecomponents.com | Circuit Breaker - Thermal - 1 Pole - 7A, 250VAC / 32VDC - Push to Reset Actuator - Panel Mount. RoHS: Compliant | 0 |
|
$3.8470 / $4.8440 | Buy Now |
|
DISTI #
000000000002456591
|
Sager | Circuit Breakers CIRCUIT BREAKER THERMAL 7A BLK Min Qty: 600 | 0 |
|
$3.8700 | Buy Now |
|
|
Master Electronics | Circuit Breaker - Thermal - 1 Pole - 7A, 250VAC / 32VDC - Push to Reset Actuator - Panel Mount. RoHS: Compliant | 0 |
|
$3.8470 / $4.8440 | Buy Now |
Part Details for W28-XT1A-7

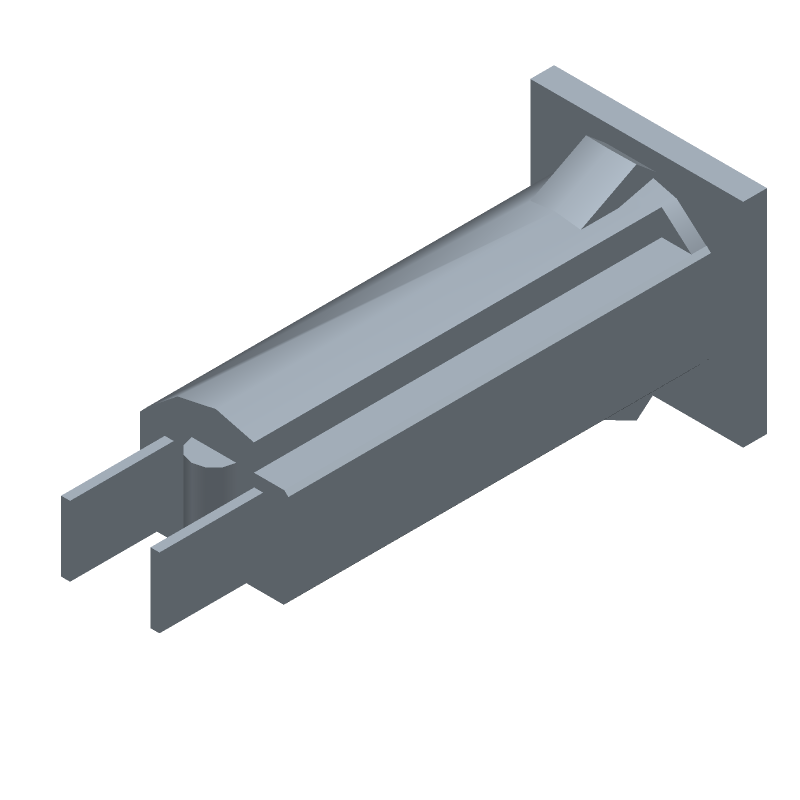

W28-XT1A-7 CAD Models
