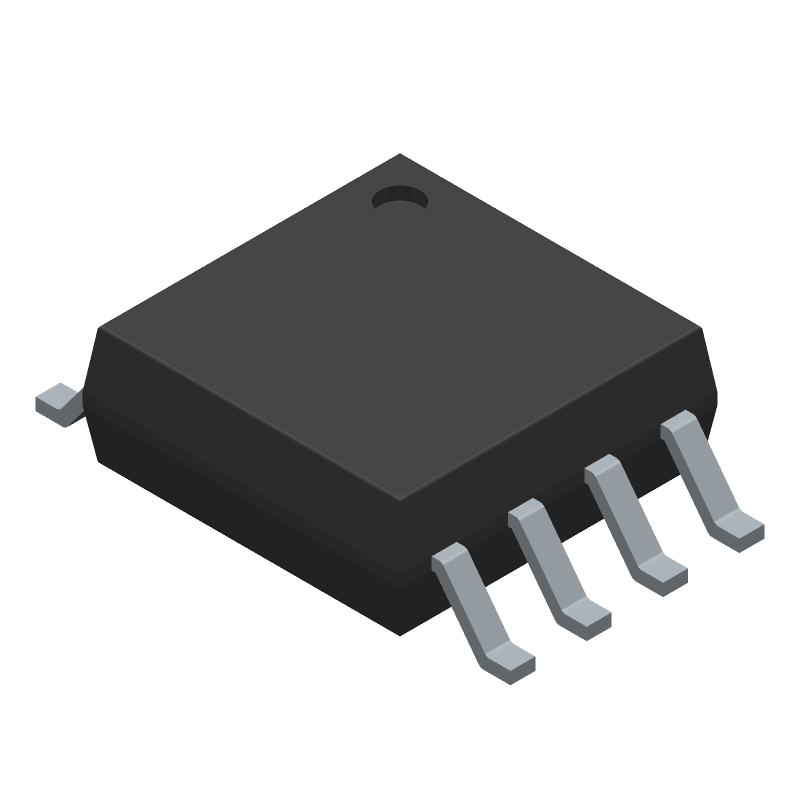

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for W25Q16JVSSIM by Winbond Electronics Corp
Results Overview of W25Q16JVSSIM by Winbond Electronics Corp
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
W25Q16JVSSIM Information
W25Q16JVSSIM by Winbond Electronics Corp is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for W25Q16JVSSIM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
256-W25Q16JVSSIM-ND
|
DigiKey | IC FLASH 16MBIT SPI/QUAD 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube |
3233 In Stock |
|
$0.3534 / $0.4600 | Buy Now |
|
DISTI #
454-W25Q16JVSSIM
|
Mouser Electronics | NOR Flash spiFlash, 3V, 16M-bit, 4Kb Uniform Sector, DTR RoHS: Compliant | 2685 |
|
$0.3460 / $0.4600 | Buy Now |
|
DISTI #
V36:1790_17117783
|
Arrow Electronics | NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 16M-bit 2M x 8 6ns 8-Pin SOIC Tube RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 12 Weeks Date Code: 2228 | Americas - 26 |
|
$0.3089 / $0.3515 | Buy Now |
|
DISTI #
85573188
|
Verical | NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 16M-bit 2M x 8 6ns 8-Pin SOIC Tube RoHS: Compliant Min Qty: 26 Package Multiple: 26 Date Code: 2228 | Americas - 26 |
|
$0.3089 / $0.3515 | Buy Now |
|
|
NAC | spiFlash, 3V, 16M-bit, 4Kb Uniform Sector, DTR, SOP8(208mil) Package RoHS: Compliant Min Qty: 90 Package Multiple: 90 | 0 |
|
$0.2900 / $0.3400 | Buy Now |
|
DISTI #
W25Q16JVSSIM
|
Avnet Asia | NOR Flash 16Mbit 2M X 8bit SPI 3V 6ns 8-Pin SOIC (Alt: W25Q16JVSSIM) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 20 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
Cytech Systems Limited | IC FLASH 16MBIT SPI/QUAD 8SOIC | 9000 |
|
RFQ | |
|
|
Win Source Electronics | IC FLASH 16MBIT SPI/QUAD 8SOIC | 151300 |
|
$0.4068 / $0.6102 | Buy Now |
Part Details for W25Q16JVSSIM
W25Q16JVSSIM CAD Models
W25Q16JVSSIM Part Data Attributes
|
|
W25Q16JVSSIM
Winbond Electronics Corp
Buy Now
Datasheet
|
Compare Parts:
W25Q16JVSSIM
Winbond Electronics Corp
Flash, 2MX8, PDSO8, SOIC-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WINBOND ELECTRONICS CORP | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | Winbond | |
| Alternate Memory Width | 1 | |
| Clock Frequency-Max (fCLK) | 133 MHz | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | S-PDSO-G8 | |
| Length | 5.28 mm | |
| Memory Density | 16777216 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 2097152 words | |
| Number of Words Code | 2000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 2MX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Programming Voltage | 3 V | |
| Seated Height-Max | 2.16 mm | |
| Serial Bus Type | QSPI | |
| Standby Current-Max | 0.000015 A | |
| Supply Current-Max | 0.02 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Type | NOR TYPE | |
| Width | 5.28 mm | |
| Write Protection | HARDWARE/SOFTWARE |
Alternate Parts for W25Q16JVSSIM
This table gives cross-reference parts and alternative options found for W25Q16JVSSIM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of W25Q16JVSSIM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| W25Q16JVSSJQ | Winbond Electronics Corp | Check for Price | Flash, 2MX8, PDSO8, SOIC-8 | W25Q16JVSSIM vs W25Q16JVSSJQ |
W25Q16JVSSIM Frequently Asked Questions (FAQ)
-
The W25Q16JVSSIM supports up to 100,000 erase cycles.
-
The hold pin (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
-
The WP# pin is a write-protect pin that allows you to protect the entire memory array or a specific sector from being written. To use it, pull the WP# pin low to enable write protection, and pull it high to disable write protection.
-
The optimal clock frequency depends on your specific application and system requirements. The W25Q16JVSSIM supports clock frequencies up to 104 MHz, but you may need to adjust the frequency based on your system's timing constraints and noise tolerance.
-
The main difference between the two is the operating temperature range. The W25Q16JVSSIM has an operating temperature range of -40°C to 85°C, while the W25Q16JVSSIQ has an operating temperature range of -40°C to 125°C.
