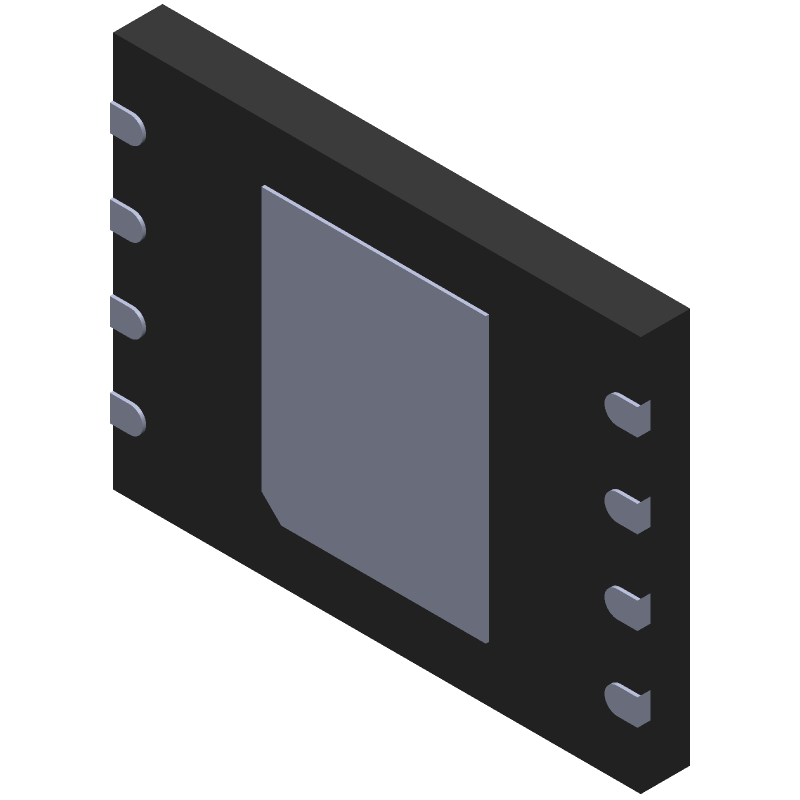

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for W25N01GVZEIG by Winbond Electronics Corp
Results Overview of W25N01GVZEIG by Winbond Electronics Corp
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
W25N01GVZEIG Information
W25N01GVZEIG by Winbond Electronics Corp is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for W25N01GVZEIG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
256-W25N01GVZEIG-ND
|
DigiKey | IC FLASH 1GBIT SPI/QUAD 8WSON Min Qty: 1 Lead time: 22 Weeks Container: Tray |
795 In Stock |
|
$2.4239 / $3.0400 | Buy Now |
|
DISTI #
454-W25N01GVZEIG
|
Mouser Electronics | NAND Flash 1G-bit Serial NAND flash, 3V RoHS: Compliant | 1419 |
|
$2.4200 / $3.0400 | Buy Now |
|
|
Bristol Electronics | 2471 |
|
RFQ | ||
|
|
Quest Components | 360 |
|
$2.9964 / $5.4480 | Buy Now | |
|
|
ComSIT USA | Flash, 1GX1, PDSO8 ECCN: EAR99 RoHS: Not Compliant |
|
|
RFQ | |
|
|
NAC | 1G-bit Serial NAND flash, 3V, WSON(8x6mm) Package RoHS: Compliant Min Qty: 63480 Package Multiple: 63480 | 0 |
|
$2.0500 / $2.3700 | Buy Now |
|
|
MacroQuest Electronics | ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 | 4891 |
|
$0.9600 / $1.5000 | Buy Now |
|
|
Win Source Electronics | IC FLASH 1GBIT SPI/QUAD 8WSON / FLASH - NAND (SLC) Memory IC 1Gbit SPI - Quad I/O 104 MHz 7 ns 8-WSON (8x6) | 571000 |
|
$0.5500 / $0.7104 | Buy Now |
Part Details for W25N01GVZEIG
W25N01GVZEIG CAD Models
W25N01GVZEIG Part Data Attributes
|
|
W25N01GVZEIG
Winbond Electronics Corp
Buy Now
Datasheet
|
Compare Parts:
W25N01GVZEIG
Winbond Electronics Corp
Flash, 1GX1, PDSO8, WSON-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WINBOND ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | Winbond | |
| Clock Frequency-Max (fCLK) | 104 MHz | |
| Data Retention Time-Min | 10 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-N8 | |
| Length | 8 mm | |
| Memory Density | 1073741824 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 134217728 words | |
| Number of Words Code | 128000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 128MX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Programming Voltage | 3 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Serial Bus Type | QSPI | |
| Standby Current-Max | 0.00005 A | |
| Supply Current-Max | 0.035 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Type | SLC NAND TYPE | |
| Width | 6 mm | |
| Write Protection | HARDWARE/SOFTWARE |
W25N01GVZEIG Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the W25N01GVZEIG is 104 MHz.
-
The W25N01GVZEIG supports programming up to 256 bytes in a single operation.
-
The W25N01GVZEIG has an erase cycle endurance of 100,000 cycles.
-
Yes, the W25N01GVZEIG supports QSPI (Quad SPI) mode, which allows for faster data transfer rates.
-
The W25N01GVZEIG has a data retention period of 20 years at 85°C.
