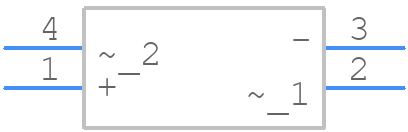

Part Symbol
-

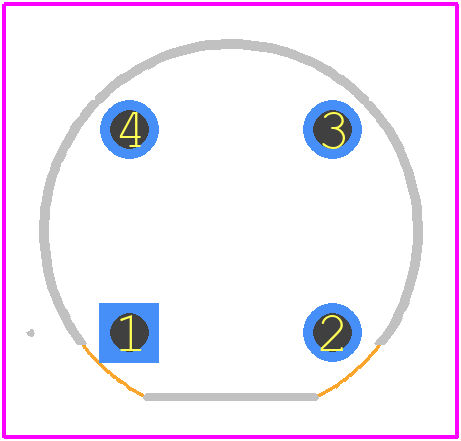

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for W01G-E4/51 by Vishay Intertechnologies
Results Overview of W01G-E4/51 by Vishay Intertechnologies
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Electronic Manufacturing
W01G-E4/51 Information
W01G-E4/51 by Vishay Intertechnologies is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for W01G-E4/51
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
95M4533
|
Newark | Bridge Rectifier Diode, Single, 100 V, 1.5 A, Through Hole, 1 V, 4 Rohs Compliant: Yes |Vishay W01G-E4/51 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 21978 |
|
$0.3970 / $0.8670 | Buy Now |
|
DISTI #
W01G-E4/51
|
Avnet Americas | 1.5A,100V,GPP,SIN PHASE,BRIDGE - Bulk (Alt: W01G-E4/51) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks, 0 Days Container: Bulk | 747 |
|
$0.1671 / $0.1890 | Buy Now |
|
DISTI #
625-W01G-E4
|
Mouser Electronics | Bridge Rectifiers 1.5 Amp 100 Volt RoHS: Compliant | 1662 |
|
$0.2670 / $0.5300 | Buy Now |
|
DISTI #
E02:0323_00940569
|
Arrow Electronics | Diode Rectifier Bridge Single 100V 1.5A 4-Pin Case WOG Bulk Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2507 | Europe - 7475 |
|
$0.2423 / $0.3956 | Buy Now |
|
DISTI #
V36:1790_07456654
|
Arrow Electronics | Diode Rectifier Bridge Single 100V 1.5A 4-Pin Case WOG Bulk Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2324 | Americas - 575 |
|
$0.2190 / $0.3106 | Buy Now |
|
|
Future Electronics | W01G Series 100 V 50 V Glass Passivated Single-Phase Bridge Rectifier - WOG RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Container: Bag | 215Bag |
|
$0.1750 / $0.1950 | Buy Now |
|
DISTI #
87791394
|
Verical | Diode Rectifier Bridge Single 100V 1.5A 4-Pin Case WOG Bulk Min Qty: 32 Package Multiple: 1 Date Code: 2507 | Americas - 7456 |
|
$0.2411 / $0.3529 | Buy Now |
|
DISTI #
69126769
|
Verical | Diode Rectifier Bridge Single 100V 1.5A 4-Pin Case WOG Bulk Min Qty: 24 Package Multiple: 1 Date Code: 2324 | Americas - 575 |
|
$0.2190 / $0.2886 | Buy Now |
|
|
Bristol Electronics | Min Qty: 9 | 1009 |
|
$0.1800 / $0.5625 | Buy Now |
|
|
Quest Components | 807 |
|
$0.2250 / $0.7500 | Buy Now |
Part Details for W01G-E4/51
W01G-E4/51 CAD Models
W01G-E4/51 Part Data Attributes
|
|
W01G-E4/51
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
W01G-E4/51
Vishay Intertechnologies
Bridge Rectifier Diode, 1 Phase, 1.5A, 100V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, CASE WOG, 4 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | ROHS COMPLIANT, PLASTIC, CASE WOG, 4 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Breakdown Voltage-Min | 100 V | |
| Case Connection | ISOLATED | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | O-PBCY-W4 | |
| JESD-609 Code | e4 | |
| Non-rep Pk Forward Current-Max | 50 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Surface Mount | NO | |
| Terminal Finish | SILVER | |
| Terminal Form | WIRE | |
| Terminal Position | BOTTOM |
