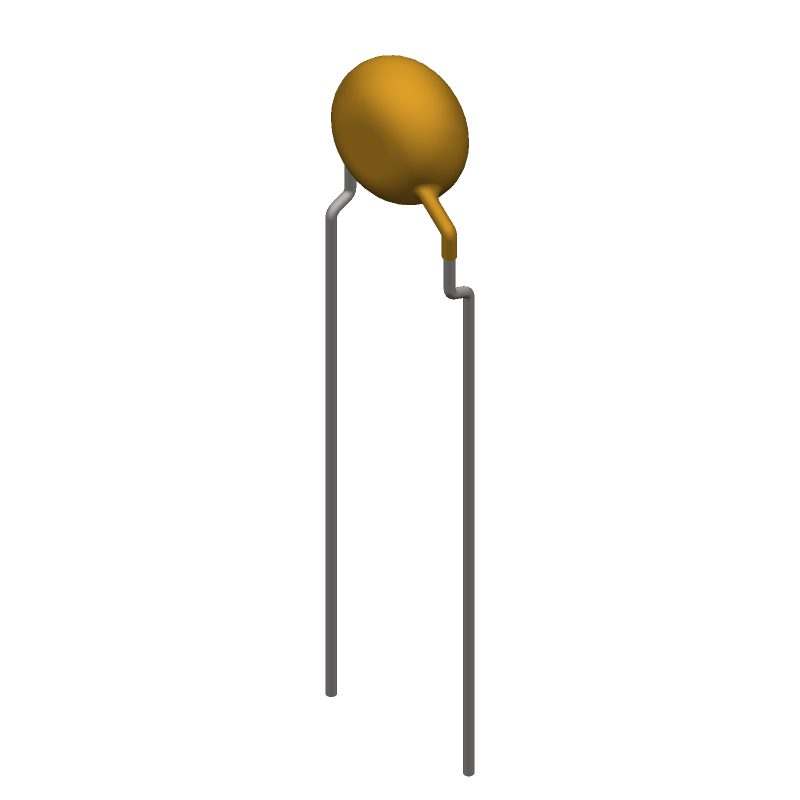

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VY1680K31Y5SQ63V0 by Vishay Intertechnologies
Results Overview of VY1680K31Y5SQ63V0 by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VY1680K31Y5SQ63V0 Information
VY1680K31Y5SQ63V0 by Vishay Intertechnologies is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for VY1680K31Y5SQ63V0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69K4043
|
Newark | Capacitor Ceramic 68Pf, 250V, Y5S, 10%, Rad, Capacitance:68Pf, Capacitance Tolerance:± 10%, Suppression Class:X1/Y1, Voltage Rating X:760V, Voltage Rating Y:500V, Capacitor Case/Package:Radial Leaded, Lead Spacing:10Mm Rohs Compliant: Yes |Vishay VY1680K31Y5SQ63V0 RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.1600 | Buy Now |
|
DISTI #
VY1680K31Y5SQ63V0
|
Avnet Americas | VY1 X760Y500VAC 68pF ?10% Y5S BULK e3 - Bulk (Alt: VY1680K31Y5SQ63V0) RoHS: Compliant Min Qty: 10000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$0.0643 / $0.0657 | Buy Now |
|
DISTI #
72-VY1680K31Y5SQ63V0
|
Mouser Electronics | Safety Capacitors 68pF X760 Y500VAC 10% Y5S RoHS: Compliant | 7769 |
|
$0.0840 / $0.3700 | Buy Now |
|
|
Quest Components | 800 |
|
$0.1677 / $0.5590 | Buy Now | |
|
DISTI #
VY1680K31Y5SQ63V0
|
IBS Electronics | VY1 SERIES Ø, 8 X 5 MM 68 PF 760/500 VAC ±, 10 % Y5S LS=10MM CERAMIC DISC CAPACITOR Min Qty: 10000 Package Multiple: 1 | 0 |
|
$0.0725 / $0.0781 | Buy Now |
|
DISTI #
VY1680K31Y5SQ63V0
|
Avnet Abacus | VY1 X760Y500VAC 68pF 10 Y5S BULK e3 (Alt: VY1680K31Y5SQ63V0) RoHS: Compliant Min Qty: 10000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
LCSC | 68pF 10% X1Y1 760V PluginP10mm Safety Capacitors ROHS | 955 |
|
$0.0830 / $0.1659 | Buy Now |
Part Details for VY1680K31Y5SQ63V0
VY1680K31Y5SQ63V0 CAD Models
VY1680K31Y5SQ63V0 Part Data Attributes
|
|
VY1680K31Y5SQ63V0
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VY1680K31Y5SQ63V0
Vishay Intertechnologies
Ceramic Capacitor, Ceramic, 10% +Tol, 10% -Tol, Y5S, 22% TC, 0.000068uF, Through Hole Mount, 3220, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.23.00.60 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | SAFETY CLASS Y1 | |
| Capacitance | 0.000068 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 8 mm | |
| JESD-609 Code | e3 | |
| Length | 8 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Multilayer | No | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 10% | |
| Rated (AC) Voltage (URac) | 500 V | |
| Rated (DC) Voltage (URdc) | 1500 V | |
| Reference Standard | CQC; CSA; IEC60384-14; UL | |
| Surface Mount | NO | |
| Temperature Characteristics Code | Y5S | |
| Temperature Coefficient | 22% ppm/°C | |
| Terminal Finish | MATTE TIN | |
| Terminal Pitch | 10 mm | |
| Terminal Shape | WIRE | |
| Width | 5 mm |
Alternate Parts for VY1680K31Y5SQ63V0
This table gives cross-reference parts and alternative options found for VY1680K31Y5SQ63V0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VY1680K31Y5SQ63V0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| VY1680K31Y5SQ6TV0 | Vishay Intertechnologies | Check for Price | Ceramic Capacitor, Ceramic, 10% +Tol, 10% -Tol, Y5S, 22% TC, 0.000068uF, Through Hole Mount, 3220, RADIAL LEADED, ROHS COMPLIANT | VY1680K31Y5SQ63V0 vs VY1680K31Y5SQ6TV0 |
| VY1680K31Y5SQ6TL0 | Vishay Intertechnologies | Check for Price | Ceramic Capacitor, Ceramic, 10% +Tol, 10% -Tol, Y5S, -/+22% TC, 0.000068uF, 3220, | VY1680K31Y5SQ63V0 vs VY1680K31Y5SQ6TL0 |
VY1680K31Y5SQ63V0 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for VY1680K31Y5SQ63V0 is 260°C (500°F) for a maximum of 10 seconds.
-
Yes, the VY1680K31Y5SQ63V0 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
-
The ESR of the VY1680K31Y5SQ63V0 capacitor is typically around 0.015 ohms at 100 kHz and 20°C (68°F).
-
Yes, the VY1680K31Y5SQ63V0 capacitor is designed to withstand high-vibration environments, with a vibration test rating of 10-2000 Hz, 10 G peak acceleration.
-
The MSL of the VY1680K31Y5SQ63V0 capacitor is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.
