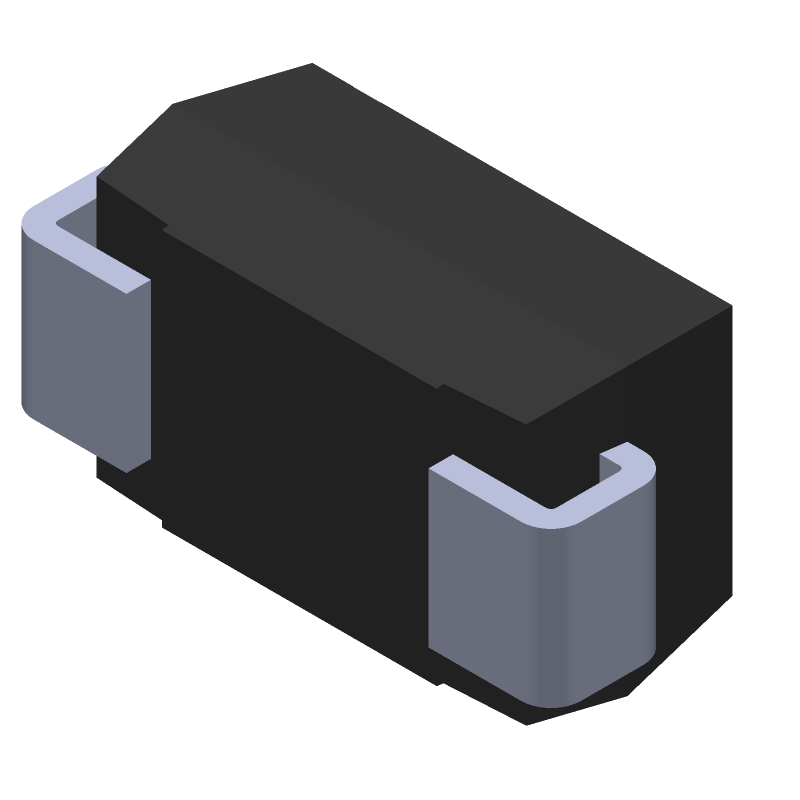

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VSSA310S-E3/61T by Vishay Intertechnologies
Results Overview of VSSA310S-E3/61T by Vishay Intertechnologies
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Telecommunications
Automotive
VSSA310S-E3/61T Information
VSSA310S-E3/61T by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VSSA310S-E3/61T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AC3984
|
Newark | Schottky Rect, Single, 100V, Do-214Ac, Repetitive Reverse Voltage Vrrm Max:100V, Forward Current If(Av):3A, Diode Configuration:Single, Diode Case Style:Do-214Ac, No. Of Pins:2Pins, Forward Voltage Vf Max:800Mv, Forward Surge Currentrohs Compliant: Yes |Vishay VSSA310S-E3/61T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 817 |
|
$0.2660 / $0.4850 | Buy Now |
|
DISTI #
38AH3319
|
Newark | 3A,100V, tmbs Sky Rect. Rohs Compliant: Yes |Vishay VSSA310S-E3/61T RoHS: Compliant Min Qty: 3600 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1020 / $0.1660 | Buy Now |
|
DISTI #
79R2948
|
Newark | 3A, 100V, Sma, Trench Sky Rect |Vishay VSSA310S-E3/61T RoHS: Not Compliant Min Qty: 3600 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1140 / $0.1780 | Buy Now |
|
DISTI #
VSSA310S-E3/61T
|
Avnet Americas | 3A, 100V, SMA, TRENCH SKY RECT - Tape and Reel (Alt: VSSA310S-E3/61T) RoHS: Compliant Min Qty: 3600 Package Multiple: 1800 Lead time: 5 Weeks, 0 Days Container: Reel | 0 |
|
$0.0931 / $0.1006 | Buy Now |
|
DISTI #
625-VSSA310S-E3/61T
|
Mouser Electronics | Schottky Diodes & Rectifiers 3A,100V,TMBS RoHS: Compliant | 4838 |
|
$0.0980 / $0.3700 | Buy Now |
|
DISTI #
E02:0323_02414903
|
Arrow Electronics | Diode Schottky 100V 3A 2-Pin SMA T/R Min Qty: 3600 Package Multiple: 1800 Lead time: 5 Weeks Date Code: 2502 | Europe - 7200 |
|
$0.1751 | Buy Now |
|
DISTI #
V72:2272_18763134
|
Arrow Electronics | Diode Schottky 100V 3A 2-Pin SMA T/R Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2331 Container: Cut Strips | Americas - 4 |
|
$0.0980 | Buy Now |
|
DISTI #
87285280
|
Verical | Diode Schottky 100V 3A 2-Pin SMA T/R Min Qty: 3600 Package Multiple: 3600 Date Code: 2502 | Americas - 7200 |
|
$0.1752 | Buy Now |
|
DISTI #
VSSA310S-E3/61T
|
TTI | Schottky Diodes & Rectifiers 3A,100V,TMBS RoHS: Compliant pbFree: Pb-Free Min Qty: 3600 Package Multiple: 1800 Container: Reel | Americas - 0 |
|
$0.1320 / $0.1440 | Buy Now |
|
DISTI #
VSSA310S-E3/61T
|
TME | Diode: Schottky rectifying, SMA, SMD, 100V, 3A, reel,tape Min Qty: 1 | 3425 |
|
$0.2000 / $0.4620 | Buy Now |
Part Details for VSSA310S-E3/61T
VSSA310S-E3/61T CAD Models
VSSA310S-E3/61T Part Data Attributes
|
|
VSSA310S-E3/61T
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VSSA310S-E3/61T
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.7A, 100V V(RRM), Silicon, DO-214AC, SMA, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SMA, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, LOW POWER LOSS | |
| Application | EFFICIENCY | |
| Breakdown Voltage-Min | 100 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.8 V | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 60 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.7 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 150 µA | |
| Reverse Test Voltage | 100 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
VSSA310S-E3/61T Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for VSSA310S-E3/61T is -40°C to 125°C.
-
Yes, the VSSA310S-E3/61T is AEC-Q101 qualified, making it suitable for automotive applications.
-
The maximum surge current rating for VSSA310S-E3/61T is 150 A for 10 ms.
-
Yes, the VSSA310S-E3/61T is designed for high-reliability applications and is screened to MIL-PRF-19500 standards.
-
The thermal resistance of VSSA310S-E3/61T is 10°C/W.
