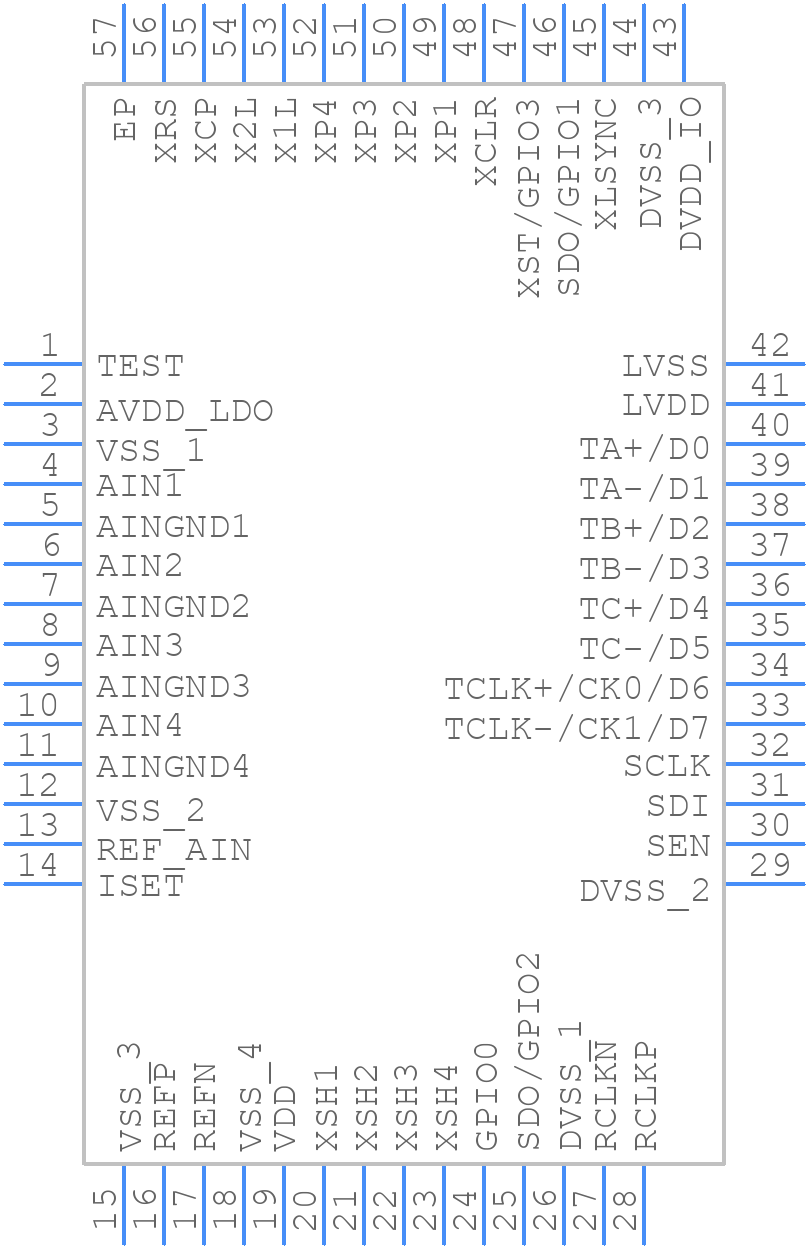

Part Symbol
-

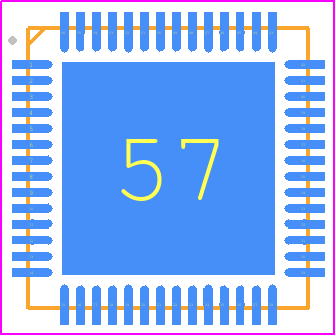

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VSP5611RSHR by Texas Instruments
Results Overview of VSP5611RSHR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
VSP5611RSHR Information
VSP5611RSHR by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for VSP5611RSHR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-29262-1-ND
|
DigiKey | IC AFE 4 CHAN 16BIT 56VQFN Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$7.3451 / $10.8600 | Buy Now |
|
DISTI #
595-VSP5611RSHR
|
Mouser Electronics | Analog Front End - AFE 16B 50MSPS FOUR CH I MAGING AFE RoHS: Compliant | 0 |
|
$7.2400 | Order Now |
Part Details for VSP5611RSHR
VSP5611RSHR CAD Models
VSP5611RSHR Part Data Attributes
|
|
VSP5611RSHR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
VSP5611RSHR
Texas Instruments
16 bit, 50MSPS Four Channel Imaging Analog Front End 56-VQFN 0 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | HVQCCN, | |
| Pin Count | 56 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | S-PQCC-N56 | |
| JESD-609 Code | e4 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 4 | |
| Number of Functions | 1 | |
| Number of Terminals | 56 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 3.3 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm |
VSP5611RSHR Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
-
Use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow around the device. The recommended operating temperature range is -40°C to 85°C.
-
The maximum clock frequency is 150 MHz, but it can be overclocked up to 180 MHz with reduced voltage and temperature derating.
-
Use the power-down mode (PD) to reduce power consumption. Set the PD pin high to enter power-down mode, and use the PDEN pin to control the power-down mode entry and exit.
-
The recommended input impedance is 50 ohms, but it can be adjusted to match the specific application requirements.
