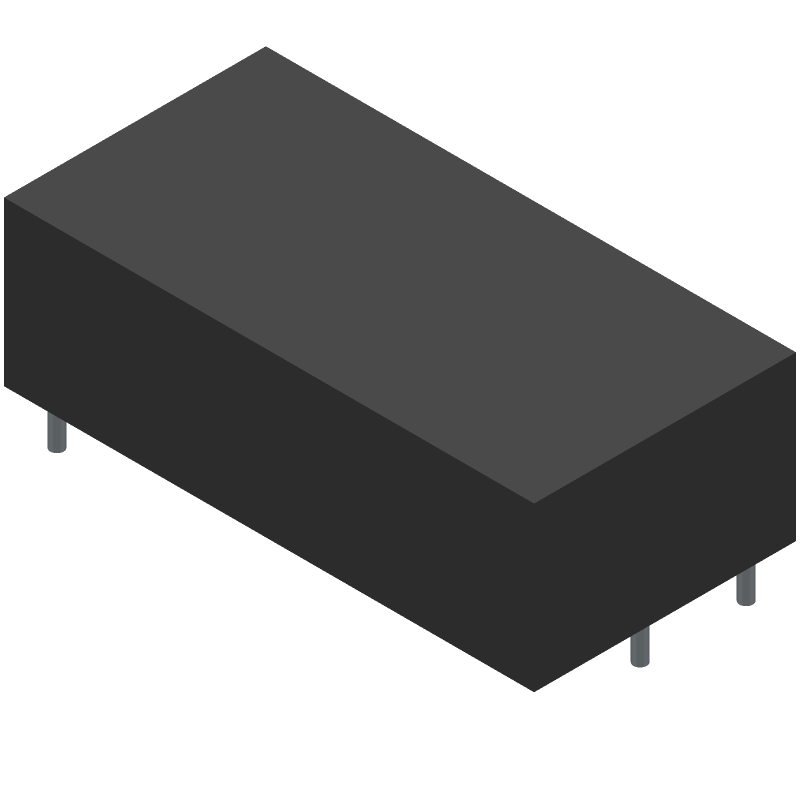

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VSK-S5-3R3UA by CUI Inc
Results Overview of VSK-S5-3R3UA by CUI Inc
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
VSK-S5-3R3UA Information
VSK-S5-3R3UA by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part Details for VSK-S5-3R3UA
VSK-S5-3R3UA CAD Models
VSK-S5-3R3UA Part Data Attributes
|
|
VSK-S5-3R3UA
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
VSK-S5-3R3UA
CUI Inc
Board Mount AC-DC Power Supply, 3.3 Vdc, 1.25 A, 4.12 W
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | CUI INC | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | CUI Inc. | |
| Additional Feature | IT ALSO OPERATES FROM 110 TO 370VDC | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 85 V | |
| Input Voltage-Nom | 110 V | |
| JESD-30 Code | R-XDMA-P4 | |
| Length | 50.8 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 55 °C | |
| Operating Temperature-Min | ||
| Output Voltage-Max | 3.399 V | |
| Output Voltage-Min | 3.201 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 15.66 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | COMMERCIAL | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 4.125 W | |
| Trim/Adjustable Output | NO | |
| Width | 25.4 mm |
VSK-S5-3R3UA Frequently Asked Questions (FAQ)
-
The operating temperature range for the VSK-S5-3R3UA is -40°C to 85°C.
-
Yes, the VSK-S5-3R3UA is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
CUI Inc provides a recommended PCB layout and land pattern in their application notes and datasheet, which should be followed to ensure proper mounting and thermal performance.
-
The VSK-S5-3R3UA is designed to meet the requirements of IEC 60068-2-6 for vibration and IEC 60068-2-27 for shock, making it suitable for use in high-vibration or high-shock applications.
-
The typical efficiency of the VSK-S5-3R3UA is around 85-90% depending on the input voltage, output voltage, and load conditions.
