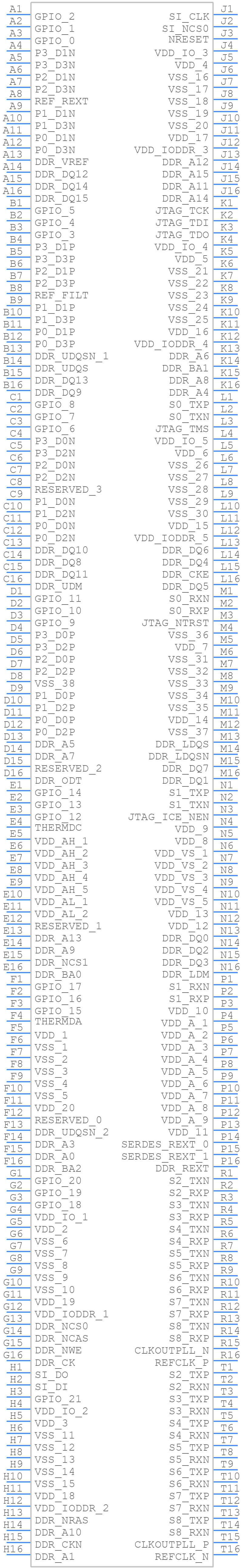

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VSC7514XKS by Microchip Technology Inc
Results Overview of VSC7514XKS by Microchip Technology Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Electronic Manufacturing
Communication and Networking
Robotics and Drones
VSC7514XKS Information
VSC7514XKS by Microchip Technology Inc is a Telecom Switching Circuit.
Telecom Switching Circuits are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for VSC7514XKS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78AC6717
|
Newark | 10 Port Industrial Ethernet Switch With 4 Integrated Cu Phys 256 Pbga 17X17Mm Tray Rohs Compliant: Yes |Microchip VSC7514XKS RoHS: Compliant Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$30.1100 / $33.1000 | Buy Now |
|
DISTI #
VSC7514XKS-ND
|
DigiKey | IC ETHERNET SWITCH 10-PORT Min Qty: 1 Lead time: 4 Weeks Container: Tray |
122 In Stock |
|
$31.9875 / $39.7300 | Buy Now |
|
DISTI #
VSC7514XKS
|
Avnet Americas | Ethernet Switch 10-Port 10Mbps/100Mbps/1000Mbps 256-Pin PBGA Tray - Trays (Alt: VSC7514XKS) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 4 Weeks, 0 Days Container: Tray | 0 |
|
$29.9403 / $31.9875 | Buy Now |
|
DISTI #
494-VSC7514XKS
|
Mouser Electronics | Ethernet ICs 10 Port Industrial Ethernet Switch with 4 Integrated Cu PHYs RoHS: Compliant | 11 |
|
$31.9800 / $39.7300 | Buy Now |
|
DISTI #
VSC7514XKS
|
Microchip Technology Inc | 10 Port Industrial Ethernet Switch with 4 Integrated Cu PHYs, PBGA, Projected EOL: 2044-10-19 COO: Taiwan ECCN: 5A991.c RoHS: Compliant Lead time: 12 Weeks, 0 Days Container: Tray |
2340 Alternates Available |
|
$26.3800 / $39.7300 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 9810 Factory Stock |
|
$31.5300 / $65.0900 | Buy Now |
|
DISTI #
68455892
|
Verical | Ethernet Switch 10-Port 1000Mbps 256-Pin PBGA Tray RoHS: Compliant Min Qty: 70 Package Multiple: 70 | Americas - 70 |
|
$68.7274 | Buy Now |
|
|
NAC | RoHS: Compliant Min Qty: 90 Package Multiple: 90 | 0 |
|
$31.2100 / $36.5600 | Buy Now |
|
DISTI #
VSC7514XKS
|
Avnet Silica | Ethernet Switch 10Port 10Mbps100Mbps1000Mbps 256Pin PBGA Tray (Alt: VSC7514XKS) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 6 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
VSC7514XKS
|
EBV Elektronik | Ethernet Switch 10Port 10Mbps100Mbps1000Mbps 256Pin PBGA Tray (Alt: VSC7514XKS) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 5 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for VSC7514XKS
VSC7514XKS CAD Models
VSC7514XKS Part Data Attributes
|
|
VSC7514XKS
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
VSC7514XKS
Microchip Technology Inc
Telecom Circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A991.C | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Microchip | |
| JESD-30 Code | S-PBGA-B256 | |
| JESD-609 Code | e1 | |
| Length | 17 mm | |
| Moisture Sensitivity Level | 4 | |
| Number of Functions | 1 | |
| Number of Terminals | 256 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Equivalence Code | BGA256,16X16,40 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.8 mm | |
| Supply Current-Max | 1800 mA | |
| Supply Voltage-Nom | 1 V | |
| Surface Mount | YES | |
| Telecom IC Type | ETHERNET SWITCH | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5) | |
| Terminal Form | BALL | |
| Terminal Pitch | 1 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 17 mm |
VSC7514XKS Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter or a ferrite bead to reduce EMI.
-
Use a thermal management strategy such as heat sinks, thermal interfaces, or thermal vias to keep the junction temperature below 125°C. Ensure proper airflow and avoid thermal hotspots.
-
Use a low-noise, low-ESR power supply with a minimum of 1.8V and a maximum of 3.3V. Ensure the power supply can provide the required current (up to 1.5A) and has a low dropout voltage.
-
Use a high-quality clock source with a low jitter (<100ps) and a frequency range of 25MHz to 125MHz. Ensure the clock signal is properly terminated and routed to minimize skew and jitter.
-
Use controlled impedance routing, keep signal traces short and away from noise sources, and use differential signaling where possible. Avoid vias and right-angle turns in critical signal paths.
