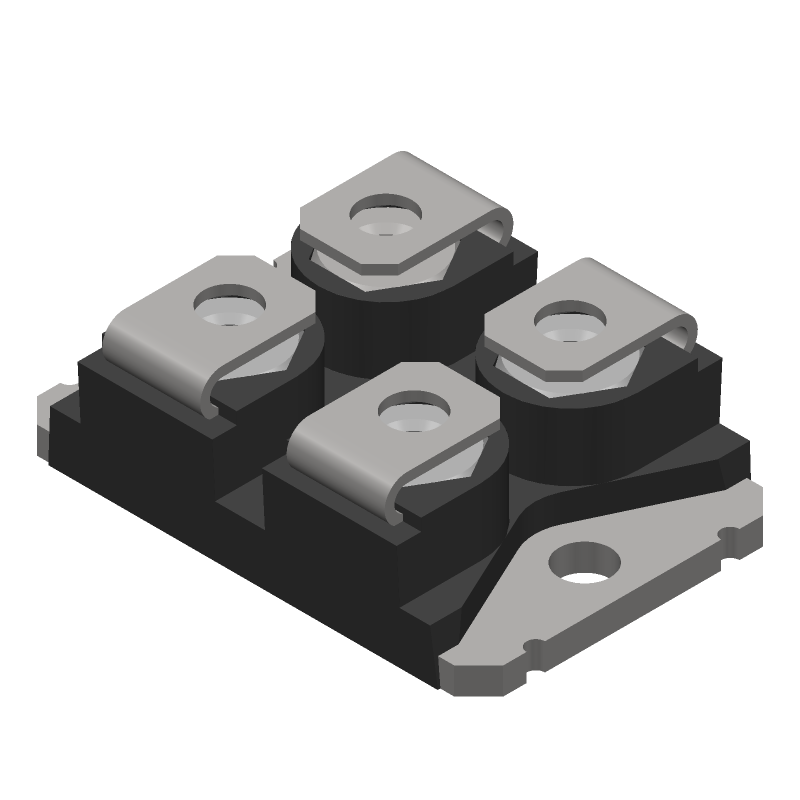

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VS-QA250FA20 by Vishay Intertechnologies
Results Overview of VS-QA250FA20 by Vishay Intertechnologies
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
VS-QA250FA20 Information
VS-QA250FA20 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VS-QA250FA20
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH9127
|
Newark | Diode Module, 1.2V, 250A Rohs Compliant: Yes |Vishay VS-QA250FA20 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 428 |
|
$17.5000 / $26.5300 | Buy Now |
|
DISTI #
64AH9127
|
Avnet Americas | Modules Rectifiers - SOT-227 SK TMBS - Bulk (Alt: 64AH9127) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Bulk | 34 Partner Stock |
|
$19.8200 / $26.5300 | Buy Now |
|
DISTI #
VS-QA250FA20
|
Avnet Americas | Modules Rectifiers - SOT-227 SK TMBS - Rail/Tube (Alt: VS-QA250FA20) RoHS: Not Compliant Min Qty: 160 Package Multiple: 160 Lead time: 12 Weeks, 0 Days Container: Tube | 0 |
|
$16.4706 / $17.5000 | Buy Now |
|
DISTI #
78-VS-QA250FA20
|
Mouser Electronics | Schottky Diodes & Rectifiers 200V 250A Module SOT-227 RoHS: Compliant | 1165 |
|
$17.5000 / $26.8000 | Buy Now |
|
DISTI #
E02:0323_11587050
|
Arrow Electronics | Diode Schottky 183A 4-Pin SOT-227 Tube RoHS: Compliant Min Qty: 150 Package Multiple: 10 Lead time: 12 Weeks Date Code: 2509 | Europe - 150 |
|
$21.1637 | Buy Now |
|
DISTI #
87990248
|
Verical | Diode Schottky 183A 4-Pin SOT-227 Tube RoHS: Compliant Min Qty: 150 Package Multiple: 150 | Americas - 150 |
|
$21.0322 | Buy Now |
|
DISTI #
VS-QA250FA20
|
TTI | Schottky Diodes & Rectifiers 200V 250A Module SOT-227 RoHS: Compliant pbFree: Pb-Free Min Qty: 10 Package Multiple: 10 Container: Kit |
Americas - 650 In Stock |
|
$23.3300 / $24.5000 | Buy Now |
|
DISTI #
VS-QA250FA20
|
TME | Module: diode, double independent, 200V, If: 250A, SOT227B, screw Min Qty: 1 | 0 |
|
$20.5200 / $25.6500 | RFQ |
|
DISTI #
VS-QA250FA20
|
EBV Elektronik | Modules Rectifiers SOT227 SK TMBS (Alt: VS-QA250FA20) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 110 |
|
RFQ |
Part Details for VS-QA250FA20
VS-QA250FA20 CAD Models
VS-QA250FA20 Part Data Attributes
|
|
VS-QA250FA20
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VS-QA250FA20
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 2 Element, 250A, 200V V(RRM), Silicon, MODULE-4
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | MODULE-4 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 16 Weeks, 4 Days | |
| Date Of Intro | 2017-03-22 | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | PD-CASE | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.2 V | |
| JESD-30 Code | R-PUFM-X4 | |
| Non-rep Pk Forward Current-Max | 900 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 250 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Power Dissipation-Max | 182 W | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Reverse Current-Max | 90 µA | |
| Reverse Recovery Time-Max | 0.054 µs | |
| Surface Mount | NO | |
| Technology | SCHOTTKY | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UPPER | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
VS-QA250FA20 Frequently Asked Questions (FAQ)
-
The recommended storage condition for the VS-QA250FA20 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
-
Yes, the VS-QA250FA20 is designed for high-reliability applications, including aerospace, defense, and industrial control systems, due to its high-quality construction and rigorous testing.
-
The VS-QA250FA20 is designed to handle surge currents up to 250 A, making it suitable for applications where high inrush currents are expected.
-
Yes, the VS-QA250FA20 is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
-
The typical response time of the VS-QA250FA20 is less than 1 ms, making it suitable for applications where fast response times are critical.
