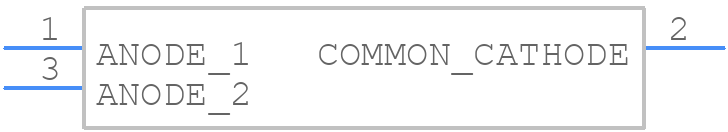

Part Symbol
-

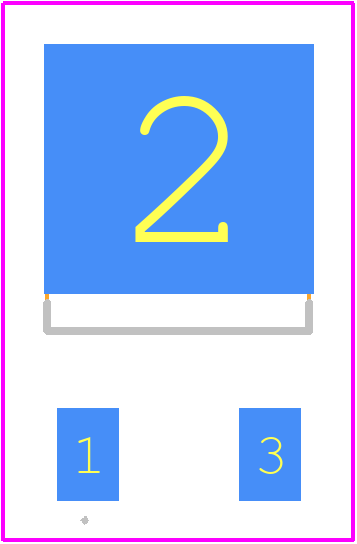

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VS-6CWQ10FN-M3 by Vishay Intertechnologies
Results Overview of VS-6CWQ10FN-M3 by Vishay Intertechnologies
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VS-6CWQ10FN-M3 Information
VS-6CWQ10FN-M3 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VS-6CWQ10FN-M3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AC3979
|
Newark | Schottky Rect, Dual, 100V, To-252Aa, Repetitive Reverse Voltage Vrrm Max:100V, Forward Current If(Av):7A, Diode Configuration:Dual Common Cathode, Diode Case Style:To-252Aa, No. Of Pins:4Pins, Forward Voltage Vf Max:960Mv, Forward Rohs Compliant: Yes |Vishay VS-6CWQ10FN-M3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 4 |
|
$0.7390 / $0.9810 | Buy Now |
|
DISTI #
VS-6CWQ10FN-M3
|
Avnet Americas | Schottky - D-PAK - Tape and Reel (Alt: VS-6CWQ10FN-M3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks, 0 Days Container: Reel | 12000 |
|
$0.2471 / $0.2625 | Buy Now |
|
DISTI #
844-6CWQ10FN-M3
|
Mouser Electronics | Schottky Diodes & Rectifiers 2X3.5A 100V Common Cathode RoHS: Compliant | 6021 |
|
$0.2760 / $0.7200 | Buy Now |
|
DISTI #
E02:0323_03484898
|
Arrow Electronics | Diode Schottky 100V 7A 3-Pin(2+Tab) DPAK Tube Min Qty: 3000 Package Multiple: 75 Lead time: 11 Weeks Date Code: 2451 | Europe - 6000 |
|
$0.3582 | Buy Now |
|
DISTI #
V99:2348_09179611
|
Arrow Electronics | Diode Schottky 100V 7A 3-Pin(2+Tab) DPAK Tube Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2241 | Americas - 2946 |
|
$0.2665 / $0.2876 | Buy Now |
|
DISTI #
87556982
|
Verical | Diode Schottky 100V 7A 3-Pin(2+Tab) DPAK Tube Min Qty: 3000 Package Multiple: 3000 Date Code: 2451 | Americas - 6000 |
|
$0.3611 | Buy Now |
|
|
Quest Components | 64 |
|
$0.8643 / $1.7285 | Buy Now | |
|
DISTI #
VS-6CWQ10FN-M3
|
TTI | Schottky Diodes & Rectifiers 2X3.5A 100V Common Cathode RoHS: Compliant pbFree: Pb-Free Min Qty: 75 Package Multiple: 75 Container: Tube |
Americas - 34800 In Stock |
|
$0.2560 / $0.2880 | Buy Now |
|
|
Future Electronics | VS-6CWQ10FN Series 100 V 2 x 3.5 A High Performance Schottky Rectifier - D-PAK-3 Min Qty: 75 Package Multiple: 75 |
2775 null |
|
$0.2600 / $0.2850 | Buy Now |
|
DISTI #
VS-6CWQ10FN-M3
|
TME | Diode: Schottky rectifying, DPAK, SMD, 100V, 3.5Ax2, tube Min Qty: 1 | 2151 |
|
$0.5130 / $0.7690 | Buy Now |
Part Details for VS-6CWQ10FN-M3
VS-6CWQ10FN-M3 CAD Models
VS-6CWQ10FN-M3 Part Data Attributes
|
|
VS-6CWQ10FN-M3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VS-6CWQ10FN-M3
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 2 Element, 7A, 100V V(RRM), Silicon, TO-252AA, SIMILAR TO TO-252AA, DPAK-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Case Connection | CATHODE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.63 V | |
| JEDEC-95 Code | TO-252AA | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 440 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Output Current-Max | 7 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE |
