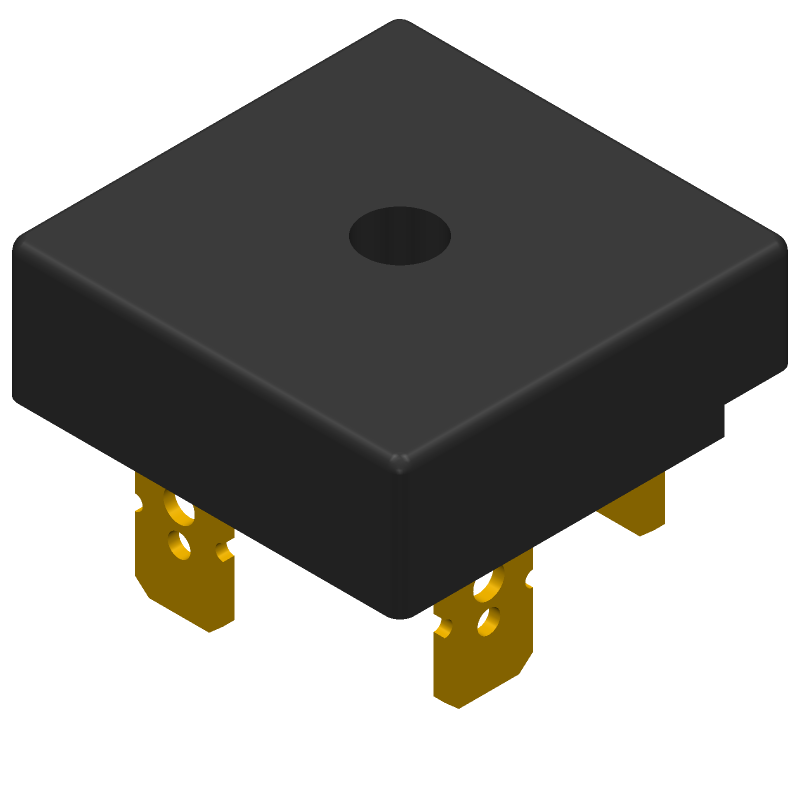

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VS-36MB20A by Vishay Intertechnologies
Results Overview of VS-36MB20A by Vishay Intertechnologies
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VS-36MB20A Information
VS-36MB20A by Vishay Intertechnologies is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VS-36MB20A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48F1229
|
Newark | Bridge Rectifier Modules, Single Phase, 35A, 200V, Qc, No. Of Phases:Single Phase, Repetitive Peak Reverse Voltage:200V, Average Forward Current:35A, Bridge Rectifier Case Style:Module, No. Of Pins:4Pins, Forward Voltage Max:1.14V Rohs Compliant: Yes |Vishay VS-36MB20A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 151 |
|
$4.1900 / $7.8300 | Buy Now |
|
DISTI #
98K8878
|
Newark | Bridge Rectifier Modules, Single Phase, 35A, 200V, Qc, No. Of Phases:Single, Repetitive Reverse Voltage Vrrm Max:200V, Forward Current If(Av):35A, Forward Voltage Vf Max:1.14V, Bridge Rectifier Case Style:Module, No. Of Pins:4, Msl:-Rohs Compliant: Yes |Vishay VS-36MB20A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$5.2400 / $7.8300 | Buy Now |
|
DISTI #
VS-36MB20A
|
Avnet Americas | Diode Rectifier Bridge Single 200V 35A 4-Pin D-34 - Bulk (Alt: VS-36MB20A) RoHS: Compliant Min Qty: 20 Package Multiple: 20 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$4.5984 / $4.6942 | Buy Now |
|
DISTI #
844-36MB20A
|
Mouser Electronics | Bridge Rectifiers 200 Volt 35 Amp RoHS: Compliant | 0 |
|
$4.5700 / $8.0600 | Order Now |
|
DISTI #
70078752
|
RS | Diode, Bridge Rectifier, Vr 200V, If 35A, Pkg MB, Vf 1.14V Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks, 0 Days Container: Bulk | 35 |
|
$7.0600 / $9.4100 | Buy Now |
|
DISTI #
VS-36MB20A
|
TTI | Bridge Rectifiers 200 Volt 35 Amp pbFree: Pb-Free Min Qty: 20 Package Multiple: 20 Container: Bulk | Americas - 0 |
|
$5.5900 / $6.0500 | Buy Now |
|
DISTI #
VS-36MB20A
|
TME | Bridge rectifier: single-phase, Urmax: 200V, If: 35A, Ifsm: 475A Min Qty: 1 | 16 |
|
$5.7300 / $7.0500 | Buy Now |
|
DISTI #
VS-36MB20A
|
EBV Elektronik | Diode Rectifier Bridge Single 200V 35A 4Pin D34 (Alt: VS-36MB20A) RoHS: Compliant Min Qty: 20 Package Multiple: 20 Lead time: 9 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 35A 200V Bridge Rectifiers ROHS | 6 |
|
$6.6202 / $6.9491 | Buy Now |
Part Details for VS-36MB20A
VS-36MB20A CAD Models
VS-36MB20A Part Data Attributes
|
|
VS-36MB20A
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VS-36MB20A
Vishay Intertechnologies
Bridge Rectifier Diode, 1 Phase, 35A, 200V V(RRM), Silicon, ROHS COMPLIANT, D-34, 4 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | ROHS COMPLIANT, D-34, 4 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Vishay | |
| Case Connection | ISOLATED | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.14 V | |
| JESD-30 Code | S-PUFM-D4 | |
| JESD-609 Code | e1 | |
| Non-rep Pk Forward Current-Max | 500 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 35 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | FLANGE MOUNT | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Surface Mount | NO | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | SOLDER LUG | |
| Terminal Position | UPPER |
VS-36MB20A Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the VS-36MB20A is a rectangular pad with a minimum size of 2.5 mm x 1.5 mm, with a 1.5 mm diameter hole in the center for the anode lead.
-
Yes, the VS-36MB20A is designed for high-reliability applications and meets the requirements of MIL-PRF-19500/228. It is also qualified to AEC-Q101 standards for automotive applications.
-
The maximum surge current rating for the VS-36MB20A is 100 A for a 10/1000 μs waveform, as per IEC 61000-4-5.
-
Yes, the VS-36MB20A is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
-
The typical response time for the VS-36MB20A is less than 1 ns, making it suitable for high-speed applications.
