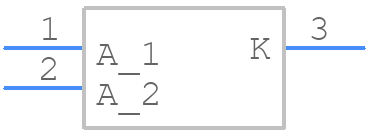

Part Symbol
-

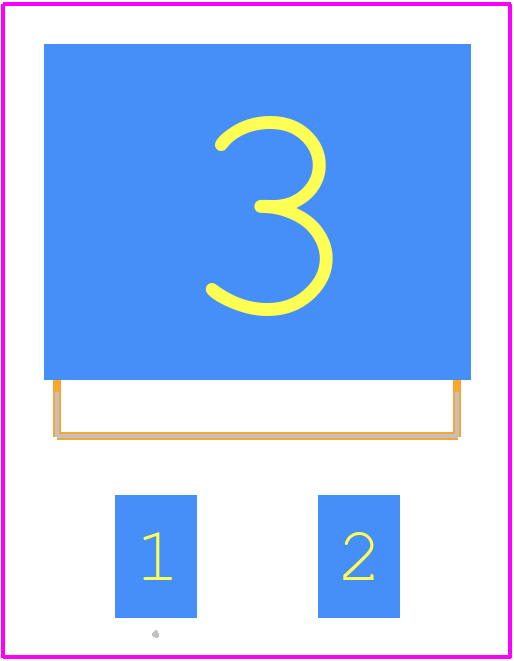

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VS-12CDU06HM3/I by Vishay Intertechnologies
Results Overview of VS-12CDU06HM3/I by Vishay Intertechnologies
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
VS-12CDU06HM3/I Information
VS-12CDU06HM3/I by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VS-12CDU06HM3/I
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13AC4297
|
Newark | Rectifier, Aec-Q101, 12A, 600V, To-263Ac, Repetitive Reverse Voltage Vrrm Max:600V, Forward Current If(Av):12A, Diode Configuration:Dual Common Cathode, Forward Voltage Vf Max:1.3V, Reverse Recovery Time Trr Max:65Ns, Forward Surge Rohs Compliant: Yes |Vishay VS-12CDU06HM3/I RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 135 |
|
$0.2550 | Buy Now |
|
DISTI #
49Y3073
|
Newark | Freds - Smpd |Vishay VS-12CDU06HM3/I RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.6980 / $0.8110 | Buy Now |
|
DISTI #
13AC4297
|
Avnet Americas | Freds - SMPD - Product that comes on tape, but is not reeled (Alt: 13AC4297) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 4 Days Container: Ammo Pack | 135 Partner Stock |
|
$1.1300 / $1.8200 | Buy Now |
|
DISTI #
VS-12CDU06HM3/I
|
Avnet Americas | Freds - SMPD - Bulk (Alt: VS-12CDU06HM3/I) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 5 Weeks, 0 Days Container: Bulk | 0 |
|
$0.5529 / $0.5875 | Buy Now |
|
DISTI #
78-VS-12CDU06HM3I
|
Mouser Electronics | Rectifiers Dual 2x6A 600V FRED Pt AEC-Q101 RoHS: Compliant | 2367 |
|
$0.5870 / $1.6400 | Buy Now |
|
|
Bristol Electronics | 1914 |
|
RFQ | ||
|
|
Quest Components | 1531 |
|
$0.8241 / $2.3545 | Buy Now | |
|
DISTI #
VS-12CDU06HM3/I
|
TTI | Rectifiers Dual 2x6A 600V FRED Pt AEC-Q101 RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.5730 / $0.6200 | Buy Now |
|
DISTI #
VS-12CDU06HM3/I
|
TME | Diode: rectifying, SMD, 600V, 6Ax2, 90ns, SMPD, Ufmax: 1.1V, Ir: 150uA Min Qty: 1 | 0 |
|
$0.9000 / $1.3500 | RFQ |
|
DISTI #
VS-12CDU06HM3/I
|
EBV Elektronik | Freds SMPD (Alt: VS-12CDU06HM3/I) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 6 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for VS-12CDU06HM3/I
VS-12CDU06HM3/I CAD Models
VS-12CDU06HM3/I Part Data Attributes
|
|
VS-12CDU06HM3/I
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VS-12CDU06HM3/I
Vishay Intertechnologies
Rectifier Diode, 1 Phase, 2 Element, 6A, 600V V(RRM), Silicon, TO-263AC, HALOGEN FREE AND ROHS COMPLIANT, SMPD, 3/2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 20 Weeks, 4 Days | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, LOW LEAKAGE CURRENT | |
| Application | ULTRA FAST SOFT RECOVERY | |
| Case Connection | CATHODE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.3 V | |
| JEDEC-95 Code | TO-263AC | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 105 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 6 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 0.06 µs | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
VS-12CDU06HM3/I Frequently Asked Questions (FAQ)
-
The recommended PCB layout and land pattern for the VS-12CDU06HM3/I can be found in Vishay's application note AN10343. It provides guidelines for PCB design, thermal management, and component placement to ensure optimal performance and reliability.
-
The VS-12CDU06HM3/I has a high power dissipation capability, and proper thermal management is crucial. Vishay recommends using a heat sink with a thermal interface material, and ensuring good airflow around the device. The application note AN10343 provides more detailed guidance on thermal management.
-
The maximum allowed voltage derating for the VS-12CDU06HM3/I is typically 80% of the maximum rated voltage. However, it's recommended to consult with Vishay's application engineers or refer to the device's reliability report for specific derating guidelines.
-
The VS-12CDU06HM3/I is a commercial-grade device, but Vishay offers a range of high-reliability and aerospace-grade versions of this device. Engineers should contact Vishay's sales team or application engineers to discuss specific requirements and obtain the necessary documentation and certifications.
-
To ensure EMC, engineers should follow good design practices, such as using proper shielding, grounding, and filtering. Vishay recommends consulting the application note AN10343 and relevant industry standards, such as IEC 61000-4, to ensure the device's EMC in the specific application.
