Power Circuits / Power Supply Modules / VQE50W-Q24-S3R3
Datasheets

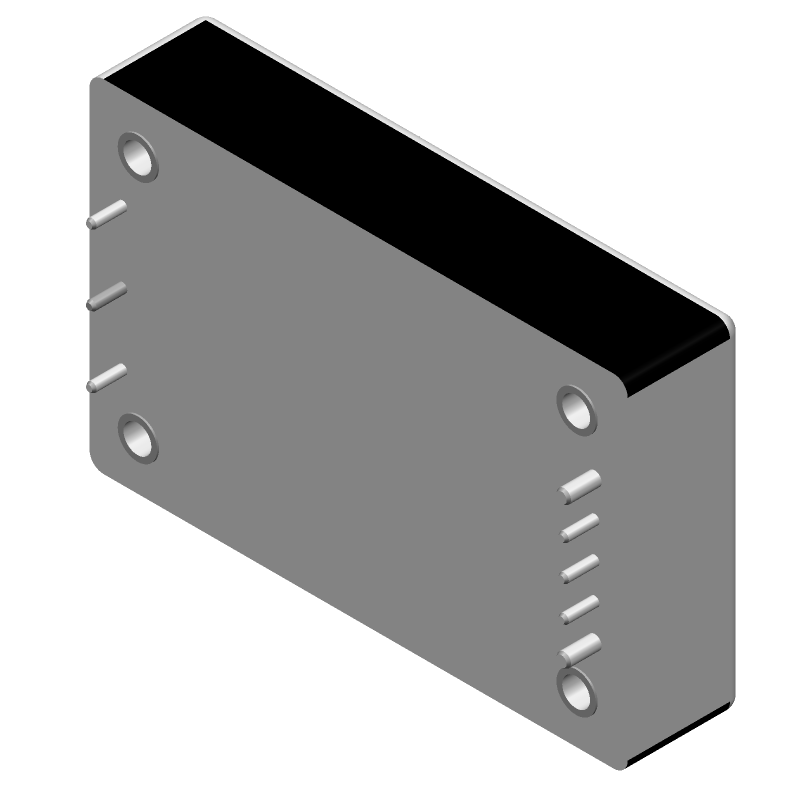

VQE50W-Q24-S3R3 by:

3.3 Vdc, 10 A, 33 W, 9~36 Vdc Input Range

Part Details for VQE50W-Q24-S3R3 by CUI Inc

Results Overview of VQE50W-Q24-S3R3 by CUI Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Environmental Monitoring Internet of Things (IoT) Smart Cities Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Consumer Electronics Education and Research Security and Surveillance Aerospace and Defense Healthcare Robotics and Drones

VQE50W-Q24-S3R3 Information

VQE50W-Q24-S3R3 by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for VQE50W-Q24-S3R3

Part # Distributor Description Stock Price Buy
DISTI # 25AM2406
Newark Dc-Dc Isolated, 33 W, 9~36 Vdc Input, 3.3 Vdc, 10 |Cui VQE50W-Q24-S3R3 RoHS: Not Compliant Min Qty: 2 Package Multiple: 1 Date Code: 0 Container: Bulk 28
  • 1 $190.0000
  • 5 $169.6600
  • 10 $157.5100
  • 25 $137.0800
  • 50 $123.2200
  • 100 $114.3300
$114.3300 / $190.0000 Buy Now
DISTI # 2266-VQE50W-Q24-S3R3-ND
DigiKey DC DC CONVERTER 3.3V 50W Min Qty: 1 Lead time: 29 Weeks Container: Tray MARKETPLACE PRODUCT 28
In Stock
  • 1 $111.9500
  • 4 $109.8700
  • 7 $107.8000
  • 13 $105.7300
$105.7300 / $111.9500 Buy Now
DISTI # 102-2621-ND
DigiKey DC DC CONVERTER 3.3V 50W Min Qty: 1 Lead time: 29 Weeks Container: Box Temporarily Out of Stock
  • 60 $110.2770
$110.2770 Buy Now
DISTI # 490-VQE50W-Q24-S3R3
Mouser Electronics Isolated DC/DC Converters - Through Hole dc-dc isolated, 33 W, 9-36 Vdc input, 3.3 Vdc, 10 A, single output, DIP 0
  • 60 $104.8000
$104.8000 Order Now
Onlinecomponents.com 50 W, 4:1 Input Range, Single Regulated Output, 1/4 Brick, 1500 Vdc Isolation, Dc-Dc Converter - 3.3 Vdc, 10 A, 33 W, 9~36 Vdc Input Range RoHS: Compliant 28 Partner Stock
  • 1 $260.9900
  • 5 $257.0800
  • 10 $253.2200
  • 15 $249.4200
  • 30 $132.0500
  • 45 $92.9200
  • 60 $91.0600
$91.0600 / $260.9900 Buy Now
DISTI # 000000000006368046
Sager Isolated DC/DC Converters - Through Hole dc-dc isolated, 33 W, 9-36 Vdc input, 3.3 Vdc, 10 A, single output, DIP Min Qty: 1 0
  • 1 $112.8600
  • 10 $106.3200
  • 20 $101.8900
  • 100 $97.8100
$97.8100 / $112.8600 Buy Now
Master Electronics 50 W, 4:1 Input Range, Single Regulated Output, 1/4 Brick, 1500 Vdc Isolation, Dc-Dc Converter - 3.3 Vdc, 10 A, 33 W, 9~36 Vdc Input Range RoHS: Compliant 28 Partner Stock
  • 1 $260.9900
  • 5 $257.0800
  • 10 $253.2200
  • 15 $249.4200
  • 30 $132.0500
  • 45 $92.9200
  • 60 $91.0600
$91.0600 / $260.9900 Buy Now

Part Details for VQE50W-Q24-S3R3

VQE50W-Q24-S3R3 Part Data Attributes

Parametric Data
VQE50W-Q24-S3R3 CUI Inc
Buy Now Datasheet
Compare Parts:
VQE50W-Q24-S3R3 CUI Inc 3.3 Vdc, 10 A, 33 W, 9~36 Vdc Input Range
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer CUI INC
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer CUI Inc.
Additional Feature REMOTE SHUTDOWN
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Approvals CE, UL
Efficiency (Main Output) 90.5%
Input Voltage-Max 36 V
Input Voltage-Min 9 V
Input Voltage-Nom 24 V
Length 57.9 mm
Line Regulation-Max 0.2%
Load Regulation-Max 0.2%
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Output Current-Max 10 A
Output Voltage-Max 3.63 V
Output Voltage-Min 2.97 V
Output Voltage-Nom 3.3 V
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Ripple Voltage (Main Out) 0.03535 Vrms
Surface Mount NO
Terminal Form PIN/PEG
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 33 W
Width 36.8 mm

Alternate Parts for VQE50W-Q24-S3R3

This table gives cross-reference parts and alternative options found for VQE50W-Q24-S3R3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VQE50W-Q24-S3R3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AM50E-2403SZ Aimtec $76.6713 DC/DC Converter; Product Weight (grams): 45; Input voltage min (V): 18; Input voltage max (V): 36; Output voltage min: 3.3; Output voltage max: 3.3; Output voltage dual assymetric (y/n): Single; Output Power (W): 50; Max Output current (A): 10; Efficiency (%): 92; Max Capacitive load (µF): 26000; Package type: 2x1; Mounting: PCB; W (in): 1; L (in): 2; H (in): 0.45; W (mm): 25.4; L (mm): 50.8; H (mm): 11.5; Min Operating temperature: -40; Max operating temperature (°C): 95; Isolation (VDC): 1600; EMC compliance 1: EN 55032 Class A; Case material: Copper; Application 4 (building automation/IoT): 1; MTBF (h): 200000; Derating : 50; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 100; Switching Frequency typ (KHz): 270; Short circuit protection: Continuous; On/Off Control: 1; Voltage adjustment: 1 VQE50W-Q24-S3R3 vs AM50E-2403SZ
AM50E-2403SZ-K Aimtec $79.2328 DC/DC Converter; Product Weight (grams): 52.3; Input voltage min (V): 18; Input voltage max (V): 36; Output voltage min: 3.3; Output voltage max: 3.3; Output voltage dual assymetric (y/n): Single; Output Power (W): 50; Max Output current (A): 10; Efficiency (%): 92; Max Capacitive load (µF): 26000; Package type: 2x1; Mounting: PCB; W (in): 1; L (in): 2; H (in): 0.69; W (mm): 25.4; L (mm): 50.8; H (mm): 16.3; Min Operating temperature: -40; Max operating temperature (°C): 95; Isolation (VDC): 1600; EMC compliance 1: EN 55032 Class A; Case material: Copper; Application 4 (building automation/IoT): 1; MTBF (h): 200000; Derating : 56; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 100; Switching Frequency typ (KHz): 270; Short circuit protection: Continuous; On/Off Control: 1; Voltage adjustment: 1 VQE50W-Q24-S3R3 vs AM50E-2403SZ-K
VI-LCWY-CY Vicor Corporation Check for Price DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-10 VQE50W-Q24-S3R3 vs VI-LCWY-CY
VI-LC1Y-MY-CC Vicor Corporation Check for Price DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-10 VQE50W-Q24-S3R3 vs VI-LC1Y-MY-CC
VI-LCWY-CYH1-CC Vicor Corporation Check for Price DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-10 VQE50W-Q24-S3R3 vs VI-LCWY-CYH1-CC
VI-LC1Y-IY Vicor Corporation Check for Price DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-10 VQE50W-Q24-S3R3 vs VI-LC1Y-IY
VHK50W-Q24-S3R3 CUI Inc Check for Price 3.3 Vdc, 10 A, 33 W, 9~36 Vdc Input Range VQE50W-Q24-S3R3 vs VHK50W-Q24-S3R3
AM50E-2403S-NZ-K-ST Aimtec Check for Price DC-DC Regulated Power Supply Module, VQE50W-Q24-S3R3 vs AM50E-2403S-NZ-K-ST
VI-LC1Y-MY Vicor Corporation Check for Price DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-10 VQE50W-Q24-S3R3 vs VI-LC1Y-MY
VI-LCWY-MY Vicor Corporation Check for Price DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-10 VQE50W-Q24-S3R3 vs VI-LCWY-MY
