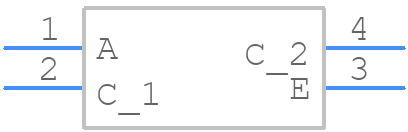

Part Symbol
-

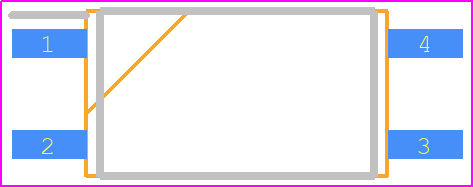

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VOL618A-3T by Vishay Intertechnologies
Results Overview of VOL618A-3T by Vishay Intertechnologies
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
VOL618A-3T Information
VOL618A-3T by Vishay Intertechnologies is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for VOL618A-3T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AH3743
|
Newark | Optocoupler, Transistor, 5Kv, Lsop-4 Rohs Compliant: Yes |Vishay VOL618A-3T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2848 |
|
$0.2250 / $0.6500 | Buy Now |
|
DISTI #
VOL618A-3T
|
Avnet Americas | LSOP-4 CPLR 100-200% CTR IF=1mA -e3 - Tape and Reel (Alt: VOL618A-3T) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$0.1373 / $0.1465 | Buy Now |
|
DISTI #
78-VOL618A-3T
|
Mouser Electronics | Transistor Output Optocouplers Phototransistor Out CTR 100-320% IF=1MA RoHS: Compliant | 10837 |
|
$0.1630 / $0.5100 | Buy Now |
|
DISTI #
E02:0323_04134781
|
Arrow Electronics | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks Date Code: 2510 | Europe - 3000 |
|
$0.1724 | Buy Now |
|
DISTI #
V72:2272_09170683
|
Arrow Electronics | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2207 Container: Cut Strips | Americas - 86 |
|
$0.1544 / $0.2713 | Buy Now |
|
DISTI #
87899290
|
Verical | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2510 | Americas - 3000 |
|
$0.2768 | Buy Now |
|
|
Quest Components | 170 |
|
$0.2975 / $0.5950 | Buy Now | |
|
|
Quest Components | 152 |
|
$0.6340 / $1.2680 | Buy Now | |
|
DISTI #
VOL618A-3T
|
TTI | Transistor Output Optocouplers Phototransistor Out CTR 100-320% IF=1MA RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 21000 In Stock |
|
$0.1660 / $0.1800 | Buy Now |
|
DISTI #
VOL618A-3T
|
TME | Optocoupler, SMD, Ch: 1, OUT: transistor, Uinsul: 5kV, Uce: 80V, LSOP4 Min Qty: 1 | 0 |
|
$0.1890 / $0.5460 | RFQ |
Part Details for VOL618A-3T
VOL618A-3T CAD Models
VOL618A-3T Part Data Attributes
|
|
VOL618A-3T
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VOL618A-3T
Vishay Intertechnologies
Transistor Output Optocoupler, 1-Element, 5000V Isolation, SOP-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SOP-4 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | UL RECOGNIZED | |
| Coll-Emtr Bkdn Voltage-Min | 80 V | |
| Configuration | SINGLE | |
| Current Transfer Ratio-Min | 100% | |
| Current Transfer Ratio-Nom | 100% | |
| Dark Current-Max | 200 nA | |
| Forward Current-Max | 0.06 A | |
| Forward Voltage-Max | 1.5 V | |
| Isolation Voltage-Max | 5000 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| On-State Current-Max | 0.05 A | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER | |
| Power Dissipation-Max | 0.15 W | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) |
VOL618A-3T Frequently Asked Questions (FAQ)
-
Store the device in a dry, cool place, away from direct sunlight, and avoid exposure to moisture, dust, and extreme temperatures.
-
Yes, VOL618A-3T is suitable for high-reliability applications due to its robust design, high-quality materials, and rigorous testing. However, it's essential to follow proper design, manufacturing, and testing guidelines to ensure the device meets the required reliability standards.
-
Handle the device by the body, avoid touching the leads or glass, and use anti-static wrist straps or mats to prevent electrostatic discharge. Follow standard SMT assembly and soldering guidelines, and ensure the device is properly aligned and secured during the assembly process.
-
The maximum allowable voltage for VOL618A-3T is 630V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
-
VOL618A-3T is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation, thermal resistance, and the overall system design to ensure reliable operation in high-temperature environments.
