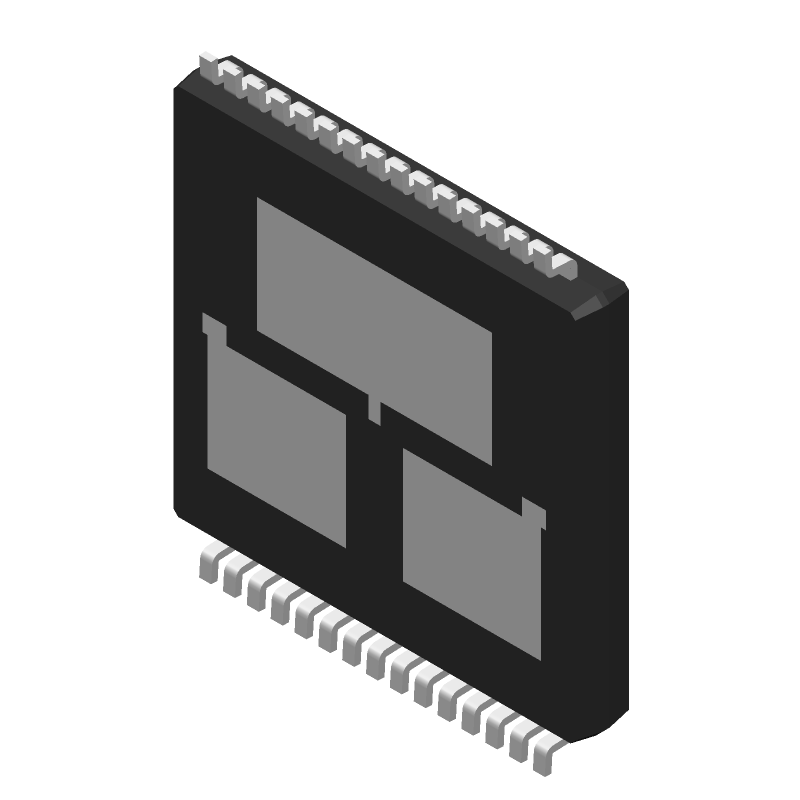

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VNH5019A-E by STMicroelectronics
Results Overview of VNH5019A-E by STMicroelectronics
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Automotive
Robotics and Drones
VNH5019A-E Information
VNH5019A-E by STMicroelectronics is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for VNH5019A-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
VNH5019A-E-ND
|
DigiKey | IC MTR DRV 5.5-24V MULTIPWRSO-30 Lead time: 52 Weeks Container: Tube | Limited Supply - Call |
|
Buy Now | |
|
DISTI #
VNH5019A-E
|
Avnet Silica | HBridge Motor Driver 30Pin PowerSO (Alt: VNH5019A-E) RoHS: Compliant Min Qty: 435 Package Multiple: 29 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
VNH5019A-E
|
EBV Elektronik | HBridge Motor Driver 30Pin PowerSO (Alt: VNH5019A-E) RoHS: Compliant Min Qty: 29 Package Multiple: 29 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Interface ICs | 1052 |
|
RFQ | |
|
|
Win Source Electronics | IC MTR DRV 5.5-24V MULTIPWRSO-30 | 14300 |
|
$10.8813 / $16.3213 | Buy Now |
Part Details for VNH5019A-E
VNH5019A-E CAD Models
VNH5019A-E Part Data Attributes
|
|
VNH5019A-E
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
VNH5019A-E
STMicroelectronics
Automotive fully integrated H-bridge motor driver
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | SOP-30 | |
| Pin Count | 30 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | STMicroelectronics |
VNH5019A-E Frequently Asked Questions (FAQ)
-
The maximum voltage that can be applied to the VM pin is 24V, but it's recommended to keep it below 18V for optimal performance and to prevent overheating.
-
To protect the VNH5019A-E from back-EMF, you can add a freewheeling diode in parallel with the motor, and also ensure that the motor is properly decelerated before switching directions.
-
The maximum current that the VNH5019A-E can handle is 30A peak, but it's recommended to keep the average current below 14A to prevent overheating and ensure reliable operation.
-
To configure the VNH5019A-E for half-bridge operation, connect the EN pin to VCC and the IN pin to the control signal. For full-bridge operation, connect the EN pin to the control signal and the IN pin to VCC.
-
The CS pin is a current sense pin that allows you to monitor the motor current. You can connect a resistor and a capacitor to the CS pin to create a low-pass filter, and then connect the output to an ADC or a comparator to monitor the motor current.
