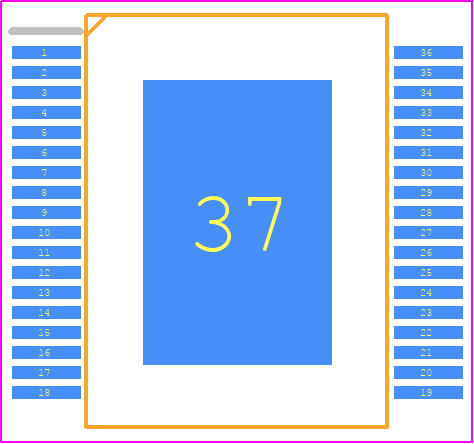

Footprint
-

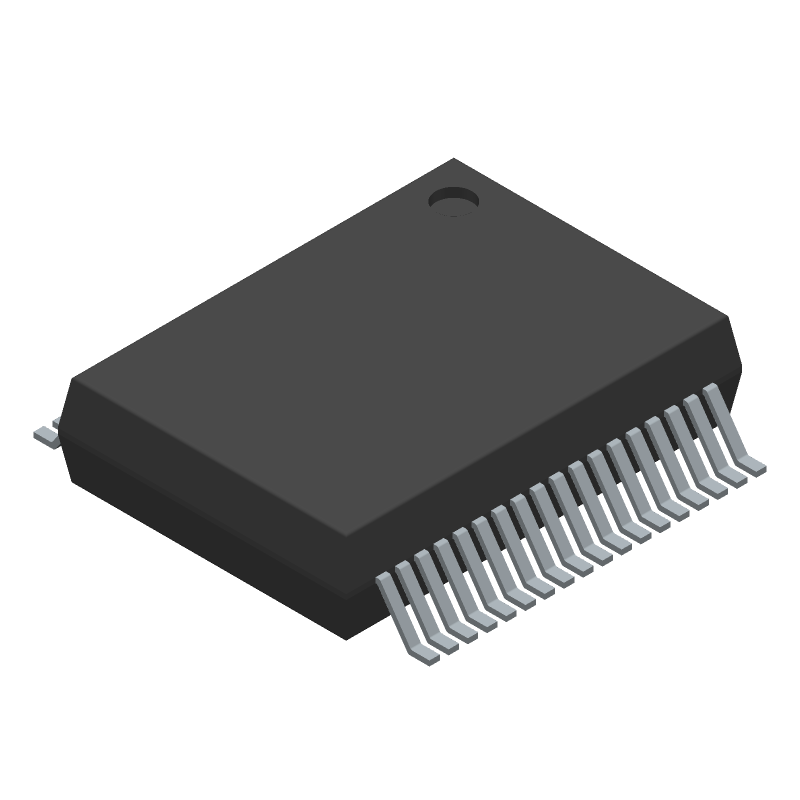

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VND5E008AYTR-E by STMicroelectronics
Results Overview of VND5E008AYTR-E by STMicroelectronics
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
VND5E008AYTR-E Information
VND5E008AYTR-E by STMicroelectronics is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for VND5E008AYTR-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
VND5E008AYTR-E-ND
|
DigiKey | IC PWR DRVR N-CHAN 1:1 PWRSSO36 Min Qty: 1000 Lead time: 26 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.9363 / $4.0205 | Buy Now |
|
DISTI #
VND5E008AYTR-E
|
Avnet Americas | - Tape and Reel (Alt: VND5E008AYTR-E) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days Container: Reel | 0 |
|
$3.8121 / $3.9303 | Buy Now |
|
DISTI #
511-VND5E008AYTR-E
|
Mouser Electronics | Power Switch ICs - Power Distribution Double Ch High Side 41V 8mOhm 76A 2uA RoHS: Compliant | 1000 |
|
$3.9300 / $8.7300 | Buy Now |
|
|
STMicroelectronics | Double channel high side driver with analog current sense for automotive applications RoHS: Compliant Min Qty: 1 | 1000 |
|
$4.4600 / $8.5600 | Buy Now |
|
|
Quest Components | BUFFER/INVERTER BASED PERIPHERAL DRIVER, 2 DRIVER, 76A, PDSO36 | 284 |
|
$7.2750 / $14.5500 | Buy Now |
|
DISTI #
VND5E008AYTR-E
|
Avnet Silica | (Alt: VND5E008AYTR-E) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
VND5E008AYTR-E
|
EBV Elektronik | (Alt: VND5E008AYTR-E) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 27 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | IC DRIVER HIGH SIDE 2CH PWRSSO36 | 2000 |
|
$4.8641 / $7.2961 | Buy Now |
Part Details for VND5E008AYTR-E
VND5E008AYTR-E CAD Models
VND5E008AYTR-E Part Data Attributes
|
|
VND5E008AYTR-E
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
VND5E008AYTR-E
STMicroelectronics
Double channel high side driver with analog current sense for automotive applications
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SSOP | |
| Package Description | ROHS COMPLIANT, SSOP-36 | |
| Pin Count | 36 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Built-in Protections | TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE | |
| Driver Number of Bits | 2 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G36 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 36 | |
| Output Current Flow Direction | SINK | |
| Output Current-Max | 5 A | |
| Output Peak Current Limit-Nom | 76 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSSOP | |
| Package Equivalence Code | SSOP36,.4,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 2.47 mm | |
| Supply Voltage-Max | 28 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 13 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
VND5E008AYTR-E Frequently Asked Questions (FAQ)
-
A good PCB layout for the VND5E008AYTR-E involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal pad to dissipate heat efficiently.
-
The VND5E008AYTR-E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, grounding straps, and wrist straps to prevent damage to the device.
-
To troubleshoot issues with the VND5E008AYTR-E, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that there are no signs of physical damage. Use an oscilloscope to analyze the input and output waveforms, and consult the datasheet and application notes for guidance.
-
The VND5E008AYTR-E has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink or thermal pad if necessary, and avoid blocking the airflow around the device. Monitor the device temperature and adjust the thermal management strategy accordingly.
