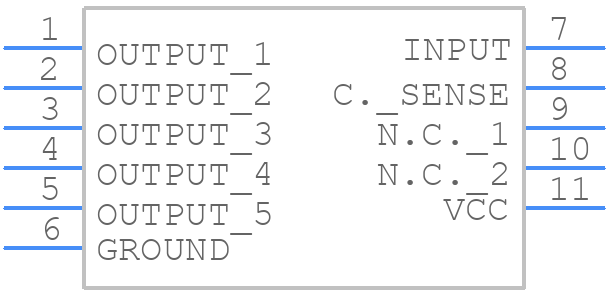

Part Symbol
-

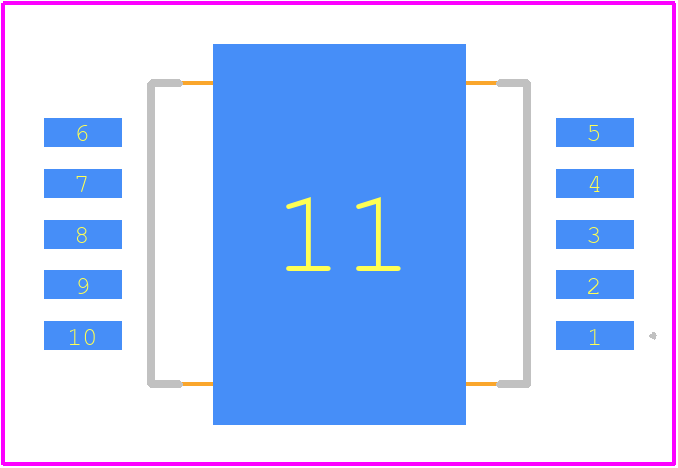

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VN610SP-E by STMicroelectronics
Results Overview of VN610SP-E by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
Motor control systems
VN610SP-E Information
VN610SP-E by STMicroelectronics is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for VN610SP-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57P5327
|
Newark | Lgs Vipower |Stmicroelectronics VN610SP-E RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
Quest Components | BUFFER/INVERTER BASED PERIPHERAL DRIVER, 1 DRIVER, PDSO10 | 3 |
|
$3.2000 / $4.8000 | Buy Now |
|
DISTI #
VN610SP-E
|
Avnet Silica | Power Switch Hi Side 45A 10Pin102Tab PowerSO Tube (Alt: VN610SP-E) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
VN610SP-E
|
EBV Elektronik | Power Switch Hi Side 45A 10Pin102Tab PowerSO Tube (Alt: VN610SP-E) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Interface ICs | 1053 |
|
RFQ | |
|
|
Win Source Electronics | SINGLE CHANNEL HIGH SIDE DRIVER | 1900 |
|
$3.9239 / $5.8858 | Buy Now |
Part Details for VN610SP-E
VN610SP-E CAD Models
VN610SP-E Part Data Attributes
|
|
VN610SP-E
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
VN610SP-E
STMicroelectronics
SINGLE CHANNEL HIGH SIDE SOLID STATE RELAY
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, POWER, SO-10 | |
| Pin Count | 10 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Built-in Protections | TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE | |
| Driver Number of Bits | 1 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 9.4 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Output Current Flow Direction | SINK | |
| Output Current-Max | 45 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSOP | |
| Package Equivalence Code | SOP10,.55FL | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Peak Reflow Temperature (Cel) | 250 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.75 mm | |
| Supply Voltage-Max | 36 V | |
| Supply Voltage-Min | 5.5 V | |
| Supply Voltage-Nom | 13 V | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for VN610SP-E
This table gives cross-reference parts and alternative options found for VN610SP-E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VN610SP-E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| VN610SP13TR | STMicroelectronics | Check for Price | BUF OR INV BASED PRPHL DRVR, PDSO10, ROHS COMPLIANT, POWER, SO-10 | VN610SP-E vs VN610SP13TR |
VN610SP-E Frequently Asked Questions (FAQ)
-
STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The VN610SP-E has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured to enter a low-power state by setting the STBY pin high. Refer to the datasheet for specific timing and voltage requirements.
-
The VN610SP-E is rated for operation from -40°C to 150°C (junction temperature). However, the device can be operated at temperatures up to 175°C for short periods of time, but this may affect its reliability and lifespan.
-
STMicroelectronics provides a troubleshooting guide in the application note AN2861, which includes a step-by-step procedure for identifying and resolving common issues with the VN610SP-E. Additionally, the datasheet provides information on diagnostic pins and error detection mechanisms.
-
The VN610SP-E is designed to withstand vibrations up to 10g RMS (root mean square) in the frequency range of 10-2000 Hz. However, it's recommended to follow proper mounting and soldering procedures to ensure the device is securely attached to the PCB and can withstand the expected vibration levels.
