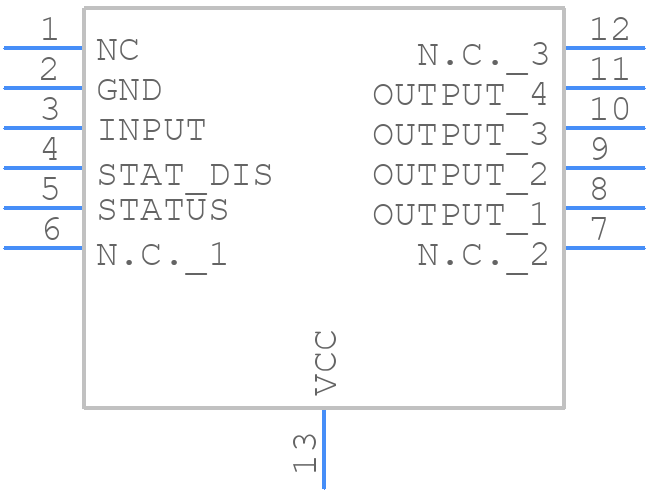

Part Symbol
-
Footprint
-

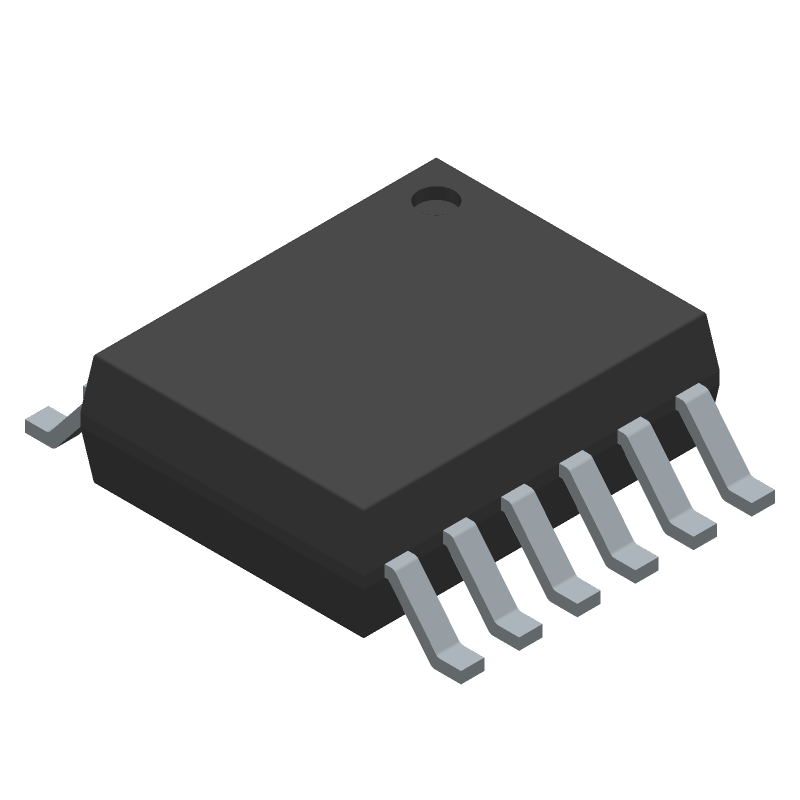

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VN5E050J-E by STMicroelectronics
Results Overview of VN5E050J-E by STMicroelectronics
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
VN5E050J-E Information
VN5E050J-E by STMicroelectronics is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for VN5E050J-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
STMicroelectronics | Single channel high side driver for automotive applications COO: Morocco RoHS: Compliant Min Qty: 1 | 0 |
|
$1.5100 / $2.5300 | Buy Now |
|
DISTI #
VN5E050J-E
|
Avnet Silica | MOSFET DRVR 1OUT Hi Side NonInv 12Pin PowerSSO Tube (Alt: VN5E050J-E) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
VN5E050J-E
|
EBV Elektronik | MOSFET DRVR 1OUT Hi Side NonInv 12Pin PowerSSO Tube (Alt: VN5E050J-E) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for VN5E050J-E
VN5E050J-E CAD Models
VN5E050J-E Part Data Attributes
|
|
VN5E050J-E
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
VN5E050J-E
STMicroelectronics
Single channel high side driver for automotive applications
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SSOP | |
| Package Description | ROHS COMPLIANT, SSOP-12 | |
| Pin Count | 12 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Built-in Protections | TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE | |
| Driver Number of Bits | 1 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G12 | |
| Length | 4.9 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Output Current Flow Direction | SINK | |
| Output Current-Max | 2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLSSOP | |
| Package Equivalence Code | SOP12,.25,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.62 mm | |
| Supply Voltage-Max | 28 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 13 V | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3.9 mm |
VN5E050J-E Frequently Asked Questions (FAQ)
-
The VN5E050J-E can operate from -40°C to 150°C, making it suitable for high-reliability applications.
-
To ensure EMC, follow proper PCB design guidelines, use a shielded cable, and consider adding a common-mode choke or ferrite bead to the output stage.
-
Keep the input and output stages separate, use a star-ground configuration, and minimize trace lengths to reduce EMI and noise.
-
Yes, the VN5E050J-E can withstand high voltages up to 560V, but ensure proper insulation and creepage distances to prevent electrical shock.
-
Use an oscilloscope to check the input and output waveforms, verify the power supply voltage, and check for overheating or electrical overstress.
