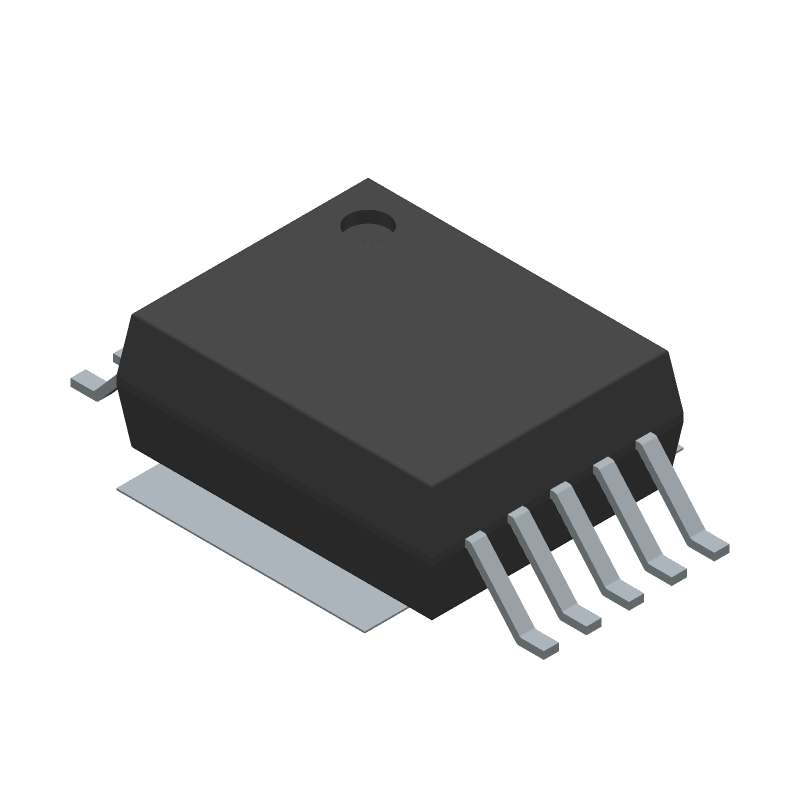

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VN540SP-E by STMicroelectronics
Results Overview of VN540SP-E by STMicroelectronics
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VN540SP-E Information
VN540SP-E by STMicroelectronics is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for VN540SP-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-6807-5-ND
|
DigiKey | IC PWR DRIVER 1:1 PWRSO10 Min Qty: 1 Lead time: 16 Weeks Container: Tube | Temporarily Out of Stock |
|
$5.7110 / $8.0800 | Buy Now |
|
DISTI #
VN540SP-E
|
Avnet Americas | Power Switch Hi Side 2.8A 10-Pin PowerSO Tube - Rail/Tube (Alt: VN540SP-E) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Container: Tube | 0 |
|
$5.4826 / $5.5968 | Buy Now |
|
DISTI #
511-VN540SP-E
|
Mouser Electronics | Power Switch ICs - Power Distribution HIGH SIDE SMART POWR RoHS: Compliant | 1380 |
|
$5.8300 / $9.7000 | Buy Now |
|
|
STMicroelectronics | Single high-side smart power solid state relay RoHS: Compliant Min Qty: 1 | 1380 |
|
$5.9200 / $9.5100 | Buy Now |
|
DISTI #
VN540SP-E
|
Avnet Silica | Power Switch Hi Side 28A 10Pin PowerSO Tube (Alt: VN540SP-E) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 17 Weeks, 0 Days | Silica - 3150 |
|
Buy Now | |
|
DISTI #
VN540SP-E
|
EBV Elektronik | Power Switch Hi Side 28A 10Pin PowerSO Tube (Alt: VN540SP-E) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 10V36V 50m Active High 2.8A 1 High-side switch PowerSO-10 Power Distribution Switches ROHS | 50 |
|
$6.8178 / $9.5787 | Buy Now |
Part Details for VN540SP-E
VN540SP-E CAD Models
VN540SP-E Part Data Attributes
|
|
VN540SP-E
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
VN540SP-E
STMicroelectronics
Single high-side smart power solid state relay
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Pin Count | 10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Built-in Protections | OVER CURRENT; THERMAL; UNDER VOLTAGE | |
| Driver Number of Bits | 1 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G10 | |
| Length | 9.4 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Output Current Flow Direction | SOURCE | |
| Output Current-Max | 2.8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP10,.55FL | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.65 mm | |
| Supply Voltage-Max | 36 V | |
| Supply Voltage-Min | 10 V | |
| Supply Voltage-Nom | 24 V | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7.5 mm |
Alternate Parts for VN540SP-E
This table gives cross-reference parts and alternative options found for VN540SP-E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VN540SP-E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| VN540SP | STMicroelectronics | Check for Price | BUF OR INV BASED PRPHL DRVR, PDSO10, POWER, SO-10 | VN540SP-E vs VN540SP |
VN540SP-E Frequently Asked Questions (FAQ)
-
STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
-
The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. STMicroelectronics provides a component selection guide in the datasheet, and additional guidance can be found in the application notes and evaluation boards.
-
The VN540SP-E has a high power density, and thermal management is critical to ensure reliable operation. The device has an exposed pad for thermal dissipation, and STMicroelectronics recommends using a thermal interface material and a heat sink to keep the junction temperature below 150°C.
-
STMicroelectronics provides a troubleshooting guide in the datasheet and application notes, which includes procedures for identifying and resolving common issues such as overcurrent or overvoltage protection, and fault detection and diagnosis.
-
The VN540SP-E is designed to meet EMI and EMC standards, but proper PCB layout, component selection, and shielding are still necessary to ensure compliance. STMicroelectronics provides guidance on EMI and EMC considerations in the application notes and evaluation boards.
