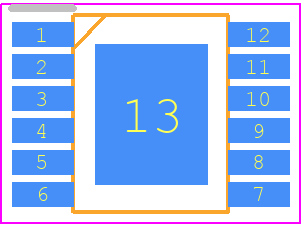

Footprint
-

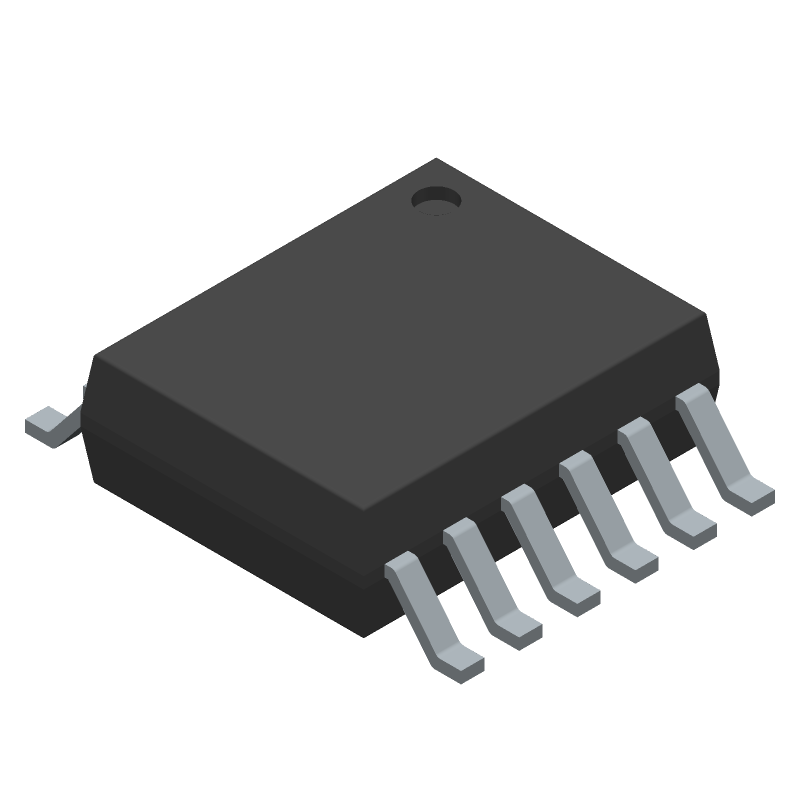

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VN5050AJ-E by STMicroelectronics
Results Overview of VN5050AJ-E by STMicroelectronics
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
VN5050AJ-E Information
VN5050AJ-E by STMicroelectronics is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for VN5050AJ-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2807033
|
Farnell | POWER LOAD SW, AEC-Q100, 13V, POWERSSO12 RoHS: Compliant Min Qty: 1 Lead time: 51 Weeks, 1 Days Container: Each | 1865 |
|
$1.4779 / $2.7006 | Buy Now |
|
DISTI #
70407512
|
RS | VN5050AJ-E, MOSFET Power Driver 18A, 4.5 to 36 V, Non-Inverting, 12-Pin PowerSSO Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$1.5810 / $1.8600 | RFQ |
|
|
STMicroelectronics | Single channel high side driver COO: Morocco RoHS: Compliant Min Qty: 1 | 0 |
|
$1.5200 / $2.5400 | Buy Now |
|
|
LCSC | 4.5V36V 50m Active High 1 High-side switch PowerSSO-12 Power Distribution Switches ROHS | 25 |
|
$1.5318 / $2.5801 | Buy Now |
|
|
Win Source Electronics | IC DVR 1CH HISID AUTO POWERSSO12 | 19900 |
|
$1.3611 / $2.0416 | Buy Now |
Part Details for VN5050AJ-E
VN5050AJ-E CAD Models
VN5050AJ-E Part Data Attributes
|
|
VN5050AJ-E
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
VN5050AJ-E
STMicroelectronics
Single channel high side driver
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SSOP | |
| Package Description | ROHS COMPLIANT, POWER, SSOP-12 | |
| Pin Count | 12 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Built-in Protections | TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE | |
| Driver Number of Bits | 1 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G12 | |
| Length | 4.9 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Output Current Flow Direction | SOURCE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLSSOP | |
| Package Equivalence Code | SOP12,.25,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.62 mm | |
| Supply Voltage-Max | 36 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 13 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3.9 mm |
VN5050AJ-E Frequently Asked Questions (FAQ)
-
STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
-
To ensure EMC, use a shielded cable for the bus interface, keep the PCB layout compact, and use a common mode choke or ferrite bead on the power lines.
-
The maximum allowed voltage on the VCC pin is 5.5V, exceeding which may damage the device.
-
Check the bus voltage, signal integrity, and termination resistors. Use a logic analyzer or oscilloscope to verify signal quality and timing.
-
The VN5050AJ-E is rated for operation up to 125°C, but thermal derating applies above 85°C. Ensure proper heat sinking and thermal management for reliable operation.
