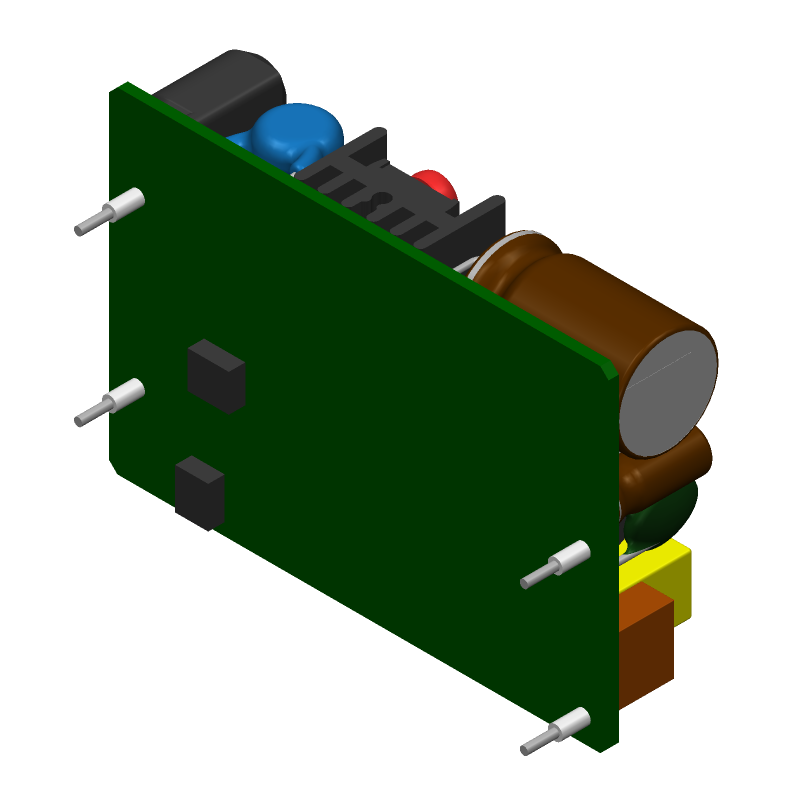

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VMS-20-9 by CUI Inc
Results Overview of VMS-20-9 by CUI Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VMS-20-9 Information
VMS-20-9 by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for VMS-20-9
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
490-VMS-20-9
|
Mouser Electronics | Switching Power Supplies ac-dc, 20 W, 9 Vdc, single output, open PCB, MED | 0 |
|
$30.4000 | Order Now |
|
|
Onlinecomponents.com | AC/DC Power Supply - 1 Output Open Frame, PCB Mount - 9 V@2.3 A - 20W RoHS: Compliant | 0 |
|
$22.4300 / $46.9800 | Buy Now |
|
DISTI #
000000000006367485
|
Sager | Switching Power Supplies ac-dc, 20 W, 9 Vdc, single output, open PCB, MED Min Qty: 1 | 0 |
|
$24.0900 / $27.8000 | Buy Now |
Part Details for VMS-20-9
VMS-20-9 CAD Models
VMS-20-9 Part Data Attributes
|
|
VMS-20-9
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
VMS-20-9
CUI Inc
Board Mount AC-DC Power Supply, 9 Vdc, 2.3 A, 20.7 W
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CUI INC | |
| Package Description | PACKAGE-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | CUI Inc. | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, TUV, UL | |
| Efficiency (Main Output) | 81% | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 90 V | |
| Input Voltage-Nom | 115 V | |
| JESD-30 Code | R-XDMA-P4 | |
| Length | 60.5 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 60 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Current-Max | 2.3 A | |
| Output Voltage-Nom | 9 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE | |
| Ripple Voltage (Main Out) | 0.03182 Vrms | |
| Seated Height-Max | 20.4 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 20.7 W | |
| Trim/Adjustable Output | NO | |
| Width | 40.6 mm |
