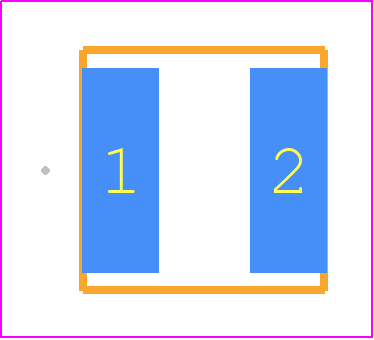

Footprint
-

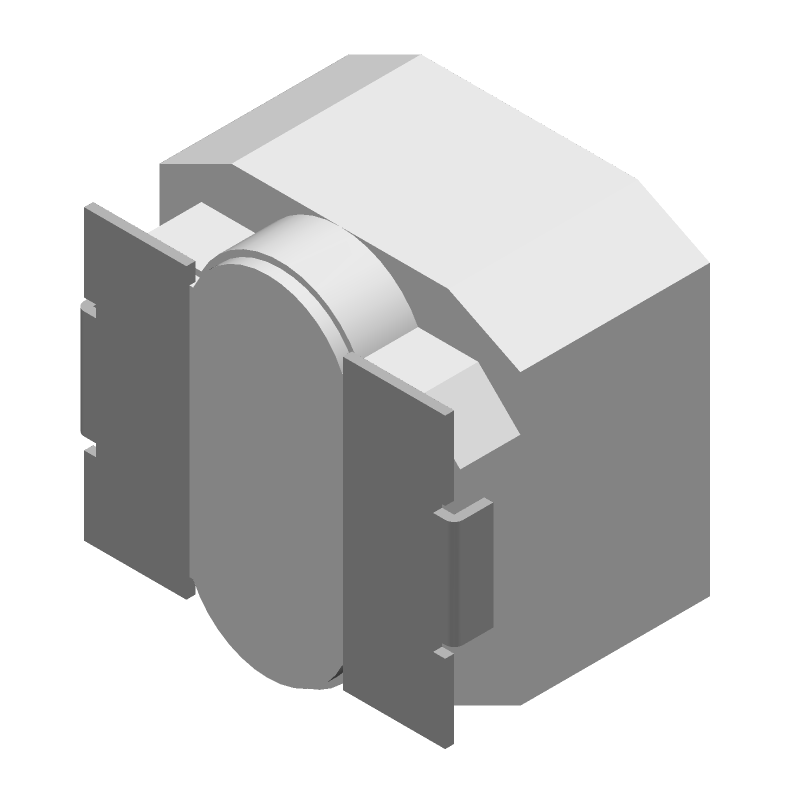

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VLS6045EX-1R5N-H by TDK Corporation
Results Overview of VLS6045EX-1R5N-H by TDK Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Transportation and Logistics
VLS6045EX-1R5N-H Information
VLS6045EX-1R5N-H by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for VLS6045EX-1R5N-H
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AH2782
|
Newark | Inductor, 1.5Uh, Semishielded, 5.3A Rohs Compliant: Yes |Tdk VLS6045EX-1R5N-H RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.2140 / $0.4270 | Buy Now |
|
DISTI #
445-VLS6045EX-1R5N-HCT-ND
|
DigiKey | FIXED IND 1.5UH SMD Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1954 In Stock |
|
$0.1732 / $0.4200 | Buy Now |
|
DISTI #
VLS6045EX-1R5N-H
|
Avnet Americas | Inductor 1.5uH 30% 2-Pin Surface Mount T/R - Tape and Reel (Alt: VLS6045EX-1R5N-H) RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1842 | Buy Now |
|
DISTI #
810-VLS6045EX-1R5N-H
|
Mouser Electronics | Power Inductors - SMD 1.5uH 30% 0.017ohm 6x6.3x4.5mm AEC-Q200 RoHS: Compliant | 2211 |
|
$0.1880 / $0.4200 | Buy Now |
|
DISTI #
VLS6045EX-1R5N-H
|
Avnet Abacus | Inductor 15uH 30 2Pin Surface Mount TR (Alt: VLS6045EX-1R5N-H) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 21 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for VLS6045EX-1R5N-H
VLS6045EX-1R5N-H CAD Models
VLS6045EX-1R5N-H Part Data Attributes
|
|
VLS6045EX-1R5N-H
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
VLS6045EX-1R5N-H
TDK Corporation
General Purpose Inductor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 2524 | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 0.017 Ω | |
| Inductance-Nom (L) | 1.5 µH | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 4.5 mm | |
| Package Length | 6.3 mm | |
| Package Style | SMT | |
| Package Width | 6 mm | |
| Packing Method | TR, Embossed Plastic, 13 Inch | |
| Rated Current-Max | 5.3 A | |
| Reference Standard | AEC-Q200 | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Special Feature | DC RESISTANCE IS MEASURED AT: 30% | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 30% |
VLS6045EX-1R5N-H Frequently Asked Questions (FAQ)
-
The recommended land pattern for the VLS6045EX-1R5N-H can be found in the TDK Corporation's application note or on their website. It is essential to follow the recommended land pattern to ensure proper mounting and to prevent thermal and electrical issues.
-
To prevent damage, it is recommended to handle the VLS6045EX-1R5N-H by the edges, avoiding touching the pins or the component body. It is also essential to use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
-
The maximum operating temperature range for the VLS6045EX-1R5N-H is -40°C to +125°C. However, it is essential to note that the component's performance and reliability may degrade if operated at the extreme ends of this range.
-
The VLS6045EX-1R5N-H is designed to withstand moderate vibration levels. However, if the application involves high-vibration environments, it is recommended to consult with TDK Corporation's technical support team to determine the component's suitability and to discuss potential customization options.
-
To determine the correct derating for the VLS6045EX-1R5N-H, you need to consider factors such as the operating temperature, voltage, and current. You can use the datasheet's derating curves and consult with TDK Corporation's technical support team to determine the correct derating for your specific application.
