VLS252010HBX-100M-1 Information

VLS252010HBX-100M-1 by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for VLS252010HBX-100M-1

Part # Distributor Description Stock Price Buy
DISTI # 31Y5160
Newark Surface Mount Power Inductor, Vls-Hbx-1 Series, 10 H, 20%, Shielded, 0.552 Ohm, 800 Ma Rohs Compliant: Yes |Tdk VLS252010HBX-100M-1 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 995
  • 1 $0.3220
  • 10 $0.2190
  • 25 $0.2030
  • 50 $0.1870
  • 100 $0.1710
  • 250 $0.1520
  • 1,000 $0.1330
  • 2,500 $0.1250
$0.1250 / $0.3220 Buy Now
DISTI # 445-173020-1-ND
DigiKey FIXED IND 10UH 950MA 552MOHM SMD Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 5452
In Stock
  • 1 $0.2500
  • 10 $0.2020
  • 100 $0.1659
  • 1,000 $0.1364
  • 2,000 $0.1286
  • 4,000 $0.1213
  • 6,000 $0.1172
  • 10,000 $0.1122
  • 14,000 $0.1091
  • 20,000 $0.1058
  • 50,000 $0.0979
  • 100,000 $0.0963
$0.0963 / $0.2500 Buy Now
DISTI # VLS252010HBX-100M-1
Avnet Americas Power Inductor (SMD), 10 uH, ? 20%, 800 mA, Shielded, 1.13 A, 2.5mm x 2mm x 1mm - Tape and Reel (Alt: VLS252010HBX-100M-1) RoHS: Not Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.1029
  • 4,000 $0.1024
  • 8,000 $0.1018
$0.1018 / $0.1029 Buy Now
DISTI # 810-VLS25201HBX100M1
Mouser Electronics Power Inductors - SMD 10uH 1.13A 552mOhms Power Circuits RoHS: Compliant 2000
  • 1 $0.2500
  • 10 $0.2020
  • 100 $0.1660
  • 250 $0.1650
  • 1,000 $0.1290
  • 2,000 $0.1210
  • 4,000 $0.1170
  • 10,000 $0.1100
$0.1100 / $0.2500 Buy Now
DISTI # V72:2272_06601318
Arrow Electronics Inductor Power Shielded Wirewound 10uH 20% 1MHz Metal 0.68A 0.552Ohm DCR 1008 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2412 Container: Cut Strips Americas - 1993
  • 1 $0.2175
  • 10 $0.1757
  • 25 $0.1661
  • 100 $0.1401
  • 250 $0.1377
  • 500 $0.1363
  • 1,000 $0.0837
$0.0837 / $0.2175 Buy Now
DISTI # 32325360
Verical Inductor Power Shielded Wirewound 10uH 20% 1MHz Metal 0.68A 0.552Ohm DCR 1008 T/R RoHS: Compliant Min Qty: 167 Package Multiple: 1 Americas - 3247
  • 167 $0.1350
$0.1350 Buy Now
DISTI # 78829339
Verical Inductor Power Shielded Wirewound 10uH 20% 1MHz Metal 0.68A 0.552Ohm DCR 1008 T/R RoHS: Compliant Min Qty: 60 Package Multiple: 1 Date Code: 2412 Americas - 1993
  • 60 $0.1472
  • 100 $0.1400
  • 250 $0.1376
  • 500 $0.1363
  • 1,000 $0.0996
$0.0996 / $0.1472 Buy Now
Bristol Electronics   2000
RFQ
Quest Components   1600
  • 1 $0.7700
  • 17 $0.3465
  • 145 $0.2310
$0.2310 / $0.7700 Buy Now
DISTI # VLS252010HBX-100M
TME Inductor: wire, SMD, 10uH, 1.13A, 552mΩ, ±20%, 2.5x2x1mm, -40÷105°C Min Qty: 2000 0
  • 2,000 $0.1090
$0.1090 RFQ
DISTI # VLS252010HBX-100M-1
Avnet Abacus Power Inductor SMD 10 uH 20 800 mA Shielded 113 A 25mm x 2mm x 1mm (Alt: VLS252010HBX-100M-1) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 21 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # VLS252010HBX-100M-1
Chip One Stop Inductor Power Shielded Wirewound 10uH 20% 1MHz Metal 680mA 552mOhm DCR 1008 T/R RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 3247
  • 5 $0.2000
  • 50 $0.1350
$0.1350 / $0.2000 Buy Now
Vyrian Inductors 3077
RFQ

Part Details for VLS252010HBX-100M-1

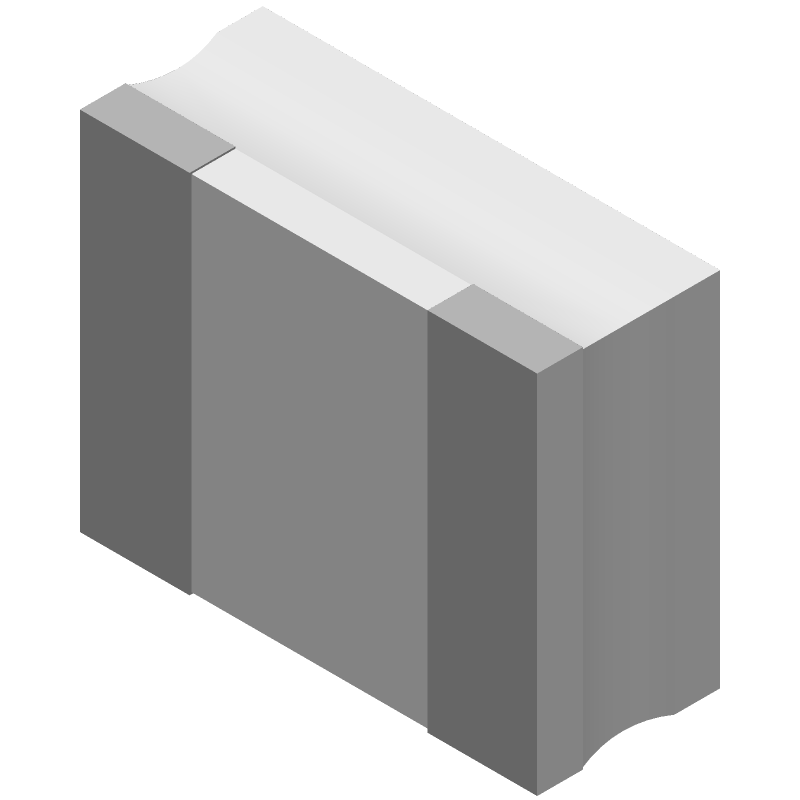

VLS252010HBX-100M-1 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

VLS252010HBX-100M-1 Part Data Attributes

Parametric Data
VLS252010HBX-100M-1 TDK Corporation
Buy Now Datasheet
Compare Parts:
VLS252010HBX-100M-1 TDK Corporation General Purpose Inductor,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TDK CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Factory Lead Time 10 Weeks
Samacsys Manufacturer TDK
Case/Size Code 1008
Construction Rectangular
Core Material METAL CORE
DC Resistance 0.552 Ω
Inductance-Nom (L) 10 µH
Inductor Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Height 1 mm
Package Length 2.5 mm
Package Style SMT
Package Width 2 mm
Packing Method TR, Embossed Plastic, 7 Inch
Rated Current-Max 0.68 A
Shape/Size Description RECTANGULAR PACKAGE
Shielded YES
Surface Mount YES
Terminal Placement DUAL ENDED
Terminal Shape ONE SURFACE
Test Frequency 1 MHz
Tolerance 20%
