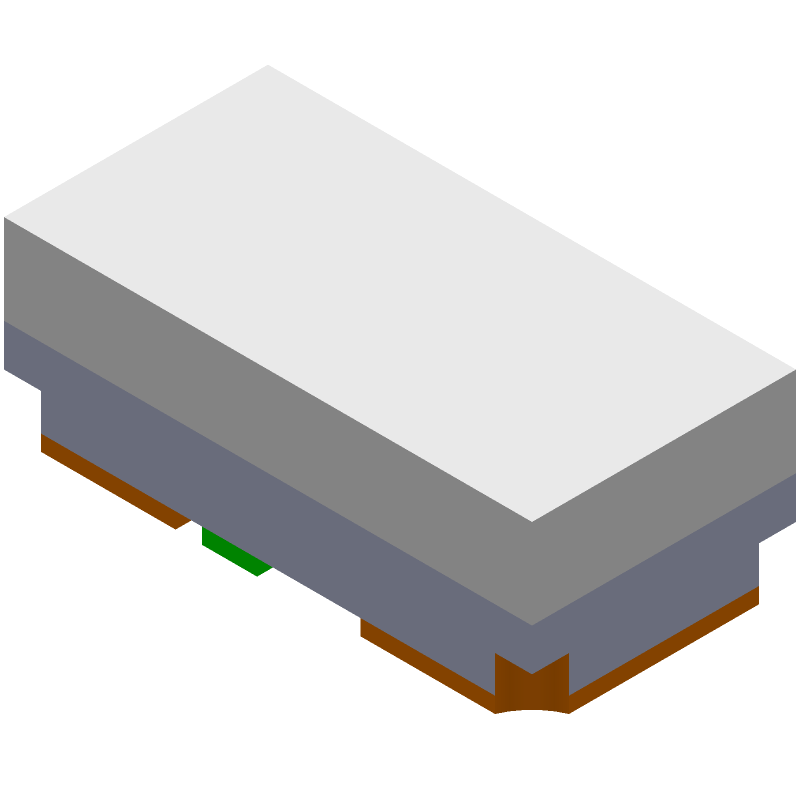

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VLMW1500-GS08 by Vishay Intertechnologies
Results Overview of VLMW1500-GS08 by Vishay Intertechnologies
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VLMW1500-GS08 Information
VLMW1500-GS08 by Vishay Intertechnologies is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for VLMW1500-GS08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06AC6531
|
Newark | Led, White, 180Mcd, 7000K, 0402, Led Colour:White, Led Mounting:Smd, Bulb Size:-, Forward Current If:5Ma, Forward Voltage:3.05V, Luminous Intensity:180Mcd, Viewing Angle:130°, Lens Shape:Rectangular, Product Range:Vlmw15 Series, Rohs Compliant: Yes |Vishay VLMW1500-GS08 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 8890 |
|
$0.1540 / $0.4800 | Buy Now |
|
DISTI #
VLMW1500-GS08
|
Avnet Americas | CHIPLED(0402) WHITE ULTRABRIGHT -e4 - Tape and Reel (Alt: VLMW1500-GS08) RoHS: Compliant Min Qty: 9000 Package Multiple: 9000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0888 / $0.0917 | Buy Now |
|
DISTI #
78-VLMW1500-GS08
|
Mouser Electronics | White LEDs 0402 WHITE Non-Diff RoHS: Compliant | 72196 |
|
$0.1070 / $0.4000 | Buy Now |
|
DISTI #
V72:2272_07451502
|
Arrow Electronics | LED Uni-Color White 7000K 2-Pin Chip 0402(1006Metric) T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2147 Container: Cut Strips | Americas - 80 |
|
$0.1038 / $0.3851 | Buy Now |
|
DISTI #
84461760
|
Verical | LED Uni-Color White 7000K 2-Pin Chip 0402(1006Metric) T/R RoHS: Compliant Min Qty: 288 Package Multiple: 1 Date Code: 2241 | Americas - 948 |
|
$0.1570 / $0.3840 | Buy Now |
|
DISTI #
70357809
|
Verical | LED Uni-Color White 7000K 2-Pin Chip 0402(1006Metric) T/R RoHS: Compliant Min Qty: 61 Package Multiple: 1 Date Code: 2147 | Americas - 80 |
|
$0.1038 | Buy Now |
|
|
Bristol Electronics | 68949 |
|
RFQ | ||
|
|
Bristol Electronics | 206 |
|
RFQ | ||
|
|
Quest Components | SINGLE COLOR LED, WHITE | 55159 |
|
$0.1016 / $0.6770 | Buy Now |
|
DISTI #
VLMW1500-GS08
|
TTI | White LEDs 0402 WHITE Non-Diff RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 54000 In Stock |
|
$0.1200 / $0.1320 | Buy Now |
Part Details for VLMW1500-GS08
VLMW1500-GS08 CAD Models
VLMW1500-GS08 Part Data Attributes
|
|
VLMW1500-GS08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VLMW1500-GS08
Vishay Intertechnologies
Single Color LED, White,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | HIGH RELIABILITY | |
| Color | WHITE | |
| Color@Wavelength | White | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.02 A | |
| Forward Voltage-Max | 3.05 V | |
| Luminous Intensity-Min | 0.045 cd | |
| Luminous Intensity-Nom | 90 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -30 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 0.35 mm | |
| Packing Method | TR, 7 INCH | |
| Shape | RECTANGULAR | |
| Surface Mount | YES | |
| Terminal Pitch | 0.95 mm | |
| Viewing Angle | 130 deg |
VLMW1500-GS08 Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for the VLMW1500-GS08 is -40°C to 100°C.
-
Yes, the VLMW1500-GS08 is designed to operate in humid environments, but it's recommended to follow the recommended storage and handling procedures to prevent moisture-related issues.
-
The maximum allowable voltage derating for the VLMW1500-GS08 is 80% of the maximum rated voltage, as specified in the datasheet.
-
To prevent ESD damage, handle the VLMW1500-GS08 with anti-static wrist straps, mats, or other ESD-protective equipment, and follow proper ESD handling procedures.
-
Yes, the VLMW1500-GS08 is designed to meet the requirements of high-reliability applications, but it's recommended to consult with Vishay Intertechnologies for specific application requirements and qualification.
