Resistors / Non-linear Resistors / VJ13MC0300KBA
Datasheets
VJ13MC0300KBA by:

Varistor, 30V, 0.9J, Surface Mount, CHIP, 1210

Part Details for VJ13MC0300KBA by Kyocera AVX Components

Results Overview of VJ13MC0300KBA by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

VJ13MC0300KBA Information

VJ13MC0300KBA by Kyocera AVX Components is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for VJ13MC0300KBA

Part # Distributor Description Stock Price Buy
DISTI # 60R6110
Newark Varistor, 39V, 73V, 1210, Voltage Rating Vac:21V, Voltage Rating Vdc:30V, Product Range:Transguard Series, Clamping Voltage Vc Max:73V, Varistor Case Style:1210 [3225 Metric], Peak Surge Current @ 8/20Μs:220A, Capacitance, Cd:1020Pf Rohs Compliant: Yes |Kyocera Avx VJ13MC0300KBA RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $1.0600
$1.0600 Buy Now
DISTI # 54J9828
Newark Varistor, 39V, 73V, 1210, Full Reel, Voltage Rating Vac:21V, Voltage Rating Vdc:30V, Product Range:Transguard Series, Clamping Voltage Vc Max:73V, Varistor Case Style:1210 [3225 Metric], Peak Surge Current @ 8/20Μs:220A Rohs Compliant: Yes |Kyocera Avx VJ13MC0300KBA RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $0.6540
  • 4,000 $0.5970
  • 6,000 $0.5790
  • 10,000 $0.5680
$0.5680 / $0.6540 Buy Now
DISTI # 478-2538-1-ND
DigiKey VARISTOR 39V 220A 1210 Min Qty: 1 Lead time: 19 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2008
In Stock
  • 1 $1.5400
  • 10 $0.9450
  • 25 $0.7900
  • 100 $0.6147
  • 250 $0.5286
  • 500 $0.4755
  • 1,000 $0.4311
  • 2,000 $0.3938
  • 4,000 $0.3627
  • 6,000 $0.3468
  • 10,000 $0.3291
  • 14,000 $0.3259
$0.3259 / $1.5400 Buy Now
DISTI # VJ13MC0300KBA
Avnet Americas TVS Varistor, 30 VDC, Standard MC, 73 V, 1210 [3225 Metric], Multilayer Varistor (MLV) - Tape and Reel (Alt: VJ13MC0300KBA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 19 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.4326
  • 4,000 $0.4272
  • 8,000 $0.4200
  • 12,000 $0.4147
  • 16,000 $0.4093
$0.4093 / $0.4326 Buy Now
DISTI # 581-VJ13MC0300KBA
Mouser Electronics Varistors 30VDC 0.9J 1020pF 39 V 73V RoHS: Compliant 1975
  • 1 $1.4900
  • 10 $0.7900
  • 100 $0.6060
  • 250 $0.5290
  • 500 $0.4760
  • 1,000 $0.4250
  • 2,000 $0.3940
  • 4,000 $0.3460
  • 10,000 $0.3290
$0.3290 / $1.4900 Buy Now
DISTI # VJ13MC0300KBA
TTI Varistors 30VDC 0.9J 1020pF 39 V 73V RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 0
  • 2,000 $0.6320
  • 4,000 $0.6200
  • 6,000 $0.6080
  • 10,000 $0.5960
$0.5960 / $0.6320 Buy Now
DISTI # VJ13MC0300KBA
Avnet Abacus TVS Varistor 30 VDC Standard MC 73 V 1210 3225 Metric Multilayer Varistor MLV (Alt: VJ13MC0300KBA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 27 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for VJ13MC0300KBA

VJ13MC0300KBA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

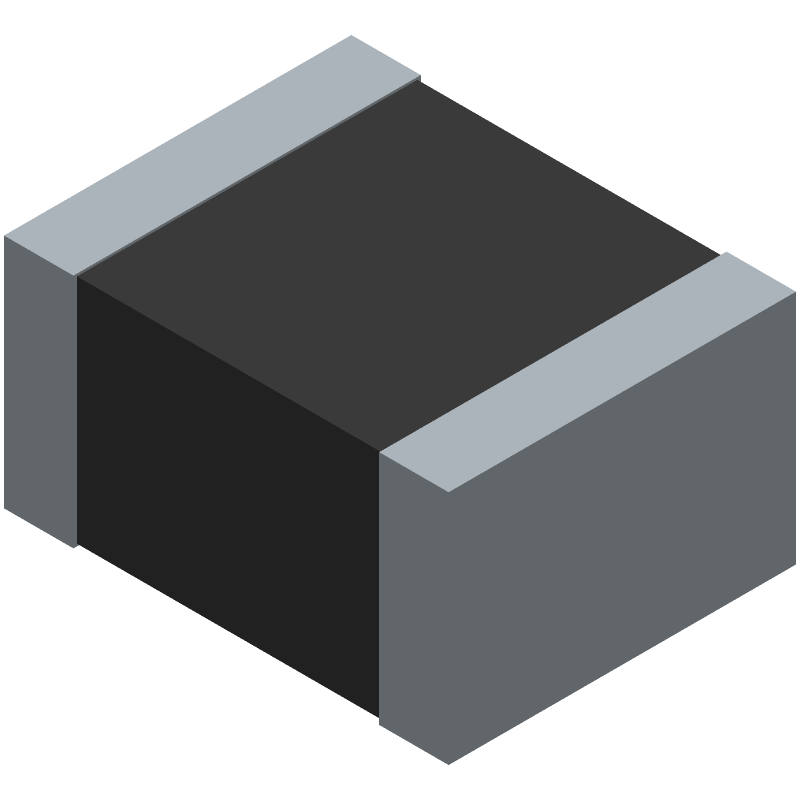

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

VJ13MC0300KBA Part Data Attributes

Parametric Data
VJ13MC0300KBA Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
VJ13MC0300KBA Kyocera AVX Components Varistor, 30V, 0.9J, Surface Mount, CHIP, 1210
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.40.40.00
Factory Lead Time 19 Weeks
Samacsys Manufacturer Kyocera AVX
Energy Absorbing Capacity-Max 0.9 J
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 1.7 mm
Package Length 3.2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 2.5 mm
Packing Method TR
Resistor Type VARISTOR
Surface Mount YES
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Working Voltage 30 V

Alternate Parts for VJ13MC0300KBA

This table gives cross-reference parts and alternative options found for VJ13MC0300KBA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VJ13MC0300KBA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
VC121030G620RP Kyocera AVX Components Check for Price Varistor, 30V, 0.9J, Surface Mount, CHIP, 1210, ROHS COMPLIANT VJ13MC0300KBA vs VC121030G620RP
VC121030G620TP Kyocera AVX Components Check for Price Varistor, 30V, 0.9J, Surface Mount, CHIP, 1210, ROHS COMPLIANT VJ13MC0300KBA vs VC121030G620TP
Part Number Manufacturer Composite Price Description Compare
VC121030G620D Kyocera AVX Components Check for Price Varistor, 30V, 0.9J, Surface Mount VJ13MC0300KBA vs VC121030G620D
VC121030G620TX Kyocera AVX Components Check for Price Varistor, 30V, 0.9J, Surface Mount VJ13MC0300KBA vs VC121030G620TX
V30MLA1210LWT Littelfuse Inc Check for Price RESISTOR, VOLTAGE DEPENDENT, 30V, 0.9J, SURFACE MOUNT, CHIP, 1210, LEAD FREE VJ13MC0300KBA vs V30MLA1210LWT
V30MLA1210LWH Littelfuse Inc Check for Price RESISTOR, VOLTAGE DEPENDENT, 30V, 0.9J, SURFACE MOUNT, CHIP, 1210, LEAD FREE VJ13MC0300KBA vs V30MLA1210LWH
VC121030G620R Kyocera AVX Components Check for Price Varistor, 30V, 0.9J, Surface Mount VJ13MC0300KBA vs VC121030G620R
V30MLA1210L Littelfuse Inc Check for Price Varistor, 30V, 0.9J, Surface Mount, CHIP, 1210, ROHS COMPLIANT VJ13MC0300KBA vs V30MLA1210L
V30MLA1210LWA Littelfuse Inc Check for Price RESISTOR, VOLTAGE DEPENDENT, 30V, 0.9J, SURFACE MOUNT, CHIP, 1210, LEAD FREE VJ13MC0300KBA vs V30MLA1210LWA

VJ13MC0300KBA Related Parts

VJ13MC0300KBA Frequently Asked Questions (FAQ)

  • The recommended land pattern for the VJ13MC0300KBA can be found in the Kyocera AVX Components' recommended land pattern document, which provides detailed information on the pad layout and dimensions for optimal assembly and reliability.

  • To prevent damage, handle the VJ13MC0300KBA by the body only, avoiding touching the terminations or component surfaces. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.

  • The maximum reflow temperature for the VJ13MC0300KBA is 260°C, with a recommended reflow profile that can be found in the Kyocera AVX Components' reflow soldering guidelines document.

  • Yes, the VJ13MC0300KBA is designed to withstand high-vibration environments, with a vibration resistance of 10G peak acceleration, 10-2000Hz frequency range, and 3 axes (X, Y, Z).

  • The VJ13MC0300KBA has a moisture sensitivity level (MSL) of 3, which means it can be exposed to a maximum of 168 hours at 30°C and 60% relative humidity before assembly.
