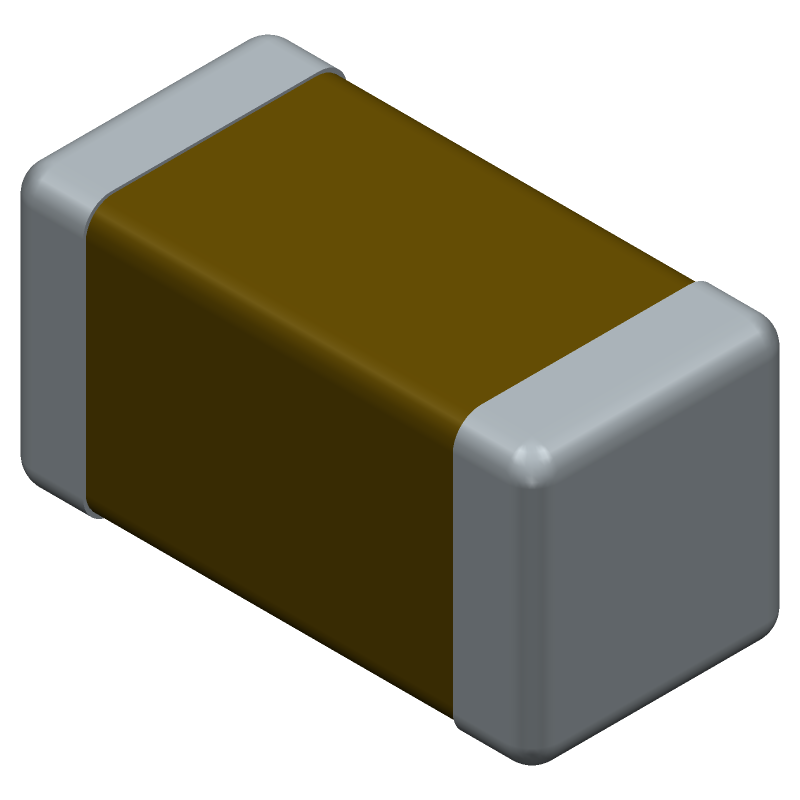

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VJ1206Y105KXATW1BC by Vishay Intertechnologies
Results Overview of VJ1206Y105KXATW1BC by Vishay Intertechnologies
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Telecommunications
Renewable Energy
Automotive
VJ1206Y105KXATW1BC Information
VJ1206Y105KXATW1BC by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for VJ1206Y105KXATW1BC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62AC8665
|
Newark | Cap, 1Μf, 50V, 10%, X7R, 1206, Capacitance:1Μf, Voltage Rating:50V, Ceramic Capacitor Case:1206 [3216 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Vj Series, Operating Temperature Min:-55°C, Rohs Compliant: Yes |Vishay VJ1206Y105KXATW1BC RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1278 |
|
$0.0480 | Buy Now |
|
DISTI #
10M7504
|
Newark | Capacitor, 1Uf, X7R, 50V, 1206, Capacitance:1Μf, Voltage(Dc):50V, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Vj_W1Bc Basic Commodity Series, Qualification:- Rohs Compliant: Yes |Vishay VJ1206Y105KXATW1BC RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
VJ1206Y105KXATW1BC
|
Avnet Americas | SMD Multilayer Ceramic Capacitor, 1 ?F, 50 V, 1206 [3216 Metric], ? 10%, X7R - Tape and Reel (Alt: VJ1206Y105KXATW1BC) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 30 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
77-VJ126Y105KXATW1BC
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 1206 1.0uF 50V X7R 10% RoHS: Compliant | 0 |
|
$0.0720 | Order Now |
|
DISTI #
VJ1206Y105KXATW1BC
|
TME | Capacitor: ceramic, MLCC, 1uF, 50V, X7R, ±10%, SMD, 1206 Min Qty: 5 | 26300 |
|
$0.0284 / $0.1698 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
DISTI #
VJ1206Y105KXATW1BC
|
IBS Electronics | CERAMIC CAPACITOR MULTILAYER CERAMIC 50V 10% +, TOL 10% -TOL X7R 15% TC 1UF SURFACE MOUNT 1206 Min Qty: 2000 Package Multiple: 1 | 0 |
|
$0.0426 / $0.0463 | Buy Now |
|
DISTI #
VJ1206Y105KXATW1BC
|
Avnet Abacus | SMD Multilayer Ceramic Capacitor 1 F 50 V 1206 3216 Metric 10 X7R - Tape and Reel (Alt: VJ1206Y105KXATW1BC) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 33 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
DISTI #
VJ1206Y105KXATW1BC
|
Avnet Asia | SMD Multilayer Ceramic Capacitor, 1 ?F, 50 V, 1206 [3216 Metric], ? 10%, X7R (Alt: VJ1206Y105KXATW1BC) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 32 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
Vyrian | Capacitors | 49983 |
|
RFQ |
Part Details for VJ1206Y105KXATW1BC
VJ1206Y105KXATW1BC CAD Models
VJ1206Y105KXATW1BC Part Data Attributes
|
|
VJ1206Y105KXATW1BC
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VJ1206Y105KXATW1BC
Vishay Intertechnologies
Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 1206, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 30 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Capacitance | 1 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 1.9 mm | |
| JESD-609 Code | e3 | |
| Length | 3.2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, PLASTIC, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.6 mm |
VJ1206Y105KXATW1BC Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the VJ1206Y105KXATW1BC is 260°C for 10 seconds.
-
Yes, the VJ1206Y105KXATW1BC is a high-reliability capacitor that meets the requirements of AEC-Q200, making it suitable for automotive and other high-reliability applications.
-
Yes, the VJ1206Y105KXATW1BC is designed to withstand high vibrations and meets the requirements of IEC 60068-2-6, making it suitable for use in high-vibration environments.
-
The ESR of the VJ1206Y105KXATW1BC is typically around 50 mΩ at 100 kHz.
-
Yes, the VJ1206Y105KXATW1BC is RoHS and REACH compliant, making it suitable for use in European Union countries.
