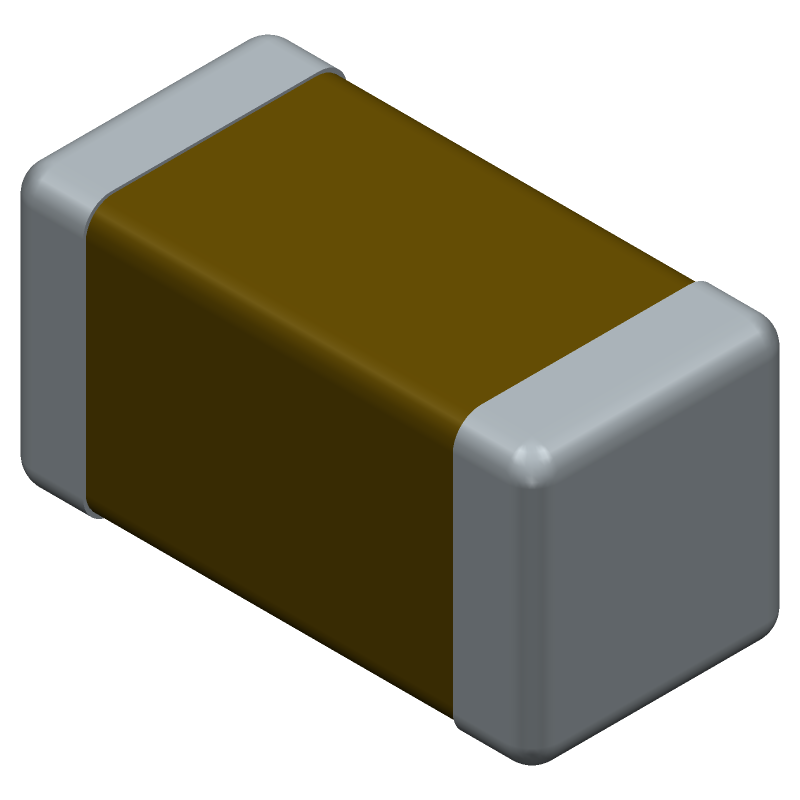

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VJ1206A2R2CXEAC by Vishay Intertechnologies
Results Overview of VJ1206A2R2CXEAC by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VJ1206A2R2CXEAC Information
VJ1206A2R2CXEAC by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for VJ1206A2R2CXEAC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62AC8597
|
Newark | Cap, 2.2Pf, 500V, C0G/Np0, 1206, Capacitance:2.2Pf, Voltage Rating:500V, Ceramic Capacitor Case:1206 [3216 Metric], Capacitance Tolerance:± 0.25Pf, Dielectric Characteristic:C0G/Np0, Product Range:Vj Series, Operating Temperature Rohs Compliant: Yes |Vishay VJ1206A2R2CXEAC RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 8876 |
|
$0.1520 / $0.3690 | Buy Now |
|
DISTI #
92AH6254
|
Newark | Cap, 2.2Pf, 500V, Mlcc, 1206 Rohs Compliant: Yes |Vishay VJ1206A2R2CXEAC RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 3000 |
|
$0.1240 / $0.1390 | Buy Now |
|
DISTI #
VJ1206A2R2CXEAC
|
Avnet Americas | VJ1206A2R2CXEAC00 - Tape and Reel (Alt: VJ1206A2R2CXEAC) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.1162 / $0.1186 | Buy Now |
|
DISTI #
77-VJ1206A2R2CXEAC
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT VJ1206A2R2CXEAC00 RoHS: Compliant | 5630 |
|
$0.1170 / $0.5300 | Buy Now |
|
DISTI #
VJ1206A2R2CXEAC
|
Avnet Abacus | VJ1206A2R2CXEAC00 - Tape and Reel (Alt: VJ1206A2R2CXEAC) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for VJ1206A2R2CXEAC
VJ1206A2R2CXEAC CAD Models
VJ1206A2R2CXEAC Part Data Attributes
|
|
VJ1206A2R2CXEAC
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VJ1206A2R2CXEAC
Vishay Intertechnologies
Ceramic Capacitor, Multilayer, Ceramic, 500V, 11.3636% +Tol, 11.3636% -Tol, C0G, 30ppm/Cel TC, 0.0000022uF, Surface Mount, 1206, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Capacitance | 0.0000022 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 1.7 mm | |
| JESD-609 Code | e3 | |
| Length | 3.2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 11.3636% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, PAPER, 7 INCH | |
| Positive Tolerance | 11.3636% | |
| Rated (DC) Voltage (URdc) | 500 V | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | C0G | |
| Temperature Coefficient | 30ppm/Cel ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.6 mm |
Alternate Parts for VJ1206A2R2CXEAC
This table gives cross-reference parts and alternative options found for VJ1206A2R2CXEAC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VJ1206A2R2CXEAC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| VJ1206A2R2CXEMP | Vishay Vitramon | Check for Price | Capacitor, Ceramic, Chip, General Purpose, 2.2pF, 500V, ±0.25pF, C0G/NP0, 1206 (3216 mm), 0.067"T, -55º ~ +125ºC, 13" Reel/Paper Tape | VJ1206A2R2CXEAC vs VJ1206A2R2CXEMP |
| VJ1206A2R2CXEMC | Vishay Vitramon | Check for Price | Capacitor, Ceramic, Chip, General Purpose, 2.2pF, 500V, ±0.25pF, C0G/NP0, 1206 (3216 mm), 0.067"T, -55º ~ +125ºC, 7" Reel/Paper Tape | VJ1206A2R2CXEAC vs VJ1206A2R2CXEMC |
| VJ1206A2R2CXEAP | Vishay Vitramon | Check for Price | Capacitor, Ceramic, Chip, General Purpose, 2.2pF, 500V, ±0.25pF, C0G/NP0, 1206 (3216 mm), 0.067"T, -55º ~ +125ºC, 13" Reel/Paper Tape | VJ1206A2R2CXEAC vs VJ1206A2R2CXEAP |
| VJ1206A2R2CXEAP | Vishay Intertechnologies | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 500V, 11.3636% +Tol, 11.3636% -Tol, C0G, 30ppm/Cel TC, 0.0000022uF, Surface Mount, 1206, CHIP | VJ1206A2R2CXEAC vs VJ1206A2R2CXEAP |
| VJ1206A2R2CEEAC | Vishay Intertechnologies | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 500V, 11.36% +Tol, 11.36% -Tol, C0G, 30ppm/Cel TC, 0.0000022uF, Surface Mount, 1206, CHIP, GREEN | VJ1206A2R2CXEAC vs VJ1206A2R2CEEAC |
