Capacitors / Fixed Capacitors / VJ1206A221JXBMT
Datasheets
VJ1206A221JXBMT by:

Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1206, CHIP

Part Details for VJ1206A221JXBMT by Vishay Intertechnologies

Results Overview of VJ1206A221JXBMT by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

VJ1206A221JXBMT Information

VJ1206A221JXBMT by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for VJ1206A221JXBMT

Part # Distributor Description Stock Price Buy
DISTI # 47C8663
Newark Ceramic Capacitor 220Pf 100V, C0G, 5%, 1206, Capacitance:220Pf, Voltage(Dc):100V, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:Vj Commercial Series Rohs Compliant: Yes |Vishay VJ1206A221JXBMT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2438
  • 1 $0.0590
  • 25 $0.0590
  • 50 $0.0590
  • 100 $0.0590
  • 250 $0.0590
  • 500 $0.0590
  • 1,000 $0.0590
$0.0590 Buy Now
DISTI # 47C8663
Avnet Americas VJ1206A221JXBMT00 - Product that comes on tape, but is not reeled (Alt: 47C8663) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 3 Days Container: Ammo Pack 2438 Partner Stock
  • 1 $0.5350
  • 25 $0.4490
  • 50 $0.4120
  • 100 $0.2800
  • 250 $0.2320
$0.2320 / $0.5350 Buy Now
DISTI # VJ1206A221JXBMT
Avnet Americas VJ1206A221JXBMT00 - Tape and Reel (Alt: VJ1206A221JXBMT) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 6,000 $0.0605
  • 12,000 $0.0594
  • 18,000 $0.0586
  • 30,000 $0.0576
  • 60,000 $0.0559
$0.0559 / $0.0605 Buy Now
DISTI # 77-VJ1206A221JXBMT
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT VJ1206A221JXBMT00 RoHS: Compliant 0
  • 1 $0.3600
  • 10 $0.2560
  • 100 $0.1530
  • 500 $0.1270
  • 1,000 $0.1000
  • 3,000 $0.0770
  • 45,000 $0.0710
$0.0710 / $0.3600 Order Now
DISTI # V72:2272_09240549
Arrow Electronics Cap Ceramic 220pF 100V C0G 5% Pad SMD 1206 150°C T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1851 Container: Cut Strips Americas - 6054
  • 1 $0.1310
  • 10 $0.0802
  • 25 $0.0731
  • 100 $0.0706
  • 250 $0.0681
  • 500 $0.0656
  • 1,000 $0.0631
  • 3,000 $0.0606
  • 6,000 $0.0581
$0.0581 / $0.1310 Buy Now
DISTI # 32020864
Verical Cap Ceramic 220pF 100V C0G 5% Pad SMD 1206 150°C T/R RoHS: Compliant Min Qty: 102 Package Multiple: 1 Date Code: 1851 Americas - 6054
  • 102 $0.0706
  • 250 $0.0681
  • 500 $0.0656
  • 1,000 $0.0631
  • 3,000 $0.0606
  • 6,000 $0.0581
$0.0581 / $0.0706 Buy Now
DISTI # 66385608
Verical Cap Ceramic 220pF 100V C0G 5% Pad SMD 1206 150°C T/R RoHS: Compliant Min Qty: 464 Package Multiple: 1 Date Code: 2245 Americas - 2965
  • 464 $0.1100
$0.1100 Buy Now
DISTI # VJ1206A221JXBMT
Avnet Abacus VJ1206A221JXBMT00 (Alt: VJ1206A221JXBMT) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # VJ1206A221JXBMT
Chip One Stop Passives RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 2965
  • 5 $0.1100
  • 50 $0.0774
$0.0774 / $0.1100 Buy Now

Part Details for VJ1206A221JXBMT

VJ1206A221JXBMT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

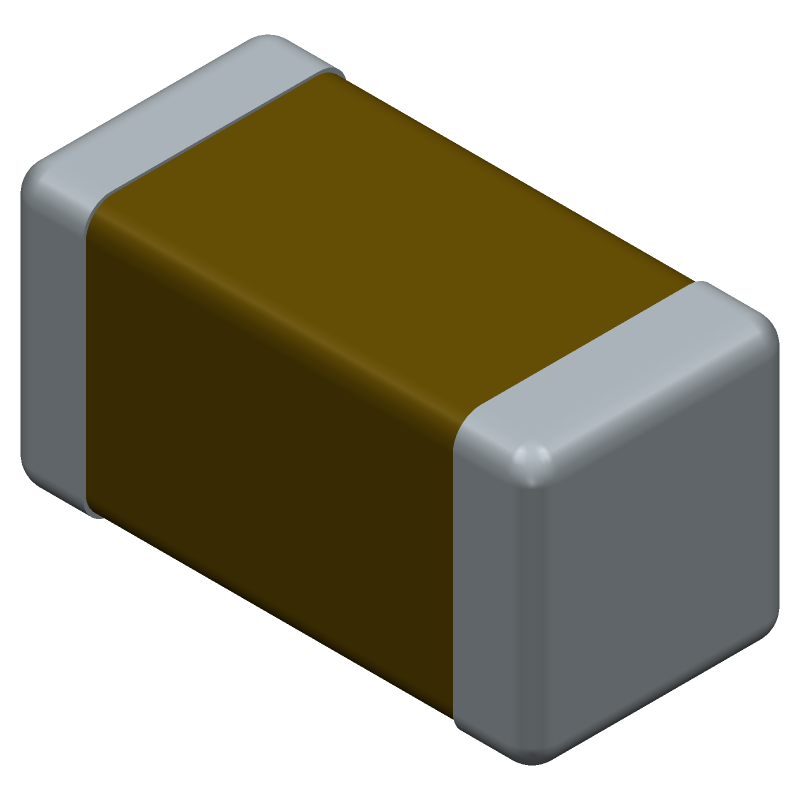

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

VJ1206A221JXBMT Part Data Attributes

Parametric Data
VJ1206A221JXBMT Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
VJ1206A221JXBMT Vishay Intertechnologies Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1206, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 10 Weeks
Samacsys Manufacturer Vishay
Capacitance 0.00022 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 1.7 mm
JESD-609 Code e3
Length 3.2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 100 V
Size Code 1206
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 1.6 mm

Alternate Parts for VJ1206A221JXBMT

This table gives cross-reference parts and alternative options found for VJ1206A221JXBMT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VJ1206A221JXBMT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
VJ1206A221JXBMR Vishay Intertechnologies Check for Price Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1206, CHIP VJ1206A221JXBMT vs VJ1206A221JXBMR
VJ1206A221JXBMT Vishay Vitramon Check for Price Capacitor, Ceramic, Chip, General Purpose, 220pF, 100V, ±5%, C0G/NP0, 1206 (3216 mm), 0.067"T, -55º ~ +125ºC, 7" Reel/Plastic Tape VJ1206A221JXBMT vs VJ1206A221JXBMT
VJ1206A221JXBAT Vishay Vitramon Check for Price Capacitor, Ceramic, Chip, General Purpose, 220pF, 100V, ±5%, C0G/NP0, 1206 (3216 mm), 0.067"T, -55º ~ +125ºC, 7" Reel/Plastic Tape VJ1206A221JXBMT vs VJ1206A221JXBAT
VJ1206A221JXBAR Vishay Vitramon Check for Price Capacitor, Ceramic, Chip, General Purpose, 220pF, 100V, ±5%, C0G/NP0, 1206 (3216 mm), 0.067"T, -55º ~ +125ºC, 13" Reel/Plastic Tape VJ1206A221JXBMT vs VJ1206A221JXBAR

VJ1206A221JXBMT Related Parts

VJ1206A221JXBMT Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for VJ1206A221JXBMT is 260°C (500°F) for 10 seconds or less, with a peak temperature of 240°C (464°F) for 5 seconds or less.

  • Yes, VJ1206A221JXBMT is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, cadmium, and others above the specified limits.

  • The MSL of VJ1206A221JXBMT is 1, which means it can be exposed to a maximum of 30°C/85% relative humidity for 168 hours without being damaged.

  • Yes, VJ1206A221JXBMT is designed to withstand high-vibration environments, with a vibration test rating of 10-2000 Hz, 10 G peak acceleration, and 3 mm peak-to-peak amplitude.

  • The ESR of VJ1206A221JXBMT is 0.15 ohms maximum at 100 kHz and 20°C.
