Capacitors / Ceramic Capacitors / VJ1206A221JXBCW1BC
Datasheets
VJ1206A221JXBCW1BC by:

Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for VJ1206A221JXBCW1BC by Vishay Intertechnologies

Results Overview of VJ1206A221JXBCW1BC by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Telecommunications Renewable Energy Automotive

VJ1206A221JXBCW1BC Information

VJ1206A221JXBCW1BC by Vishay Intertechnologies is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for VJ1206A221JXBCW1BC

Part # Distributor Description Stock Price Buy
DISTI # 58J5213
Newark Capacitor Ceramic 220Pf 100V, C0G, 5%, 1206, Capacitance:220Pf, Voltage(Dc):100V, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Length:3.2Mm, Product Width:1.6Mmrohs Compliant: Yes |Vishay VJ1206A221JXBCW1BC RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.1230
  • 5,000 $0.1090
  • 10,000 $0.0890
  • 20,000 $0.0770
  • 30,000 $0.0720
  • 50,000 $0.0630
$0.0630 / $0.1230 Buy Now
DISTI # 88M8686
Newark Capacitor Ceramic 220Pf 100V, C0G, 5%, 1206, Capacitance:220Pf, Voltage(Dc):100V, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Length:3.2Mm, Product Width:1.6Mmrohs Compliant: Yes |Vishay VJ1206A221JXBCW1BC RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1,000 $0.1150
$0.1150 Buy Now
DISTI # 62AC8604
Newark Cap, 220Pf, 100V, 5%, C0G/Np0, 1206, Capacitance:220Pf, Voltage Rating:100V, Ceramic Capacitor Case:1206 [3216 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:Vj Series, Operating Temperature Rohs Compliant: Yes |Vishay VJ1206A221JXBCW1BC RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 10 $0.1910
  • 25 $0.1670
  • 50 $0.1430
  • 100 $0.1190
$0.1190 / $0.1910 Buy Now
DISTI # VJ1206A221JXBCW1BC
Avnet Americas VJ1206A221JXBCW1BC - Tape and Reel (Alt: VJ1206A221JXBCW1BC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 18 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.0437
  • 8,000 $0.0435
  • 16,000 $0.0433
  • 24,000 $0.0430
  • 32,000 $0.0428
$0.0428 / $0.0437 Buy Now
DISTI # 77-VJ1206A221JXBCBC
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 1206 220pF 100volts C0G 5% RoHS: Compliant 165
  • 1 $0.3600
  • 10 $0.1860
  • 100 $0.1230
  • 500 $0.0980
  • 1,000 $0.0890
  • 4,000 $0.0790
$0.0790 / $0.3600 Buy Now
DISTI # SMC-VJ1206A221JXBCW1BC
Sensible Micro Corporation XCAP R= 220PF 100V 5% NPO 1206 S RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1322 Container: Tape & Reel 11
  • 100 $0.0234
  • 500 $0.0228
  • 1,000 $0.0216
$0.0216 / $0.0234 RFQ
DISTI # VJ1206A221JXBCW1BC
Avnet Abacus VJ1206A221JXBCW1BC - Tape and Reel (Alt: VJ1206A221JXBCW1BC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 21 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for VJ1206A221JXBCW1BC

VJ1206A221JXBCW1BC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

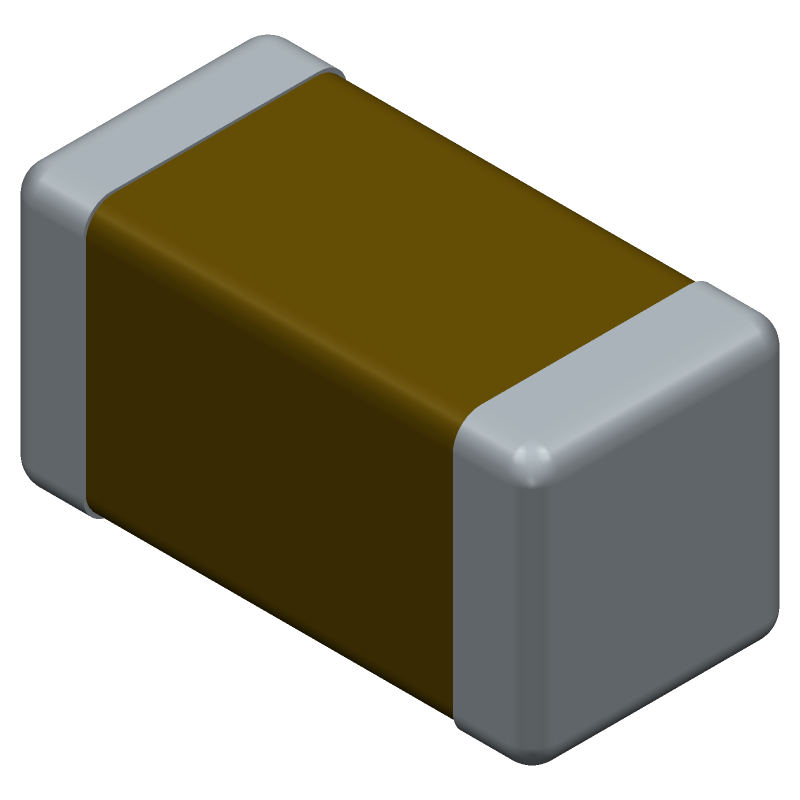

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

VJ1206A221JXBCW1BC Part Data Attributes

Parametric Data
VJ1206A221JXBCW1BC Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
VJ1206A221JXBCW1BC Vishay Intertechnologies Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP, HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 18 Weeks
Samacsys Manufacturer Vishay
Capacitance 0.00022 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.95 mm
JESD-609 Code e3
Length 3.2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 100 V
Size Code 1206
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 1.6 mm

Alternate Parts for VJ1206A221JXBCW1BC

This table gives cross-reference parts and alternative options found for VJ1206A221JXBCW1BC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VJ1206A221JXBCW1BC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
VJ1206A221JXBPW1BC Vishay Intertechnologies Check for Price Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT VJ1206A221JXBCW1BC vs VJ1206A221JXBPW1BC
C1206N221J101RCO Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.00022uF, 1206, VJ1206A221JXBCW1BC vs C1206N221J101RCO
C1206N221J101RCX Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.00022uF, 1206, VJ1206A221JXBCW1BC vs C1206N221J101RCX
C1206N221J101BCO Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.00022uF, 1206, VJ1206A221JXBCW1BC vs C1206N221J101BCO
C1206N221J101BCX Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.00022uF, 1206, VJ1206A221JXBCW1BC vs C1206N221J101BCX
C1206N221J101BC Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.00022uF, 1206, VJ1206A221JXBCW1BC vs C1206N221J101BC
C1206N221J101RC Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.00022uF, 1206, VJ1206A221JXBCW1BC vs C1206N221J101RC
C1206N221J101TC Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.00022uF, 1206, VJ1206A221JXBCW1BC vs C1206N221J101TC
C1206N221J101TCO Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.00022uF, 1206, VJ1206A221JXBCW1BC vs C1206N221J101TCO

VJ1206A221JXBCW1BC Related Parts

VJ1206A221JXBCW1BC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the VJ1206A221JXBCW1BC capacitor is between 260°C to 280°C for a maximum of 10 seconds.

  • Yes, the VJ1206A221JXBCW1BC capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The maximum operating voltage derating for the VJ1206A221JXBCW1BC capacitor is 80% of the rated voltage at 125°C, and 90% of the rated voltage at 85°C.

  • Yes, the VJ1206A221JXBCW1BC capacitor meets the requirements for automotive applications, including AEC-Q200 qualification and compliance with RoHS and REACH regulations.

  • The VJ1206A221JXBCW1BC capacitor has an MSL rating of 1, which means it can withstand a maximum of 30 days at 30°C and 60% relative humidity before soldering.
