Capacitors / Fixed Capacitors / VJ1206A220JXACW1BC
Datasheets
VJ1206A220JXACW1BC by:

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 1206, CHIP

Part Details for VJ1206A220JXACW1BC by Vishay Intertechnologies

Results Overview of VJ1206A220JXACW1BC by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Telecommunications Renewable Energy Automotive

VJ1206A220JXACW1BC Information

VJ1206A220JXACW1BC by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for VJ1206A220JXACW1BC

Part # Distributor Description Stock Price Buy
DISTI # 62AC8599
Newark Cap, 22Pf, 50V, 5%, C0G/Np0, 1206, Capacitance:22Pf, Voltage Rating:50V, Ceramic Capacitor Case:1206 [3216 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:Vj Series, Operating Temperature Rohs Compliant: Yes |Vishay VJ1206A220JXACW1BC RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2559
  • 10 $0.1210
  • 25 $0.1080
  • 50 $0.0940
  • 100 $0.0810
  • 250 $0.0710
  • 500 $0.0620
  • 1,000 $0.0520
$0.0520 / $0.1210 Buy Now
DISTI # 58J5171
Newark Ceramic Capacitor 22Pf 50V, C0G, 5%, 1206, Full Reel, Capacitance:22Pf, Voltage(Dc):50V, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Length:3.2Mm Rohs Compliant: Yes |Vishay VJ1206A220JXACW1BC RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.0850
  • 5,000 $0.0760
  • 10,000 $0.0620
  • 20,000 $0.0540
  • 30,000 $0.0500
  • 50,000 $0.0440
$0.0440 / $0.0850 Buy Now
DISTI # VJ1206A220JXACW1BC
Avnet Americas VJ1206A220JXACW1BC - Tape and Reel (Alt: VJ1206A220JXACW1BC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 21 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.0284
  • 8,000 $0.0279
  • 16,000 $0.0275
  • 24,000 $0.0270
  • 32,000 $0.0262
$0.0262 / $0.0284 Buy Now
DISTI # 77-VJ1206A220JXACBC
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 1206 22pF 50volts C0G 5% RoHS: Compliant 5827
  • 1 $0.2200
  • 10 $0.1250
  • 100 $0.0770
  • 500 $0.0660
  • 1,000 $0.0520
  • 4,000 $0.0440
  • 8,000 $0.0410
  • 48,000 $0.0360
$0.0360 / $0.2200 Buy Now
DISTI # V72:2272_09202564
Arrow Electronics Cap Ceramic 22pF 50V C0G 5% Pad SMD 1206 125°C T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks Date Code: 1843 Container: Cut Strips Americas - 4387
  • 1 $0.0451
  • 10 $0.0424
  • 25 $0.0398
  • 100 $0.0371
  • 250 $0.0345
  • 500 $0.0318
  • 1,000 $0.0291
  • 3,000 $0.0265
$0.0265 / $0.0451 Buy Now
DISTI # 31047429
Verical Cap Ceramic 22pF 50V C0G 5% Pad SMD 1206 125°C T/R RoHS: Compliant Min Qty: 223 Package Multiple: 1 Date Code: 1843 Americas - 4387
  • 223 $0.0371
  • 250 $0.0345
  • 500 $0.0318
  • 1,000 $0.0291
  • 3,000 $0.0265
$0.0265 / $0.0371 Buy Now
Bristol Electronics   4000
RFQ
Quest Components   3200
  • 1 $0.2720
  • 47 $0.1224
  • 409 $0.0816
$0.0816 / $0.2720 Buy Now
DISTI # VJ1206A220JXACW1BC
TME Capacitor: ceramic, 22pF, 50V, C0G (NP0), ±5%, SMD, 1206 Min Qty: 1 4000
  • 1 $0.1237
  • 10 $0.0726
  • 50 $0.0541
  • 100 $0.0483
  • 500 $0.0385
  • 1,000 $0.0354
  • 4,000 $0.0308
  • 20,000 $0.0271
  • 40,000 $0.0260
  • 100,000 $0.0247
$0.0247 / $0.1237 Buy Now
DISTI # VJ1206A220JXACW1BC
Avnet Abacus VJ1206A220JXACW1BC - Tape and Reel (Alt: VJ1206A220JXACW1BC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Vyrian Capacitors 4920
RFQ

Part Details for VJ1206A220JXACW1BC

VJ1206A220JXACW1BC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

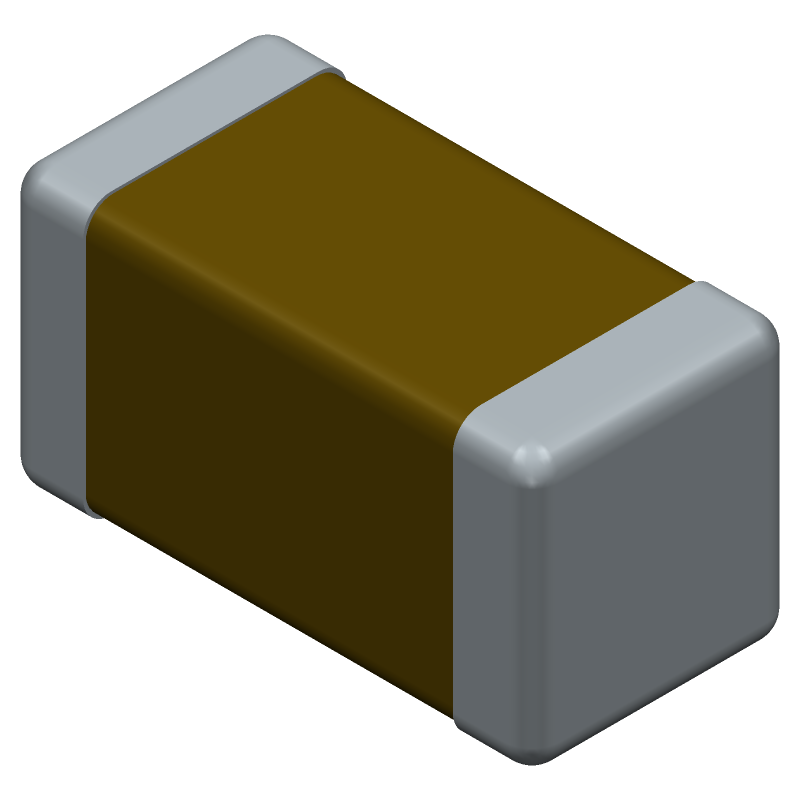

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

VJ1206A220JXACW1BC Part Data Attributes

Parametric Data
VJ1206A220JXACW1BC Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
VJ1206A220JXACW1BC Vishay Intertechnologies Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 1206, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP, HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 21 Weeks
Samacsys Manufacturer Vishay
Capacitance 0.000022 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.95 mm
JESD-609 Code e3
Length 3.2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 50 V
Size Code 1206
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 1.6 mm

Alternate Parts for VJ1206A220JXACW1BC

This table gives cross-reference parts and alternative options found for VJ1206A220JXACW1BC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VJ1206A220JXACW1BC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
VJ1206A220JXAPW1BC Vishay Intertechnologies $0.0843 Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT VJ1206A220JXACW1BC vs VJ1206A220JXAPW1BC

VJ1206A220JXACW1BC Related Parts

VJ1206A220JXACW1BC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the VJ1206A220JXACW1BC is between 260°C to 280°C for a maximum of 10 seconds.

  • Yes, the VJ1206A220JXACW1BC is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.

  • The maximum operating temperature range for the VJ1206A220JXACW1BC is -55°C to +125°C.

  • Yes, the VJ1206A220JXACW1BC is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The recommended storage temperature range for the VJ1206A220JXACW1BC is -55°C to +30°C.
