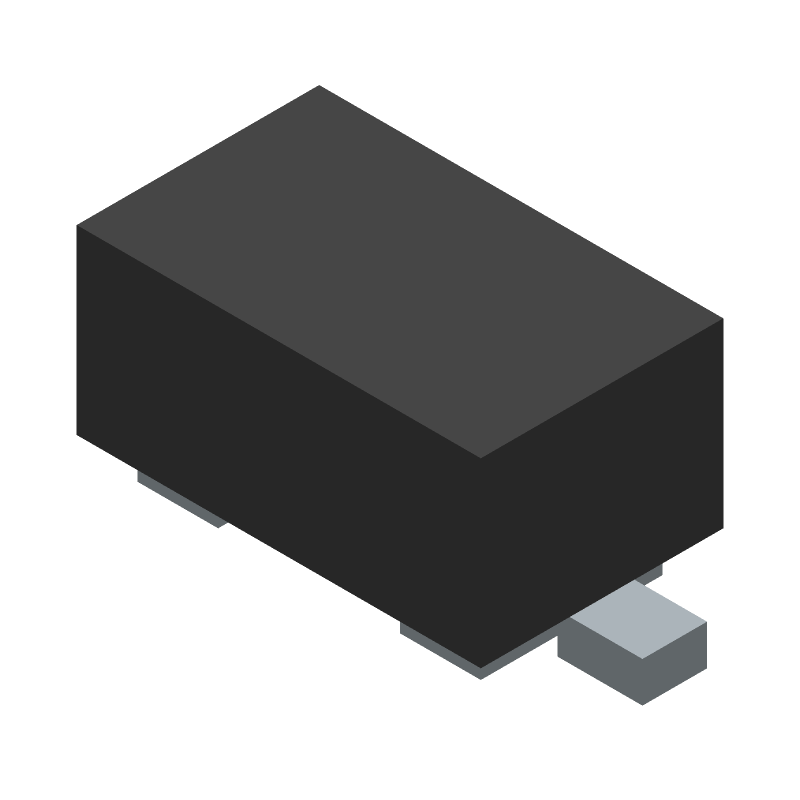

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VESD03A1B-HD1-GS08 by Vishay Intertechnologies
Results Overview of VESD03A1B-HD1-GS08 by Vishay Intertechnologies
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VESD03A1B-HD1-GS08 Information
VESD03A1B-HD1-GS08 by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VESD03A1B-HD1-GS08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69R7266
|
Newark | Diode, Esd Protection, Llp1006, Clamping Voltage Vc Max:9V, Diode Case Style:Llp1006, No. Of Pins:2Pins, Operating Voltage:-, Power Dissipation Pd:31W, Product Range:-, Automotive Qualification Standard:-, Breakdown Voltage Vbr:6V Rohs Compliant: Yes |Vishay VESD03A1B-HD1-GS08 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 11627 |
|
$0.0820 | Buy Now |
|
DISTI #
13P0385
|
Newark | Diode, Esd Protection, Llp1006, Full Reel, Clamping Voltage Vc Max:9V, Diode Case Style:Llp1006, No. Of Pins:2Pins, Operating Voltage:-, Power Dissipation Pd:31W, Product Range:-, Automotive Qualification Standard:- Rohs Compliant: Yes |Vishay VESD03A1B-HD1-GS08 RoHS: Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0650 / $0.1080 | Buy Now |
|
DISTI #
96AC4704
|
Newark | Esd Protection Diode Llp1006-E4-G Rohs Compliant: No |Vishay VESD03A1B-HD1-GS08 RoHS: Not Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0580 / $0.1020 | Buy Now |
|
DISTI #
69R7266
|
Avnet Americas | ESD PROTECTION DIODE LLP1006 - Product that comes on tape, but is not reeled (Alt: 69R7266) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 4 Days Container: Ammo Pack | 11627 Partner Stock |
|
$0.1270 / $0.3000 | Buy Now |
|
DISTI #
VESD03A1B-HD1-GS08
|
Avnet Americas | ESD PROTECTION DIODE LLP1006 - Tape and Reel (Alt: VESD03A1B-HD1-GS08) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0367 / $0.0374 | Buy Now |
|
DISTI #
78-VESD03A1B-HD1
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 3.3 Volt 3.5 Amp RoHS: Compliant | 13885 |
|
$0.0560 / $0.2900 | Buy Now |
|
|
Bristol Electronics | 23643 |
|
RFQ | ||
|
DISTI #
VESD03A1B-HD1-GS08
|
TTI | ESD Protection Diodes / TVS Diodes 3.3 Volt 3.5 Amp RoHS: Compliant pbFree: Pb-Free Min Qty: 8000 Package Multiple: 8000 Container: Reel |
Americas - 32000 In Stock |
|
$0.0550 / $0.0580 | Buy Now |
|
DISTI #
VESD03A1B-HD1-GS08
|
Avnet Asia | ESD PROTECTION DIODE LLP1006 (Alt: VESD03A1B-HD1-GS08) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 14 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
VESD03A1B-HD1-GS08
|
EBV Elektronik | ESD PROTECTION DIODE LLP1006 (Alt: VESD03A1B-HD1-GS08) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for VESD03A1B-HD1-GS08
VESD03A1B-HD1-GS08 CAD Models
VESD03A1B-HD1-GS08 Part Data Attributes
|
|
VESD03A1B-HD1-GS08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VESD03A1B-HD1-GS08
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 31W, 3.3V V(RWM), Unidirectional, 1 Element, Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ASYMMETRICAL | |
| Breakdown Voltage-Max | 6.6 V | |
| Breakdown Voltage-Min | 5 V | |
| Breakdown Voltage-Nom | 6 V | |
| Clamping Voltage-Max | 9 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-N2 | |
| JESD-609 Code | e4 | |
| Non-rep Peak Rev Power Dis-Max | 31 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-5 | |
| Rep Pk Reverse Voltage-Max | 3.3 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Test Voltage | 3.5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
