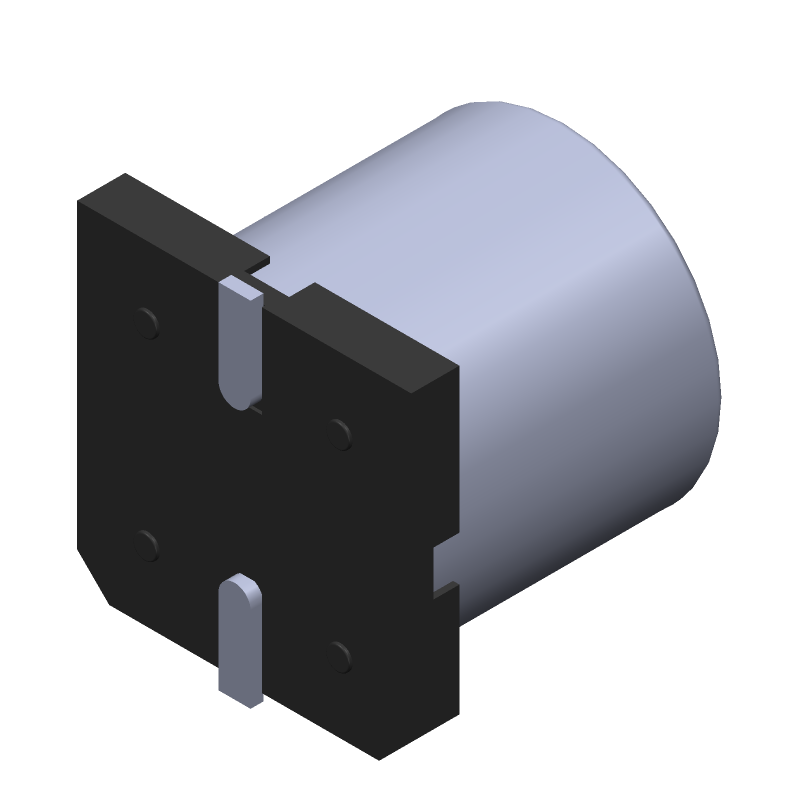

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VEJ221M1HTR-1010 by Lelon Electronics Corp
Results Overview of VEJ221M1HTR-1010 by Lelon Electronics Corp
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VEJ221M1HTR-1010 Information
VEJ221M1HTR-1010 by Lelon Electronics Corp is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| MC10105P | Rochester Electronics LLC | MC10105 - OR/NOR Gate, 10K Series, 3-Func, 3-Input, ECL, PDIP16 | |
| 10108777-10103ZLF | Amphenol Communications Solutions | PCI Express® GEN 3 Card Edge, Storage and Server Connector, Vertical, Through Hole, x16, 164 Positions, 1.00mm (0.039in) Pitch | |
| 10108777-10100TLF | Amphenol Communications Solutions | PCI Express® GEN 3 Card Edge, Storage and Server Connector, Vertical, Through Hole, x1, 36 Positions, 1.00mm (0.039in) Pitch |
Price & Stock for VEJ221M1HTR-1010
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
140-VEJ221M1HTR1010
|
Mouser Electronics | Aluminum Electrolytic Capacitors - SMD RoHS: Compliant | 0 |
|
$0.1160 / $0.1740 | Order Now |
|
|
Bristol Electronics | 500 |
|
RFQ | ||
|
|
Quest Components | 400 |
|
$0.2860 / $0.5720 | Buy Now |
Part Details for VEJ221M1HTR-1010
VEJ221M1HTR-1010 CAD Models
VEJ221M1HTR-1010 Part Data Attributes
|
|
VEJ221M1HTR-1010
Lelon Electronics Corp
Buy Now
Datasheet
|
Compare Parts:
VEJ221M1HTR-1010
Lelon Electronics Corp
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 4141, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LELON ELECTRONICS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Samacsys Manufacturer | Lelon | |
| Capacitance | 220 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 10 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| Height | 10 mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.11 mA | |
| Length | 10.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 15 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 330 mA | |
| Size Code | 4141 | |
| Surface Mount | YES | |
| Tan Delta | 0.14 | |
| Terminal Finish | MATTE TIN | |
| Terminal Shape | FLAT | |
| Width | 10.3 mm |
VEJ221M1HTR-1010 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile for the VEJ221M1HTR-1010 is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
-
Yes, the VEJ221M1HTR-1010 is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
-
The ESR of the VEJ221M1HTR-1010 is typically around 0.015 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
-
Yes, the VEJ221M1HTR-1010 is rated for operation up to 125°C, making it suitable for use in high-temperature applications.
-
The VEJ221M1HTR-1010 has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours without requiring baking before reflow soldering.
