VE-221M1HTR-1010 Information
VE-221M1HTR-1010 by Lelon Electronics Corp is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Part Details for VE-221M1HTR-1010

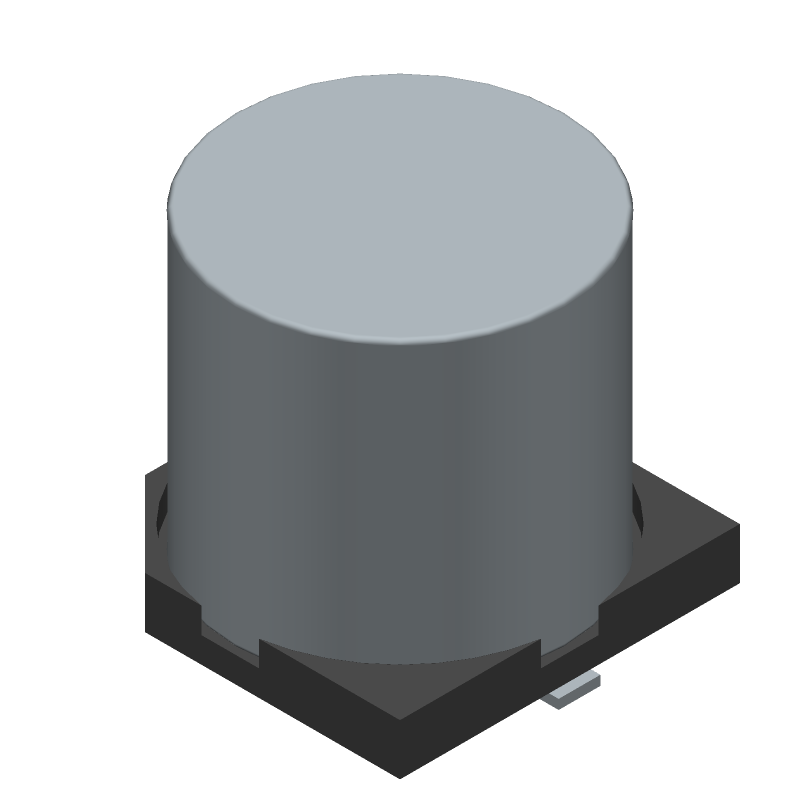

VE-221M1HTR-1010 CAD Models
VE-221M1HTR-1010 Part Data Attributes
|
|
VE-221M1HTR-1010
Lelon Electronics Corp
Buy Now
Datasheet
|
Compare Parts:
VE-221M1HTR-1010
Lelon Electronics Corp
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | LELON ELECTRONICS CORP | |
| Package Description | CHIP, ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Lelon | |
| Capacitance | 220 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Dielectric Material | ALUMINUM (WET) | |
| Height | 10 mm | |
| Leakage Current | 0.11 mA | |
| Length | 11 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Ripple Current | 320 mA | |
| Size Code | 4141 | |
| Surface Mount | YES | |
| Tan Delta | 0.1 | |
| Terminal Shape | FLAT | |
| Width | 10.4 mm |
