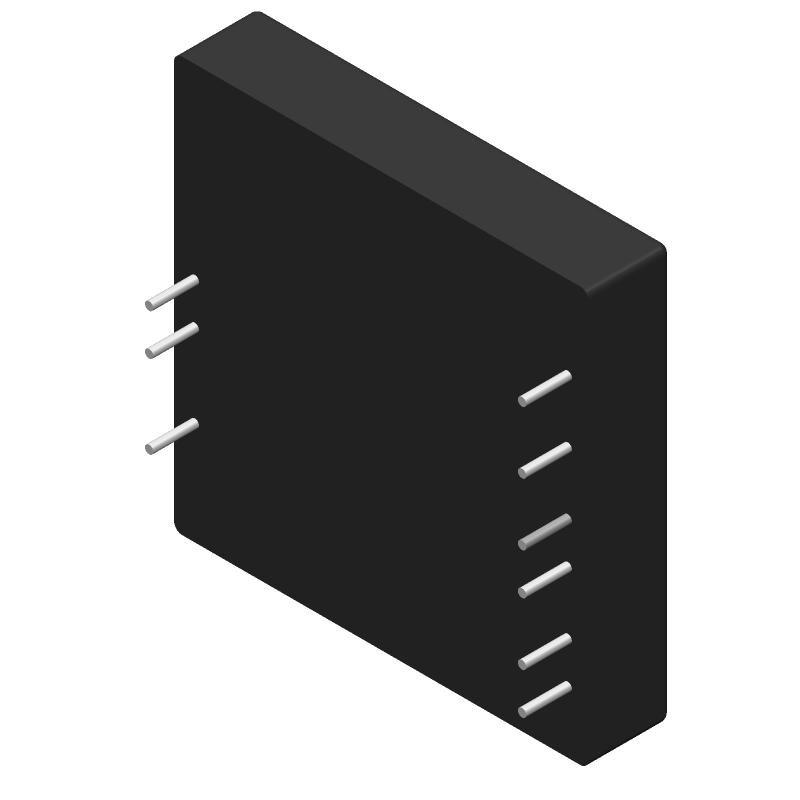

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VCD40-D12-S3R3 by CUI Inc
Results Overview of VCD40-D12-S3R3 by CUI Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
Aerospace and Defense
VCD40-D12-S3R3 Information
VCD40-D12-S3R3 by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for VCD40-D12-S3R3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
VCD40-D12-S3R3-ND
|
DigiKey | DC DC CONVERTER 3.3V 33W Min Qty: 42 Lead time: 29 Weeks Container: Tube | Temporarily Out of Stock |
|
$104.4783 | Buy Now |
|
DISTI #
490-VCD40-D12-S3R3
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole dc-dc isolated, 33 W, 9-18 Vdc input, 3.3 Vdc, 10000 mA, single regulated output, DIP | 0 |
|
$93.2300 | Order Now |
|
|
Onlinecomponents.com | 40 W, 2:1 Input Range, Single/Dual/Triple Regulated Output, 1500 Vdc Isolation, Dc-Dc Converter - 3.3 Vdc, 10 A, 33 W, 9~18 Vdc Input Range RoHS: Compliant | 0 |
|
$86.8400 / $252.6400 | Buy Now |
|
DISTI #
000000000006366629
|
Sager | Isolated DC/DC Converters - Through Hole dc-dc isolated, 33 W, 9-18 Vdc input, 3.3 Vdc, 10000 mA, single regulated output, DIP Min Qty: 1 | 0 |
|
$98.3100 / $114.7000 | Buy Now |
Part Details for VCD40-D12-S3R3
VCD40-D12-S3R3 CAD Models
VCD40-D12-S3R3 Part Data Attributes
|
|
VCD40-D12-S3R3
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
VCD40-D12-S3R3
CUI Inc
3.3 Vdc, 10 A, 33 W, 9~18 Vdc Input Range
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CUI INC | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | CUI Inc. | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-MDMA-P9 | |
| Length | 50.8 mm | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 9 | |
| Operating Temperature-Max | 60 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 3.63 V | |
| Output Voltage-Min | 2.97 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | METAL | |
| Package Code | DMA | |
| Package Shape | SQUARE | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 10.7 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 33 W | |
| Trim/Adjustable Output | YES | |
| Width | 50.8 mm |
